Home >> Kia >> 2020 >> Cadenza Technology >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart Key Unit >> Repair Procedures >> Removal >> Trunk Open Switch

Trunk Open Switch

  1. Disconnect the negative battery terminal.
  2. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

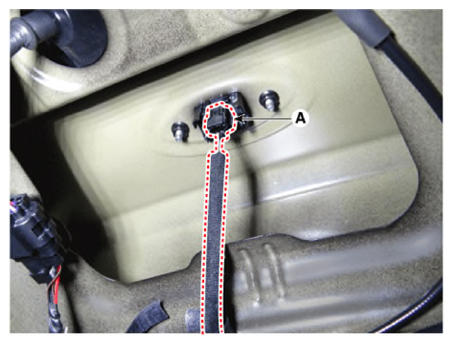

  3. Disconnect the trunk open switch connector (A).
    G13405563Courtesy of KIA MOTORS AMERICA, INC.
  4. Loosen the trunk open switch mounting nuts.

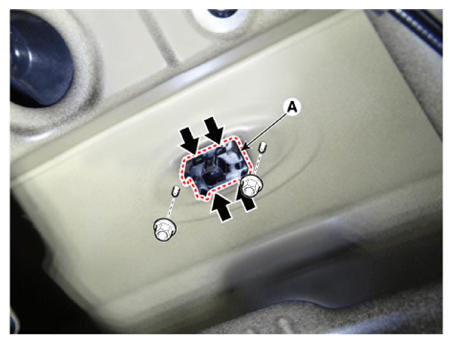

  5. Remove the trunk open switch (A) by pressing the hooks.
    G13405564Courtesy of KIA MOTORS AMERICA, INC.
