Smart Key Code Saving

  1. Connect the VCI II in driver side crash pad lower panel, turn the power on KDS.
  2. Select the vehicle model and then do "Smart key code saving".

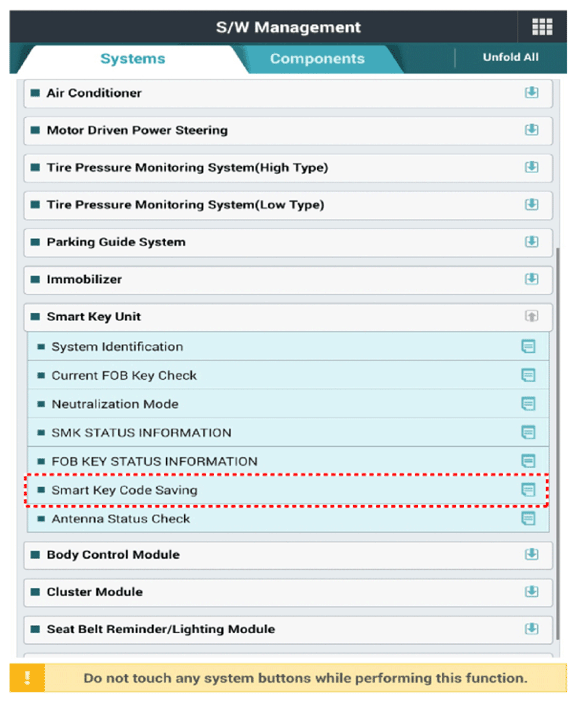

    G13405547Courtesy of KIA MOTORS AMERICA, INC.
  3. After selecting "Smart Key Code Saving" menu, push "OK" button, then the screen will be shown as below.
  4. After teaching new smart key, push "OK" button.
  5. Input the "Pin code" for first key teaching.

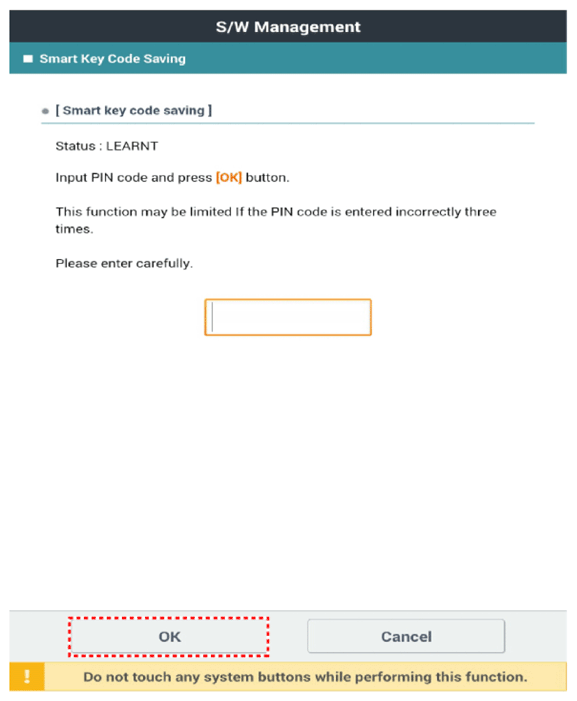

    G13405548Courtesy of KIA MOTORS AMERICA, INC.

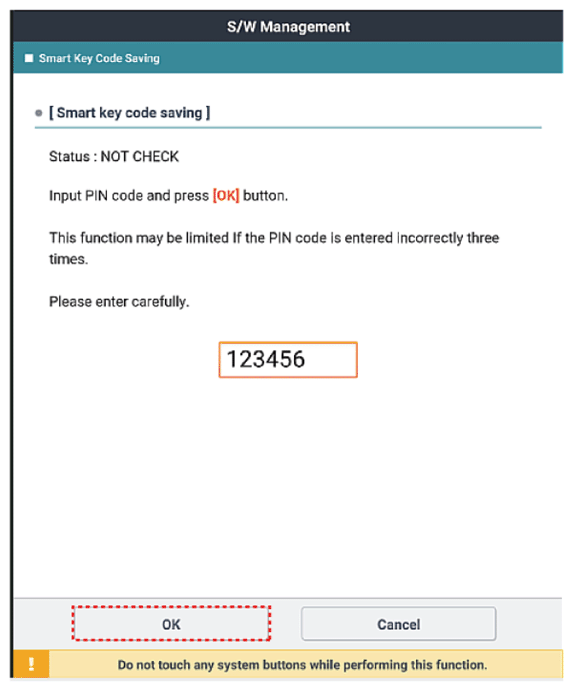

    G13405549Courtesy of KIA MOTORS AMERICA, INC.

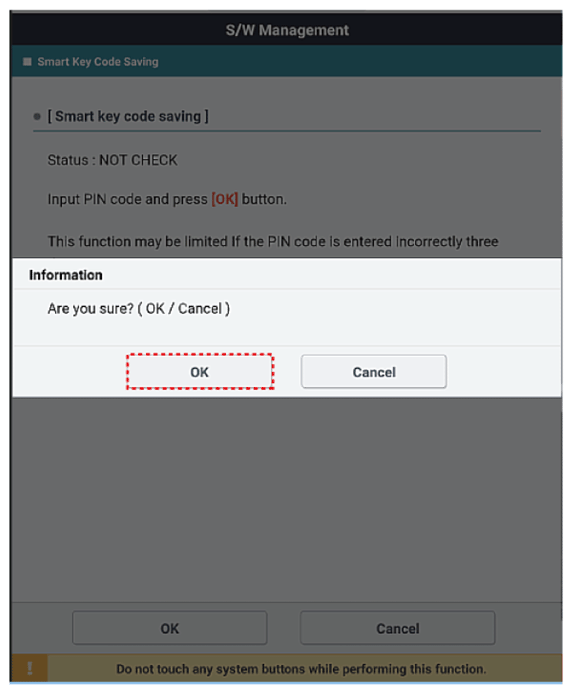

    G13405550Courtesy of KIA MOTORS AMERICA, INC.
  6. Confirm the message "First key teaching completed".

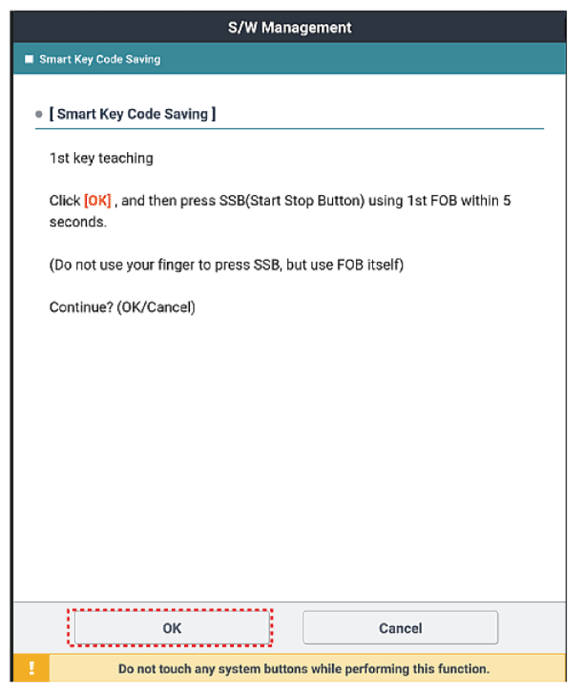

    G13405551Courtesy of KIA MOTORS AMERICA, INC.
  7. Press the SSB with smart key within 5 sec after pressing "OK".

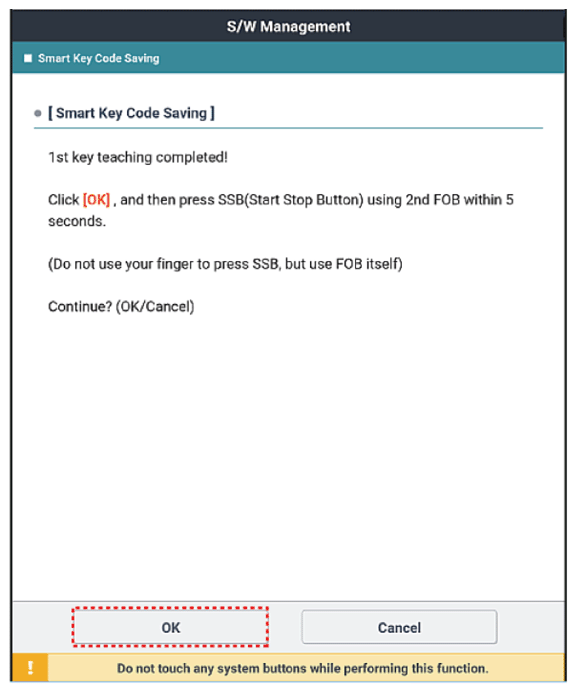

    G13405552Courtesy of KIA MOTORS AMERICA, INC.
  8. Confirm the message "Second key teaching completed".

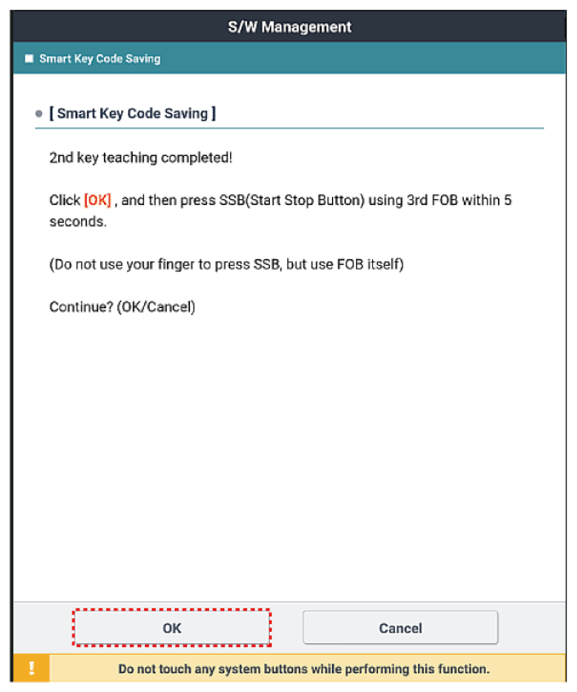

    G13405553Courtesy of KIA MOTORS AMERICA, INC.

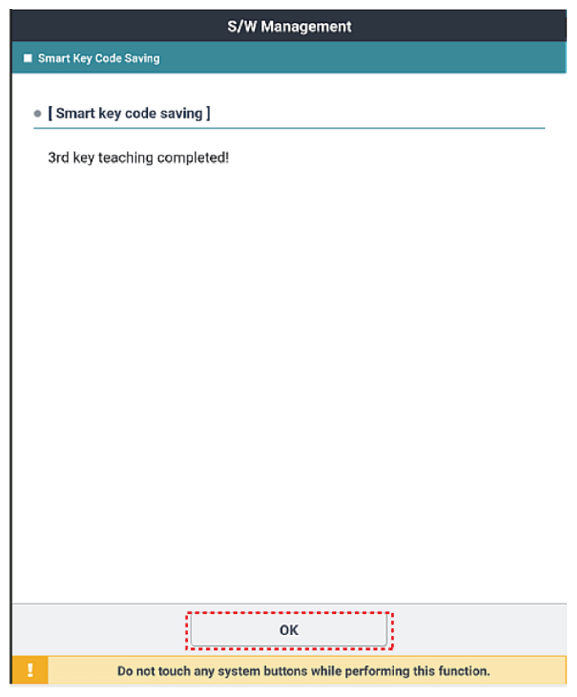

    G13405554Courtesy of KIA MOTORS AMERICA, INC.

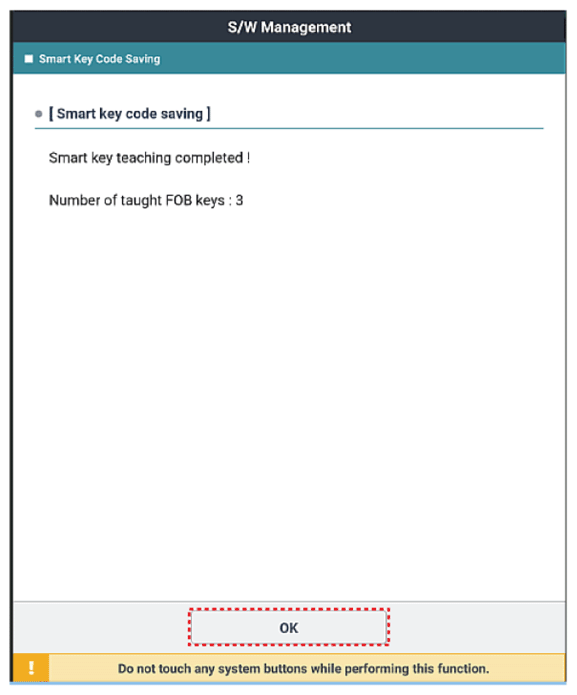

  9. Then the screen will be shown as below when key teaching process is completed.
    G13405555Courtesy of KIA MOTORS AMERICA, INC.
