Home >> Kia >> 2020 >> Cadenza Technology >> Repair and Diagnosis >> Electrical >> Horns >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

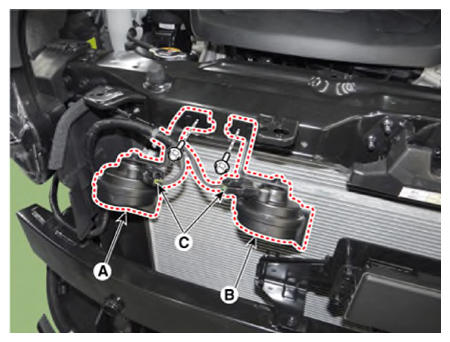

  3. Remove the high pitch horn (A) and low pitch horn (B) after disconnecting the horn connector (C) and loosening the mounting the bolt.
    G13405245Courtesy of KIA MOTORS AMERICA, INC.
