Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

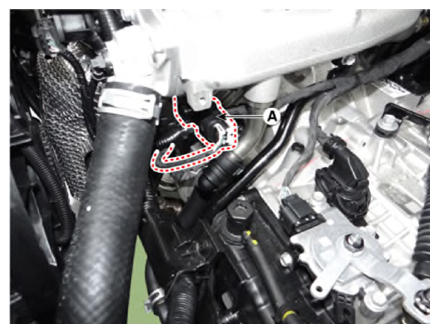

  3. Disconnect the crankshaft position sensor connector (A).
    G13403404Courtesy of KIA MOTORS AMERICA, INC.

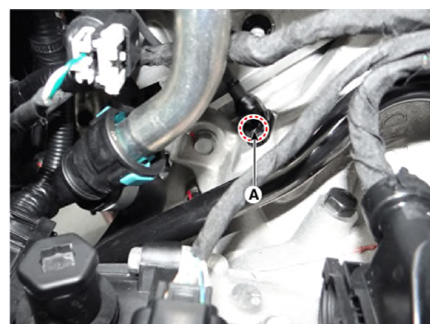

  4. Remove the mounting bolt (B), and then vertically remove the sensor from the transaxle housing.

    Crankshaft Position Sensor mounting bolt:

    6.8 → 9.8 Nm (0.7 - 1.0 kgf.m, 5.0 → 7.2 lb.ft)

    G13403405Courtesy of KIA MOTORS AMERICA, INC.
