Repair Procedures: Disassembly

  1. Disconnect the negative battery cable.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

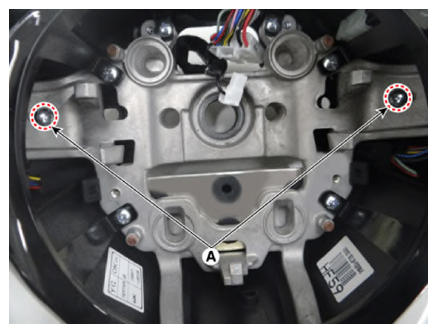

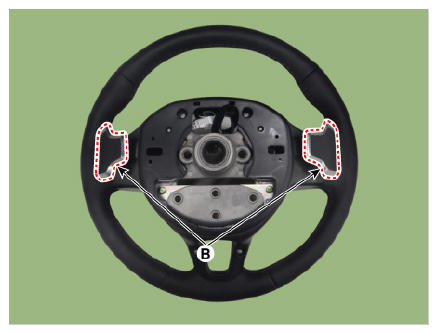

  3. Loosen the screw (A) and then remove the paddle shift switch (B).
    G13404256Courtesy of KIA MOTORS AMERICA, INC.
    G13404257Courtesy of KIA MOTORS AMERICA, INC.

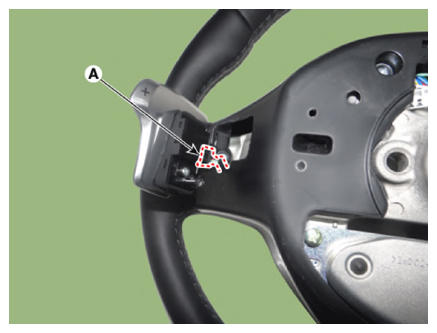

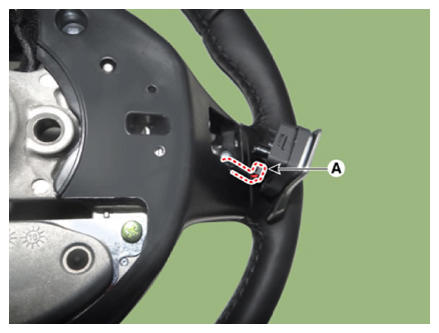

  4. Disconnect the paddle switch connector (A).
    G13404258Courtesy of KIA MOTORS AMERICA, INC.
    G13404259Courtesy of KIA MOTORS AMERICA, INC.

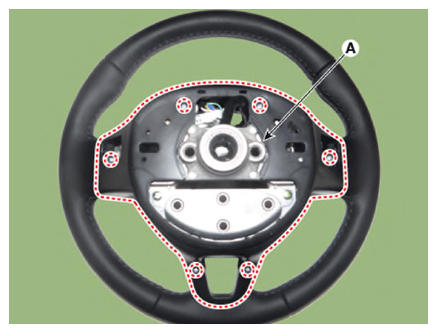

  5. Loosen the screw and then remove the steering back cover (A).
    G13404260Courtesy of KIA MOTORS AMERICA, INC.

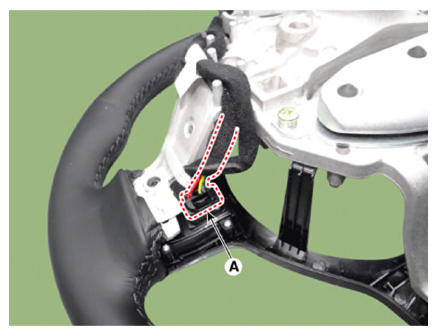

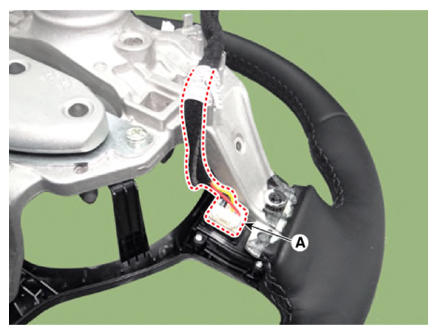

  6. Disconnect the connector (A) from the steering wheel remote control.
    G13404261Courtesy of KIA MOTORS AMERICA, INC.
    G13404262Courtesy of KIA MOTORS AMERICA, INC.

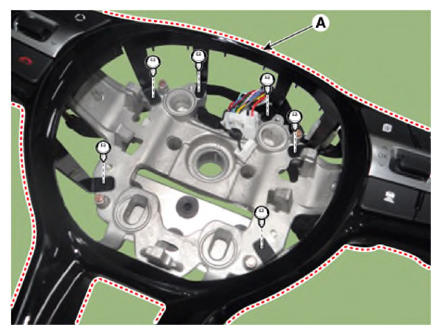

  7. Loosen the screw and then remove the steering wheel remote control assembly (A).
    G13404263Courtesy of KIA MOTORS AMERICA, INC.

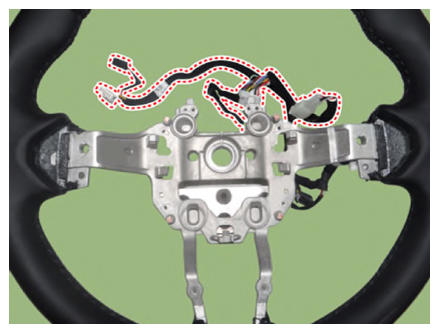

  8. Disconnect the heated steering wheel connector and then remove the heating wire.
    G13404264Courtesy of KIA MOTORS AMERICA, INC.

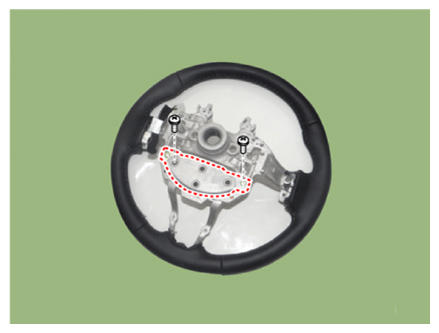

  9. Loosen the bolts and then remove the damper.
    G13404265Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: When replacing the steering wheel, be sure to reuse the damper. (The damper is not included in the steering wheel for A/S)

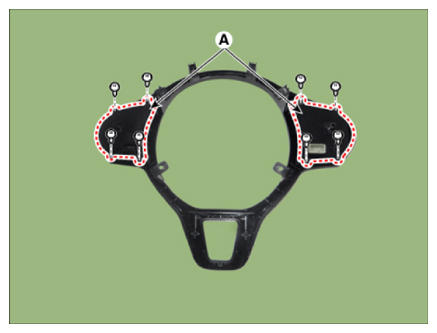

  10. Loosen the screw and then remove the steering wheel remote control (A).
    G13404266Courtesy of KIA MOTORS AMERICA, INC.
  11. Install in the reverse order of removal.
