Home >> Kia >> 2020 >> Cadenza Technology >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Control System >> Speed Sensor >> Repair Procedures >> Inspection

Repair Procedures: Inspection

  1. Switch "OFF" ignition.
  2. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

  3. Start the engine after connecting the battery.

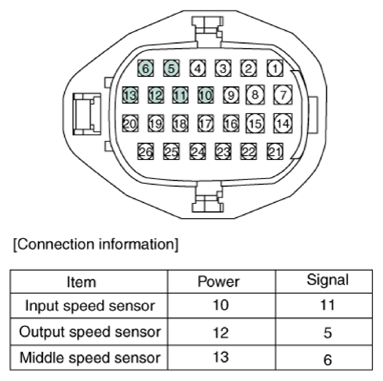

  4. Connect VMI to KDS and set up an oscilloscope as follow (4-channel).
    G13403647Courtesy of KIA MOTORS AMERICA, INC.

    [P range]

    G13403648Courtesy of KIA MOTORS AMERICA, INC.

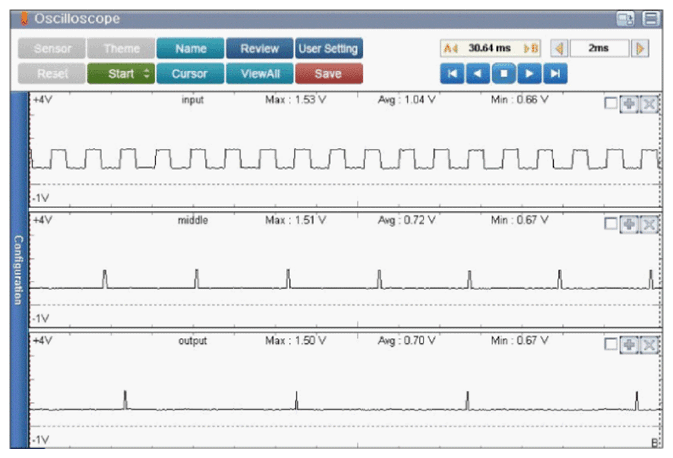

    [D range]

    G13403649Courtesy of KIA MOTORS AMERICA, INC.
