Disassembly And Reassembly

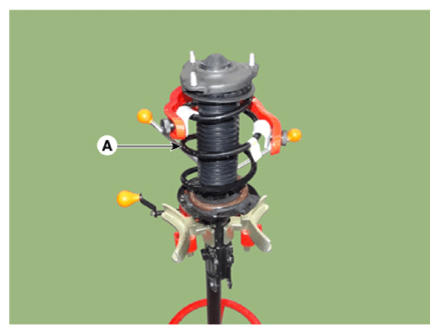

Using a strut spring compressor, compress the coil spring (A).

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- To prevent peeling the paint of coil spring, cover the coil spring with a thin cloth or hose before installing strut spring compressor.
- Set the compression position of strut spring compressor correctly for coil spring not to slant when compressing the coil spring.

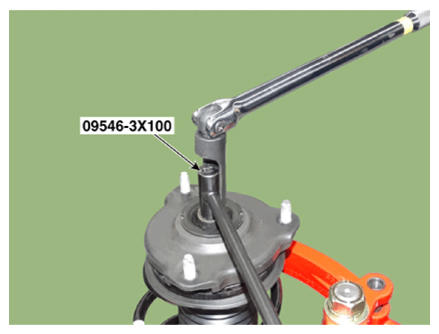

Using the SST (09546-3X100), loosen the self locking nut.
Tightening torque:

98.1 - 107.9 N.m (10.0 - 11.0 kgf.m, 72.3 - 79.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Do not reuse the self locking nut.

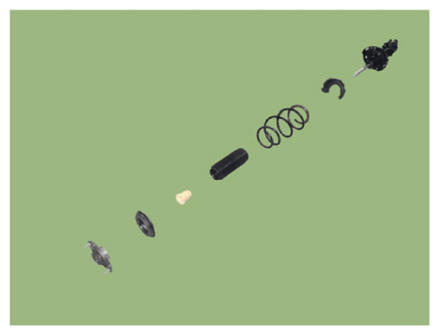

Remove the insulator, upper pad, bumper stopper, dust cover, coil spring and lower pad from the strut assembly.

Courtesy of KIA MOTORS AMERICA, INC.
Reassembly is the reverse of the disassembly.
