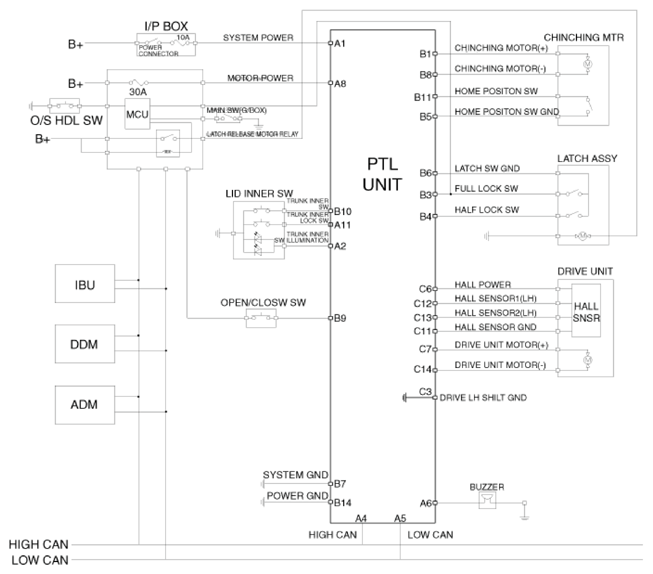

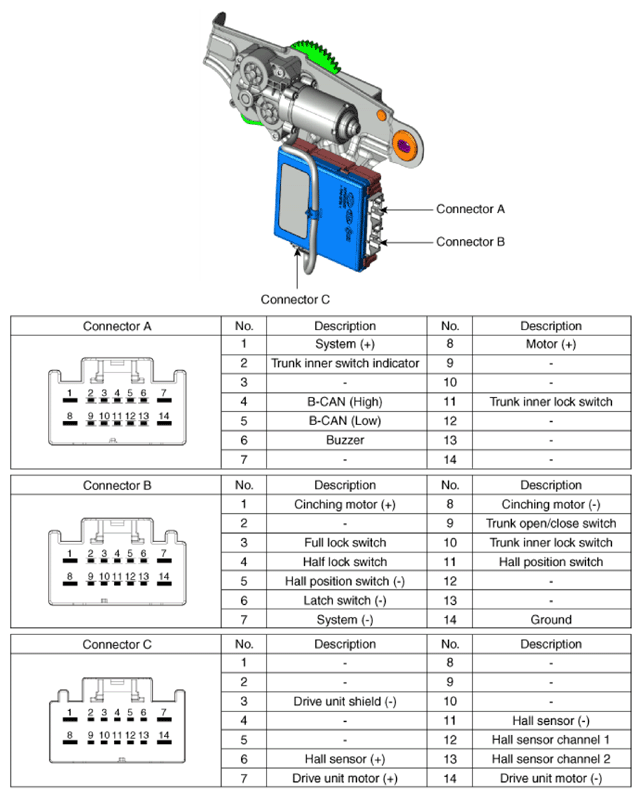

Home >> Kia >> 2020 >> K900 >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Power Trunk Module >> Power Trunk Module Drive Unit >> Schematic Diagrams >> Connector and Terminal function
