Neutralization Status Check

Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "Neutralization mode".

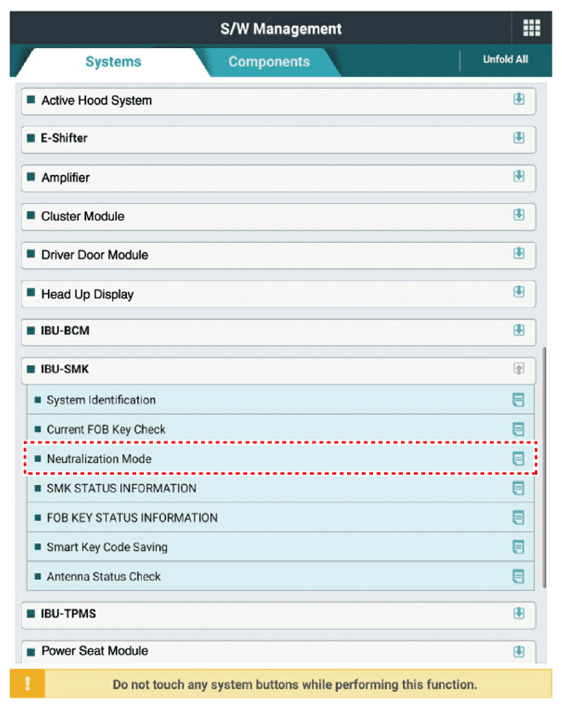

G13129149

Courtesy of KIA MOTORS AMERICA, INC.

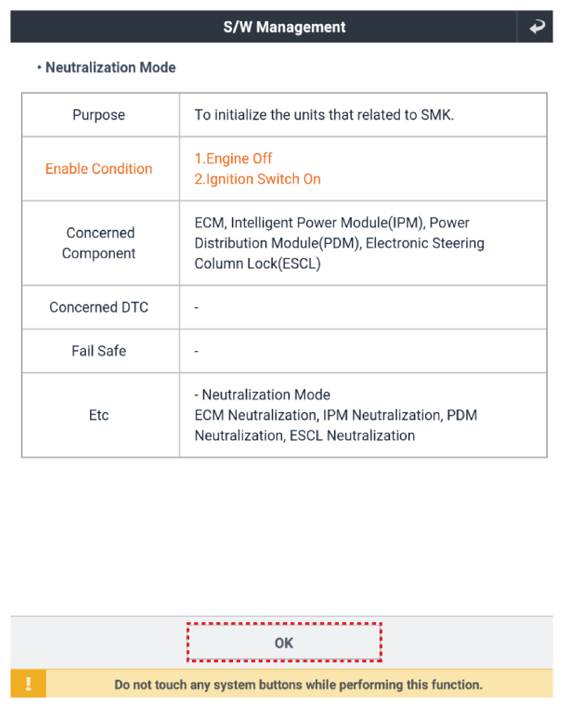

G13129150

Courtesy of KIA MOTORS AMERICA, INC.

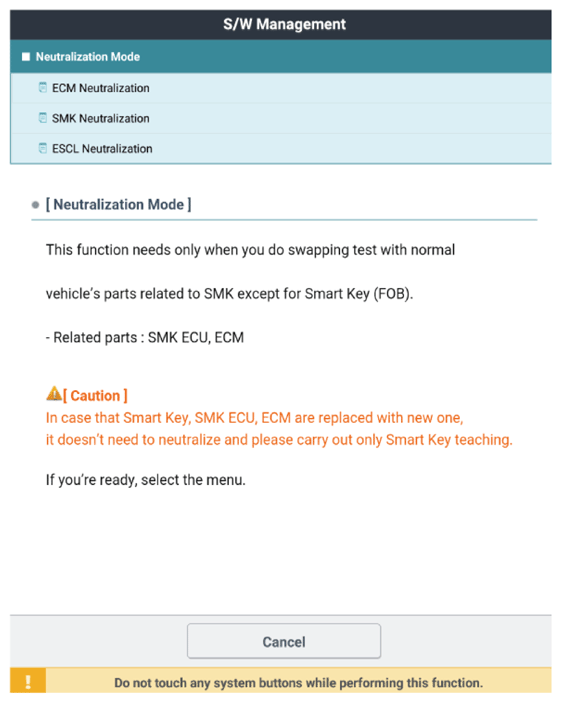

G13129151

Courtesy of KIA MOTORS AMERICA, INC.

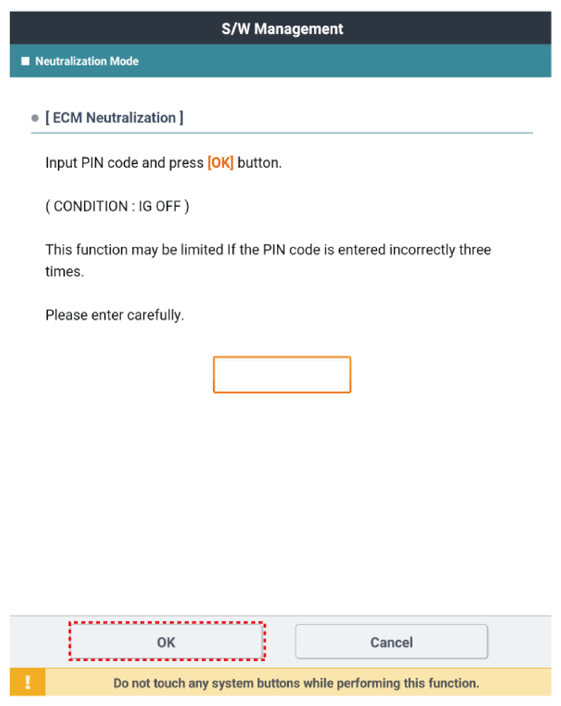

G13129152

Courtesy of KIA MOTORS AMERICA, INC.

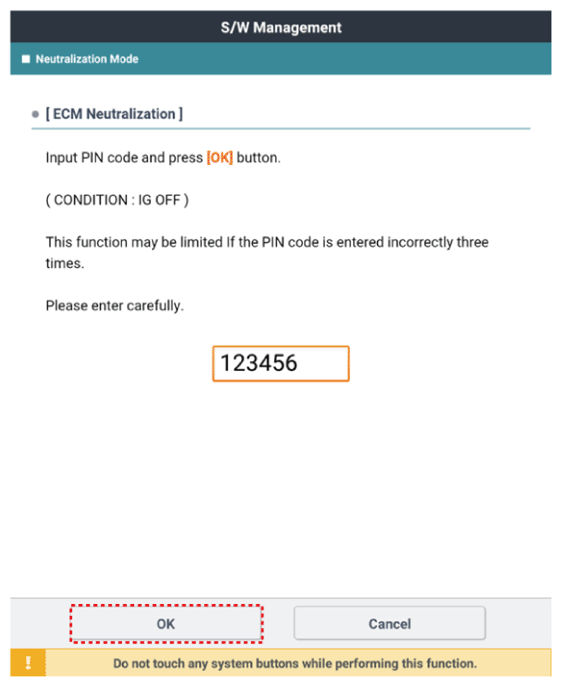

G13129153

Courtesy of KIA MOTORS AMERICA, INC.

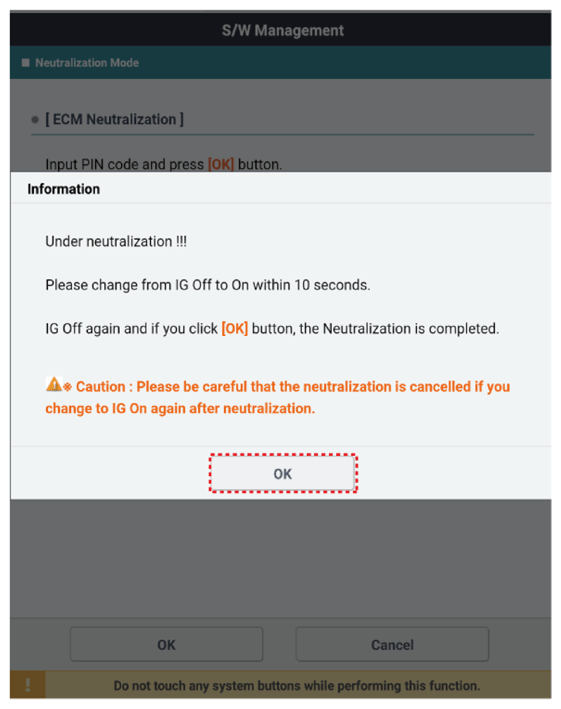

G13129154

Courtesy of KIA MOTORS AMERICA, INC.

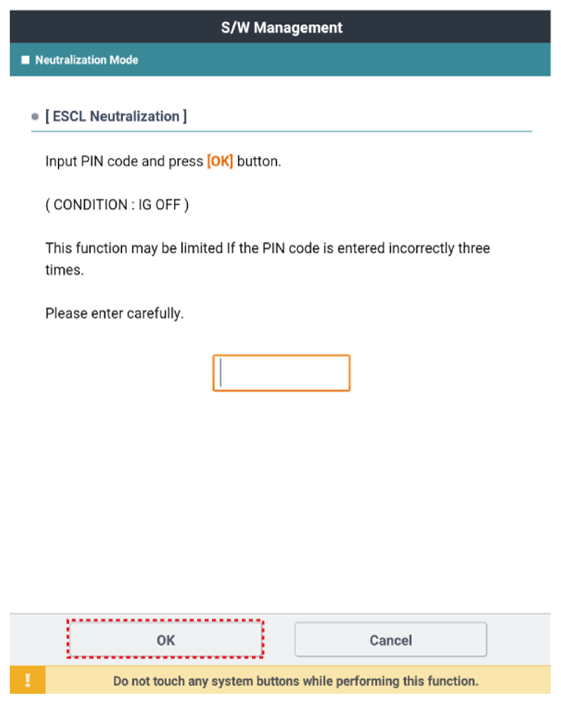

G13129155

Courtesy of KIA MOTORS AMERICA, INC.

G13129156

Courtesy of KIA MOTORS AMERICA, INC.

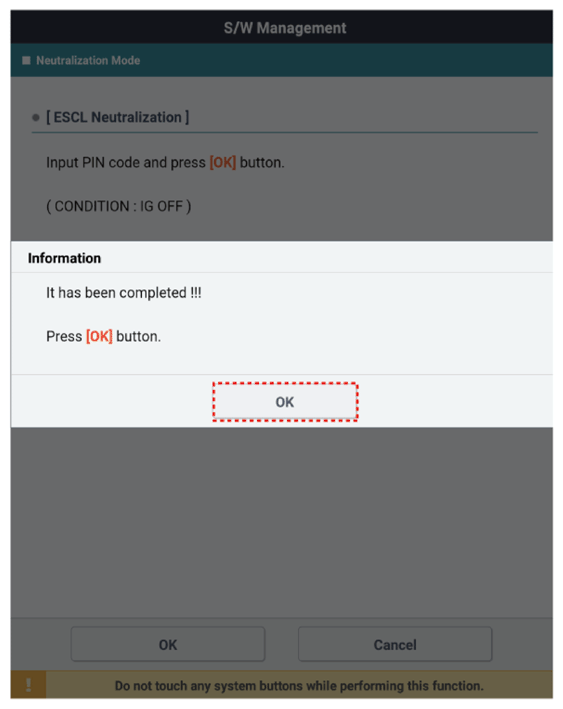

G13129157

Courtesy of KIA MOTORS AMERICA, INC.

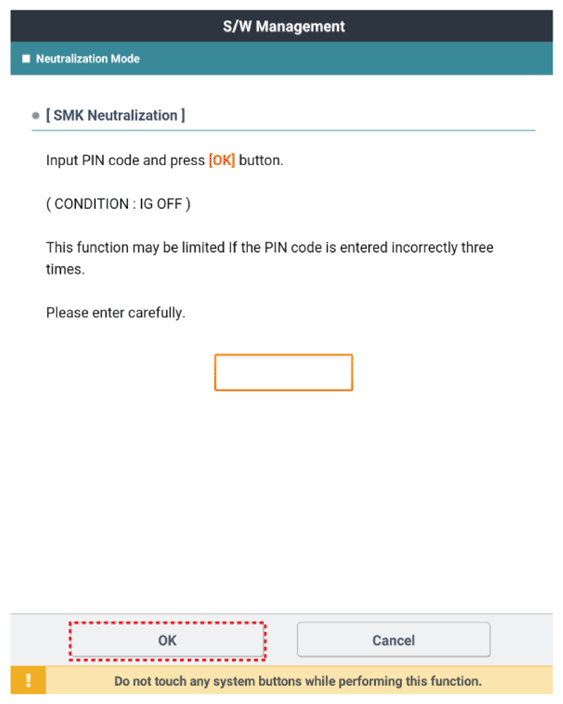

G13129158

Courtesy of KIA MOTORS AMERICA, INC.

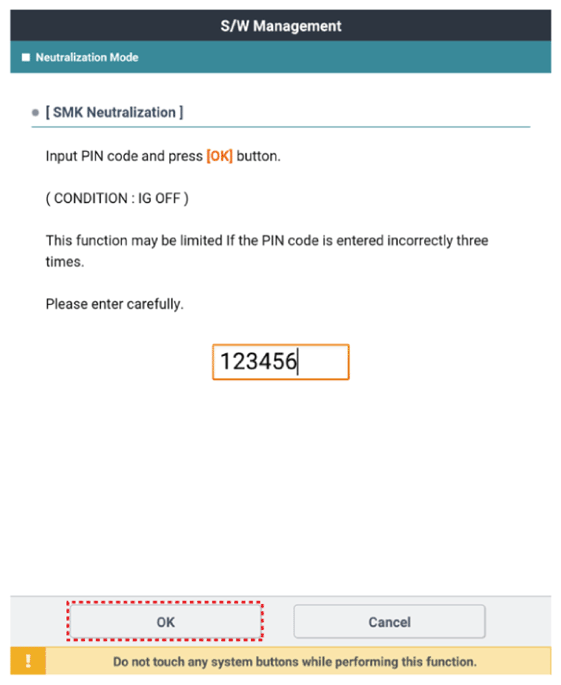

G13129159

Courtesy of KIA MOTORS AMERICA, INC.

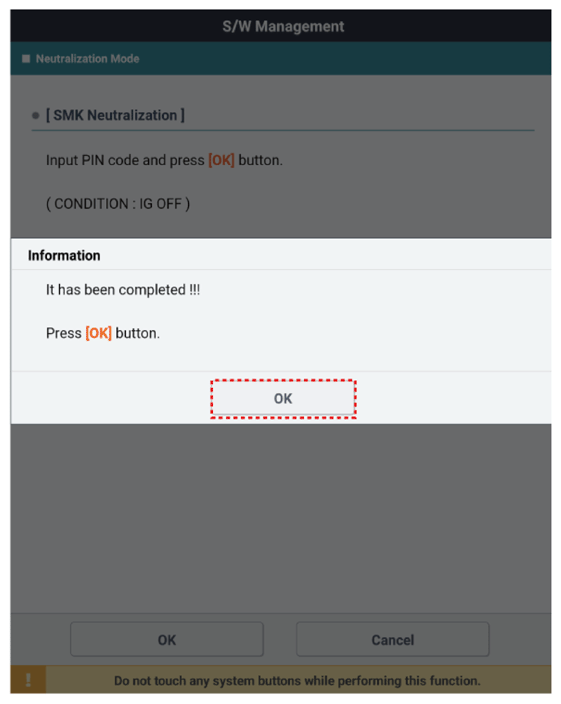

G13129160

Courtesy of KIA MOTORS AMERICA, INC.
