Repair Procedures: Removal: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the left side front wheel guard.

    (Refer to Body - "FRONT WHEEL GUARD ")

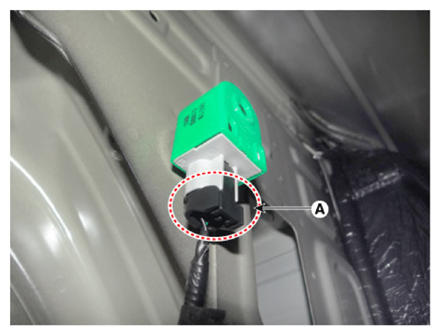

  3. Remove the buzzer after disconnecting the connector (A).
G13129173Courtesy of KIA MOTORS AMERICA, INC.
