Trunk Lid Handle

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid back panel.

    (Refer to Body - "TRUNK LID BACK PANEL ")

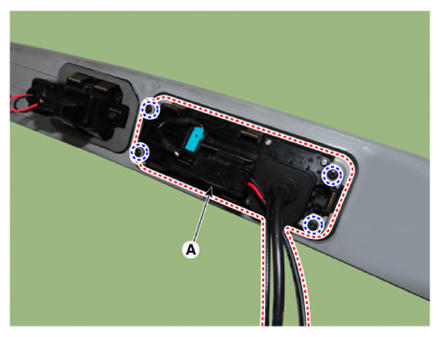

  3. Remove the rear view camera & trunk lid handle assembly (A) by loosening the screws.
    G13129174Courtesy of KIA MOTORS AMERICA, INC.

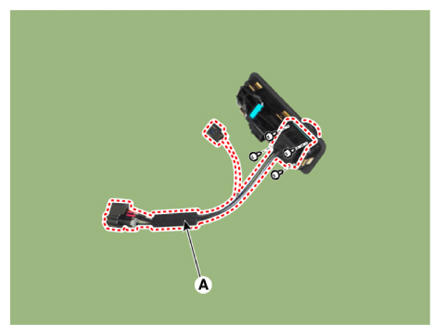

  4. Remove the rear view camera (A) from the trunk lid switch.
G13129175Courtesy of KIA MOTORS AMERICA, INC.
