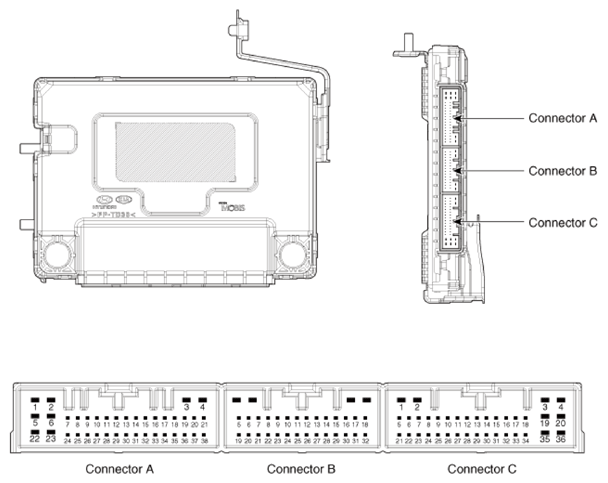

| 1 |
Curtain up_Output |
ECU ground |
- |
| 2 |
Curtain down_Output |
PDW-F power_Input |
ESCL (+)_Output |
| 3 |
Power_Ground |
ESCL (-)_Output |
Starter relay_Output |
| 4 |
PDW-R power_Output |
- |
IGN relay_Output |
| 5 |
Curtain power_Input |
PDW switch indicator_Output |
Immobilizer antenna power_output |
| 6 |
- |
Rear curtain hall sensor power_Output |
Immobilizer antenna ground_output |
| 7 |
- |
Rear curtain hall sensor power_Input |
Left side rear outside handle antenna (-) _Output |
| 8 |
P_CAN_Low |
Left side rear outside handle_Input |
Driver outside handle antenna (+)_Output |
| 9 |
P_CAN_High |
Right side rear outside handle_Input |
Interior antenna 1 (+)_Output |
| 10 |
- |
Wheel speed sensor_Input |
Interior antenna 3 (+)_Output |
| 11 |
B_CAN_Low |
- |
Trunk antenna (+)_Output |
| 12 |
B_CAN_High |
- |
Right side rear outside handle (-)_Output |
| 13 |
SSB switch 2_Input |
Assist seat belt indicator_Output |
Assist outside handle (+)_Output |
| 14 |
Driver outside handle_Input |
Rear center seat belt indicator_Output |
Immobilizer |
| 15 |
"P" position_Input |
- |
Bumper antenna (+)_Output |
| 16 |
- |
LFsuchON_output |
Interior antenna 2 (+)_Output |
| 17 |
- |
- |
IGN2_Input |
| 18 |
- |
- |
IGN1_Input |
| 19 |
- |
- |
IGN2 realay_Output |
| 20 |
- |
Puddle pocket lamp_output |
Battery (+) |
| 21 |
- |
Hall sensor ground |
Brake switch_Input |
| 22 |
- |
SSB ring illumination (+)_output |
Start feedback_Input |
| 23 |
- |
External buzzer_output |
Security indicator_Output |
| 24 |
LIN1 (PDW) |
SSB illumination (+)_output |
Driver outside handle antenna (-)_Output |
| 25 |
LIN2 (Safety ECU) |
- |
Interior antenna 1 (-)_Output |
| 26 |
LIN3 (Rain sensor) |
- |
Interior antenna 3 (-)_Output |
| 27 |
PDWpower_Input |
Right side rear seat belt indicator_Output |
Trunk antenna (-)_Output |
| 28 |
RPM_Input |
Left side rear seat belt indicator_Output |
ESCLCOM |
| 29 |
SSB switch 1_Input |
- |
Assist outside handle (-)_Output |
| 30 |
ESCL_unlockswitch_Input |
- |
ESCL Enable_Output |
| 31 |
Assist outside handle_Input |
- |
Bumper antenna (-)_Output |
| 32 |
PDWswitch_Input |
Rear curtain switch |
Interior antenna 2 (-)_Output |
| 33 |
Sunroof status_input |
|
ACC_Input |
| 34 |
- |
- |
| 35 |
- |
ACCrelay_Output |
| 36 |
- |
ECU battery (+) |
| 37 |
- |
|
| 38 |
- |
