Smart Key Code Saving

  1. Connect KDS VCI-II to the data link connector (16 pins) in driver side crash pad lower panel, turn KDS on.
  2. Select the vehicle model and then do "Smart key code saving".

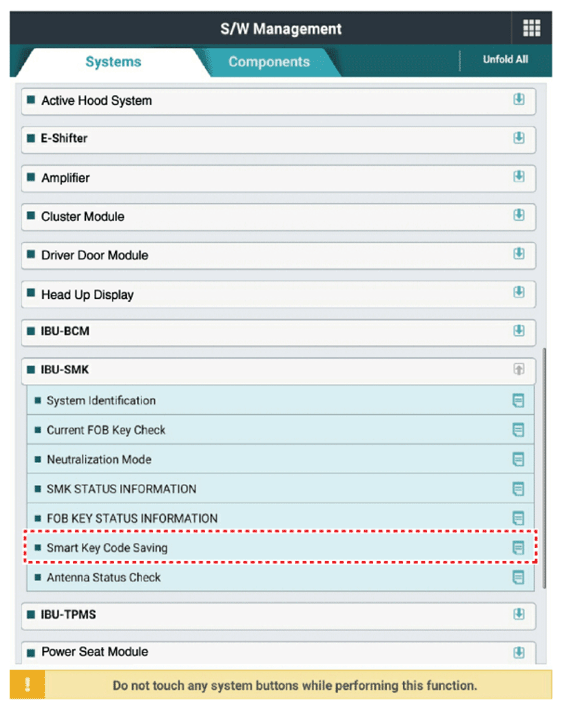

    G13129161Courtesy of KIA MOTORS AMERICA, INC.

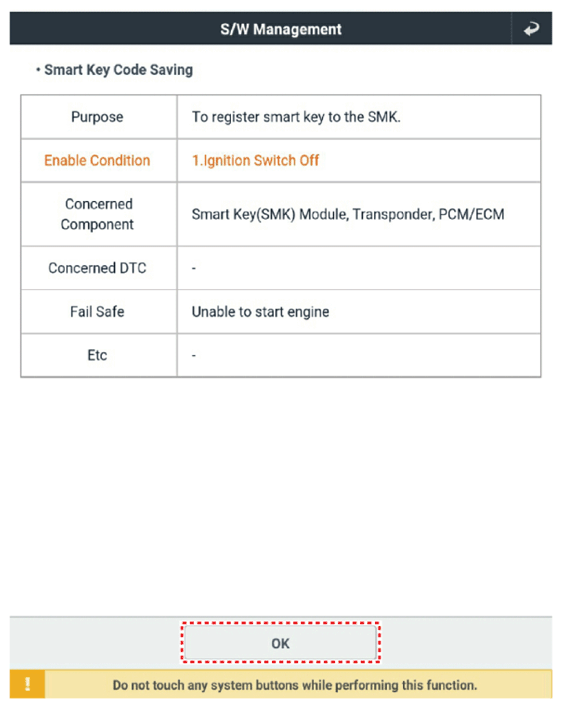

    G13129162Courtesy of KIA MOTORS AMERICA, INC.
  3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

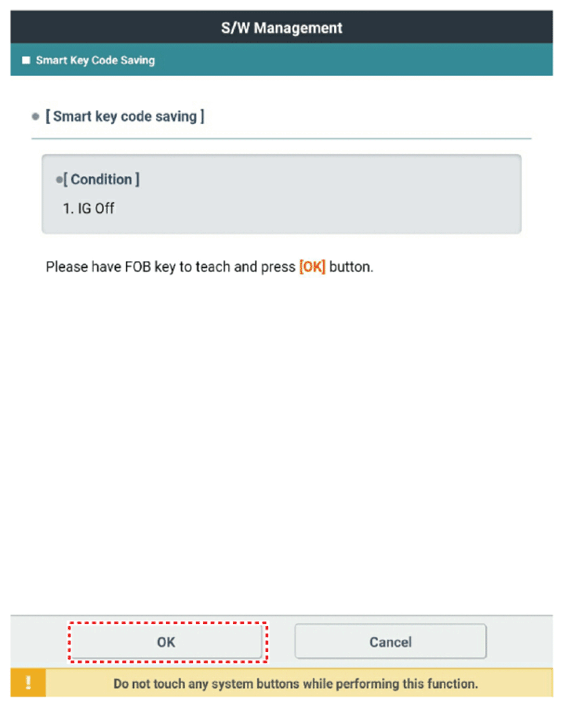

    G13129163Courtesy of KIA MOTORS AMERICA, INC.
  4. After having the teaching smart key, push "ENTER" key.
  5. Input the "Pin code" for first key teaching.

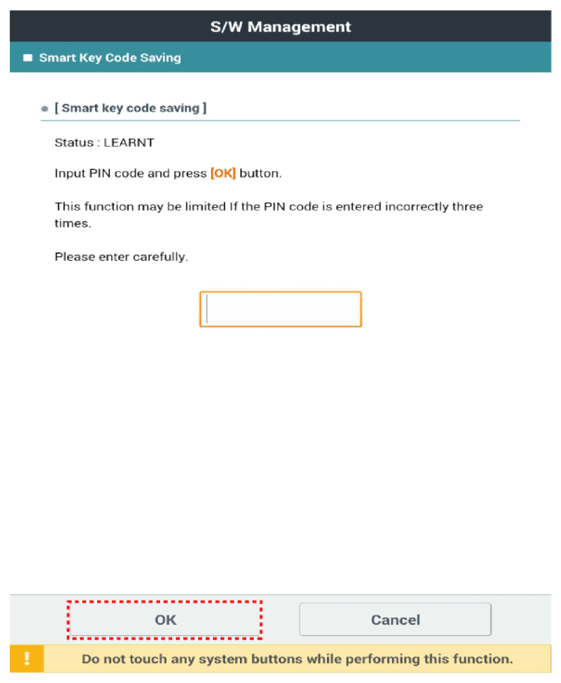

    G13129164Courtesy of KIA MOTORS AMERICA, INC.

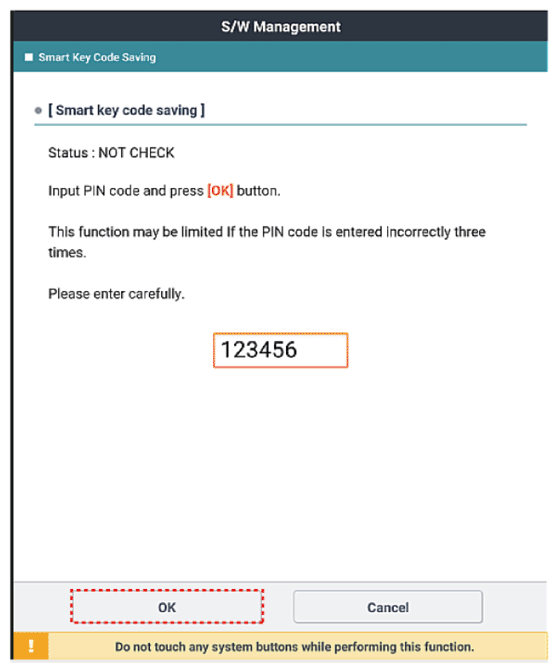

    G13129165Courtesy of KIA MOTORS AMERICA, INC.

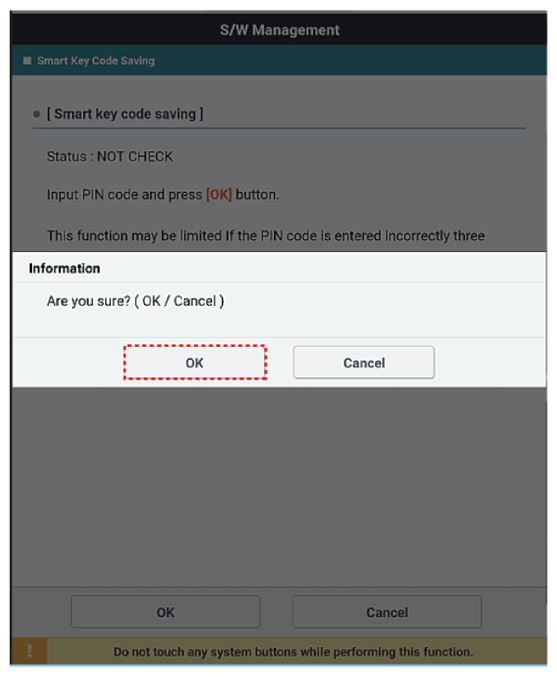

    G13129166Courtesy of KIA MOTORS AMERICA, INC.
  6. Confirm the message "First key teaching completed".

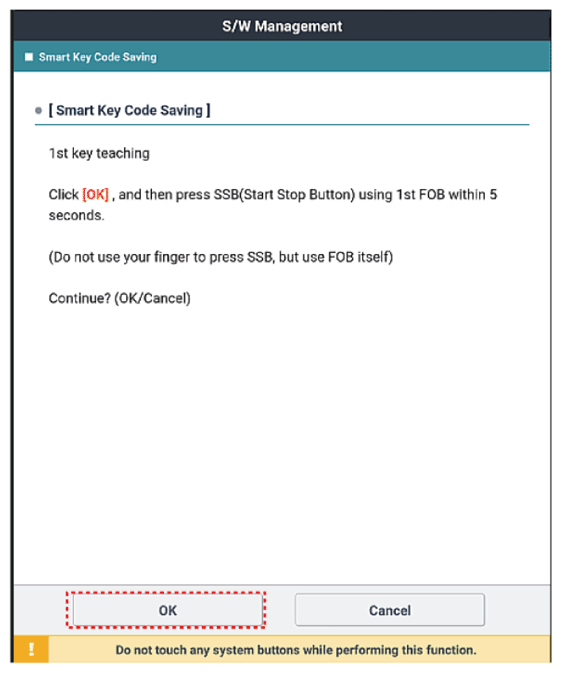

    G13129167Courtesy of KIA MOTORS AMERICA, INC.
  7. Press the SSB with smart key within 5 sec after pressing "OK".
    G13129168Courtesy of KIA MOTORS AMERICA, INC.
  8. Confirm the message "Second key teaching completed".

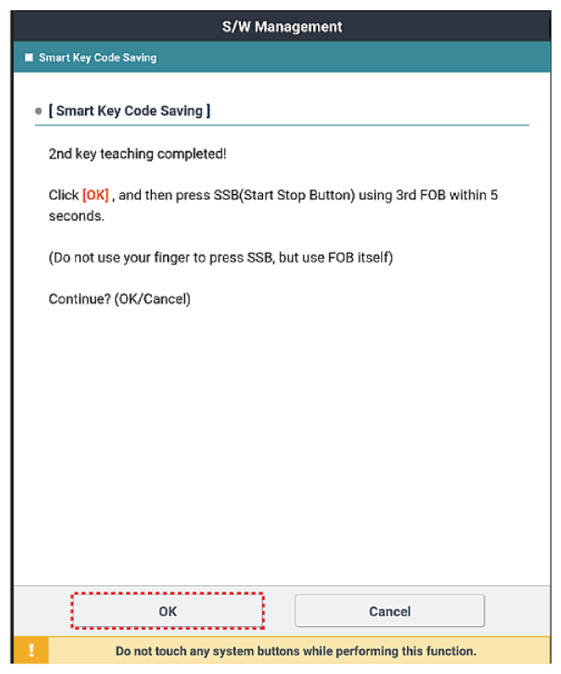

    G13129169Courtesy of KIA MOTORS AMERICA, INC.

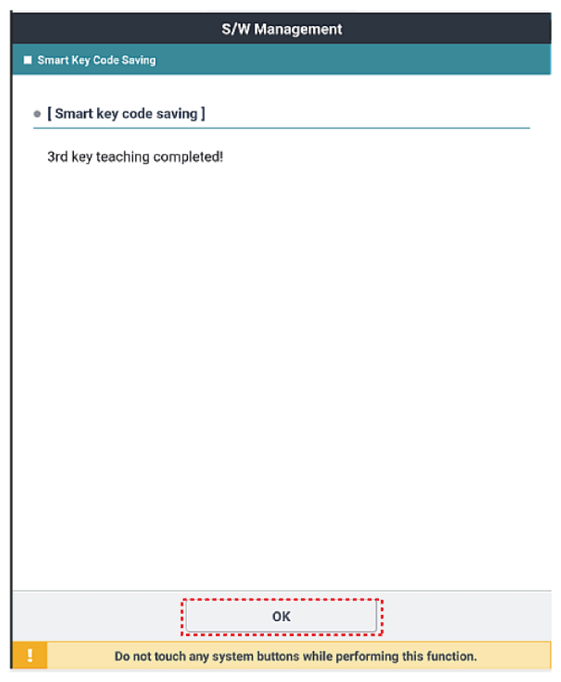

    G13129170Courtesy of KIA MOTORS AMERICA, INC.
  9. Then the screen will be shown as below when key teaching process is completed.

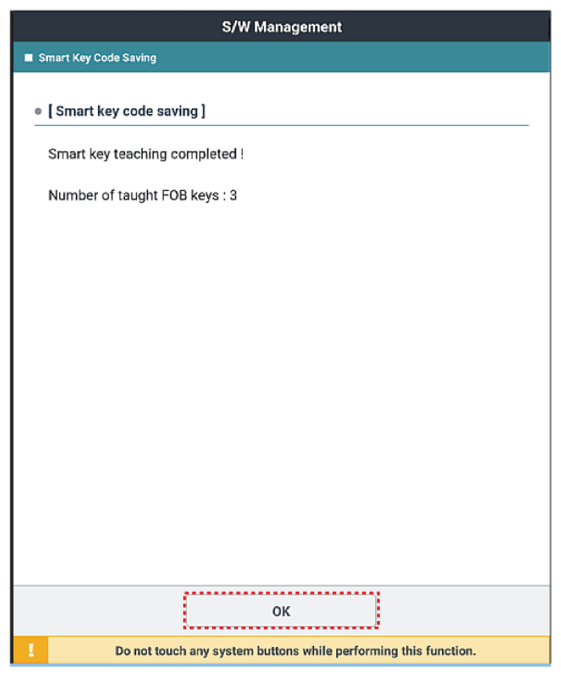

G13129171Courtesy of KIA MOTORS AMERICA, INC.
