Repair Procedures: Removal

  1. Remove the cylinder head cover.

    (Refer to Cylinder Head Assembly - "CYLINDER HEAD COVER ")

  2. Set No. 1 cylinder to TDC/compression.

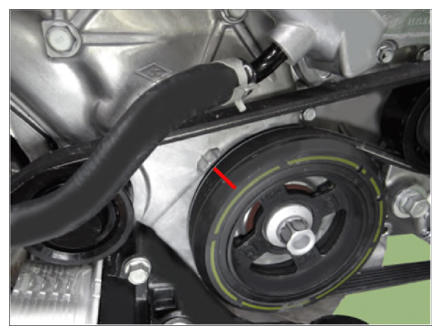

    1. Turn the crankshaft pulley clockwise and align its groove with the timing mark "T" of the lower timing chain cover.
      G13143014Courtesy of KIA MOTORS AMERICA, INC.

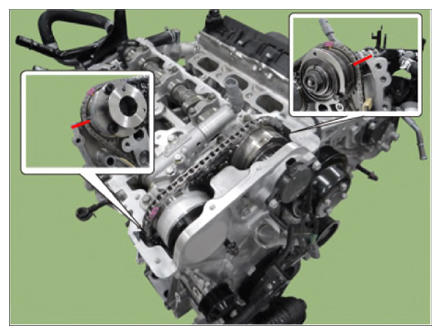

    2. Check that the mark of the camshaft timing sprockets are in straight line on the cylinder head surface as shown in the illustration. If not, turn the crankshaft clockwise one revolution (360°).

      [RH]

      G13143015Courtesy of KIA MOTORS AMERICA, INC.

      [LH]

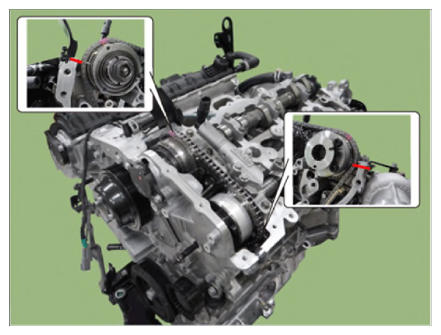

      G13143016Courtesy of KIA MOTORS AMERICA, INC.
      NOTE: Do not rotate engine counterclockwise.
  3. Remove the timing chain cover.

    (Refer to Timing System - "TIMING CHAIN COVER ")

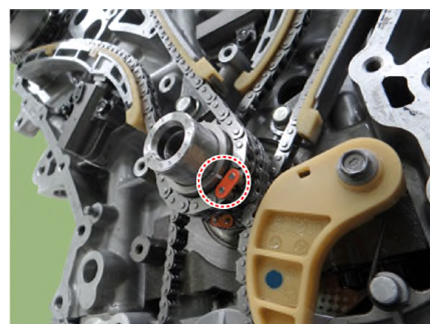

    NOTE: Before removing the timing chain, mark the RH/LH timing chain with an identification based on the location of the sprocket because the identification mark on the chain for TDC (Top Dead Center) can be erased.

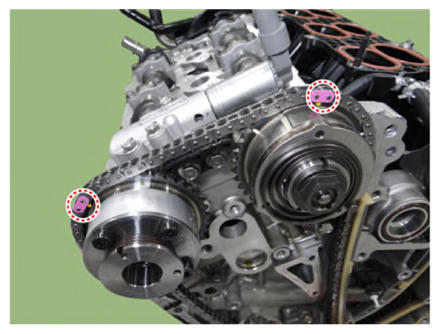

    G13143017Courtesy of KIA MOTORS AMERICA, INC.

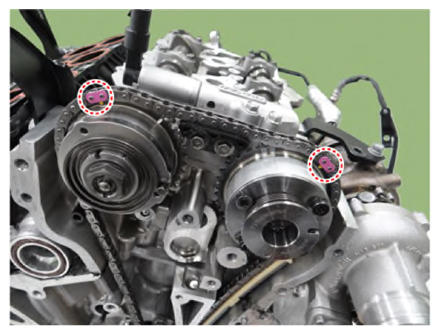

    G13143018Courtesy of KIA MOTORS AMERICA, INC.

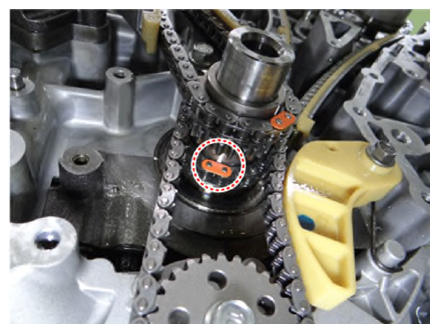

    G13143019Courtesy of KIA MOTORS AMERICA, INC.
    G13143020Courtesy of KIA MOTORS AMERICA, INC.
  4. Release the ratchet by pulling the link down using a thin rod. Compress the piston and then insert a stopper pin (A) into the hole on the ratchet to hold the compressed piston.
  5. Remove the RH timing chain tensioner (B).
    G13143021Courtesy of KIA MOTORS AMERICA, INC.

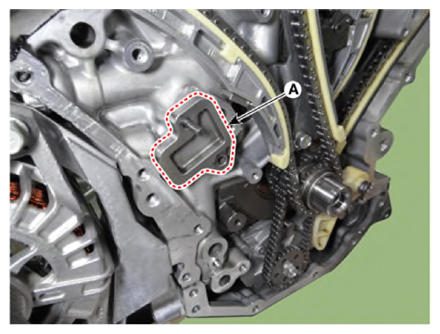

  6. Remove the RH timing chain tensioner adapter (A).
    G13143022Courtesy of KIA MOTORS AMERICA, INC.

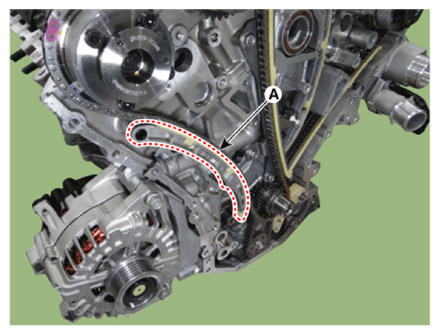

  7. Remove the RH timing chain tensioner arm (A).
    G13143023Courtesy of KIA MOTORS AMERICA, INC.

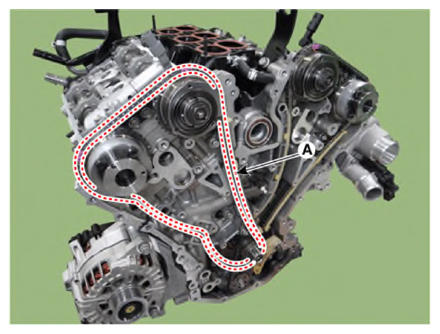

  8. Remove the RH timing chain (A).
    G13143024Courtesy of KIA MOTORS AMERICA, INC.
  9. Remove the RH timing chain guide (A).

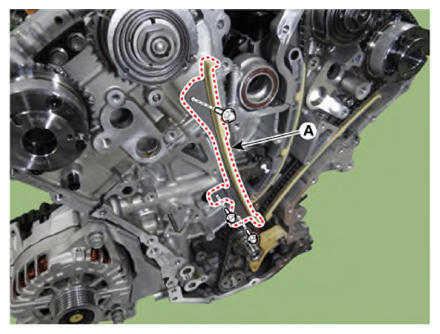

    G13143025Courtesy of KIA MOTORS AMERICA, INC.

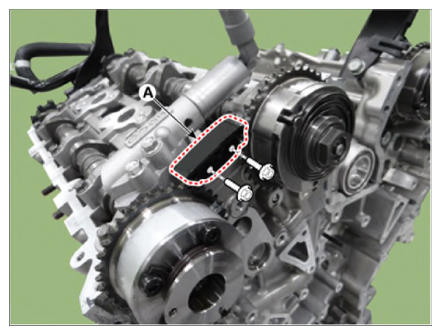

  10. Remove the RH timing chain cam to cam guide (A).
    G13143026Courtesy of KIA MOTORS AMERICA, INC.
  11. Remove the crankshaft RH timing chain sprocket (A).

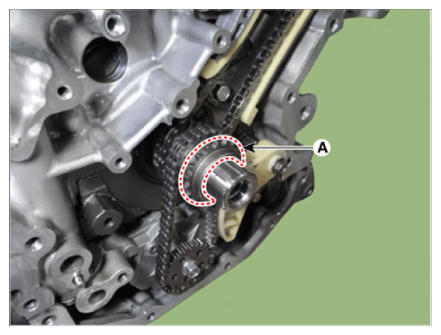

    G13143027Courtesy of KIA MOTORS AMERICA, INC.

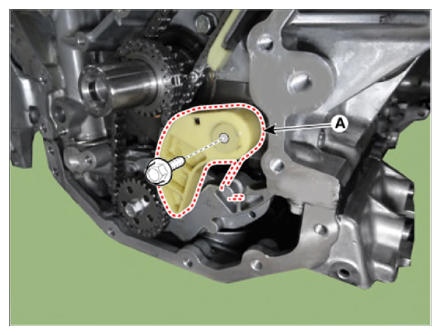

  12. Remove the oil pump chain tensioner (A).
    G13143028Courtesy of KIA MOTORS AMERICA, INC.

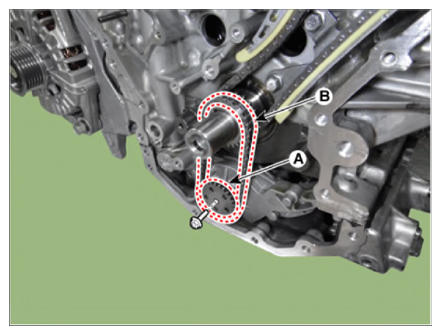

  13. Remove the oil pump chain sprocket (A) and oil pump chain (B).
    G13143029Courtesy of KIA MOTORS AMERICA, INC.

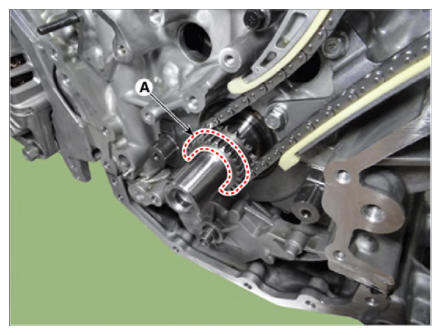

  14. Remove the crankshaft oil pump sprocket (A).
    G13143030Courtesy of KIA MOTORS AMERICA, INC.
  15. Release the ratchet by pulling the link down using a thin rod. Compress the piston and then insert a stopper pin (A) into the hole on the ratchet to hold the compressed piston.
  16. Remove the LH timing chain tensioner (B).

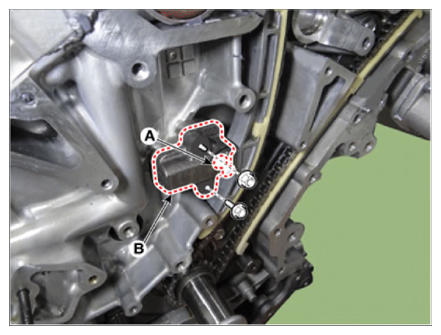

    G13143031Courtesy of KIA MOTORS AMERICA, INC.
  17. Remove the LH timing chain tensioner adapter (A).

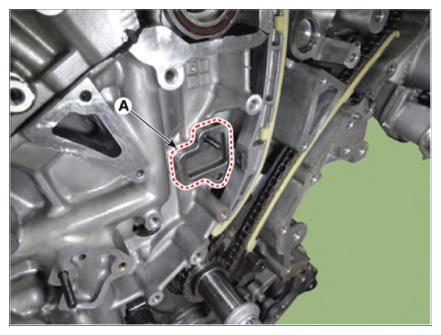

    G13143032Courtesy of KIA MOTORS AMERICA, INC.

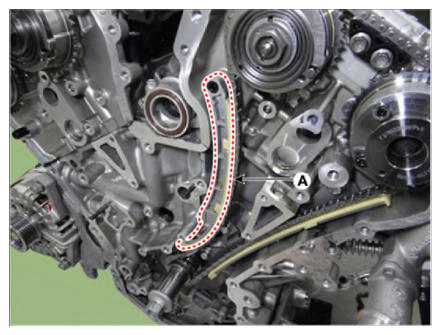

  18. Remove the LH timing chain tensioner arm (A).
    G13143033Courtesy of KIA MOTORS AMERICA, INC.

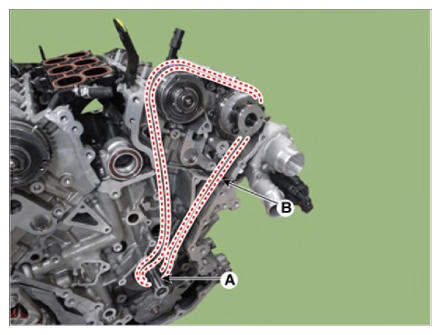

  19. Remove the crankshaft LH timing chain sprocket (A) and LH timing chain (B).
    G13143034Courtesy of KIA MOTORS AMERICA, INC.

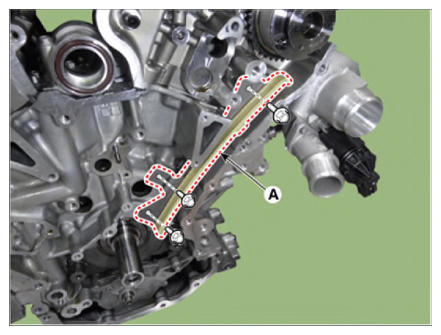

  20. Remove the LH timing chain guide (A).
    G13143035Courtesy of KIA MOTORS AMERICA, INC.

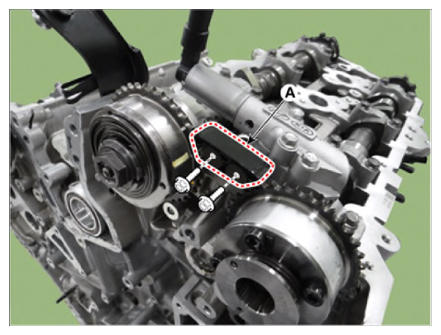

  21. Remove the LH timing chain cam to cam guide (A).
G13143036Courtesy of KIA MOTORS AMERICA, INC.
