Repair Procedures: Removal

  1. Disconnect the battery negative terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the knee airbag (KAB) module.

    (Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")

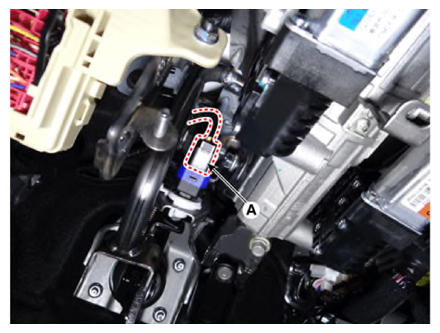

  4. Disconnect the stop lamp switch connector (A).
    G13143500Courtesy of KIA MOTORS AMERICA, INC.

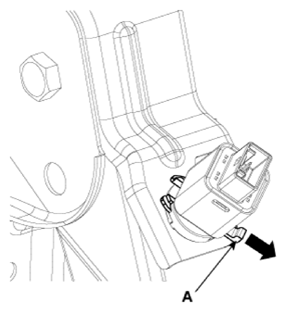

  5. Pull the locking plate (A) as indicated by the arrow.
    G13143501Courtesy of KIA MOTORS AMERICA, INC.

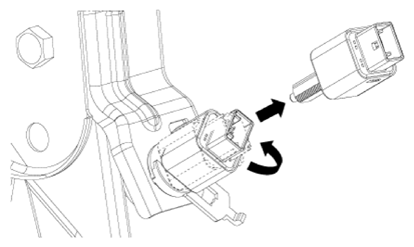

  6. Turn brake switch 45° counterclockwise and remove it.
    G13143502Courtesy of KIA MOTORS AMERICA, INC.

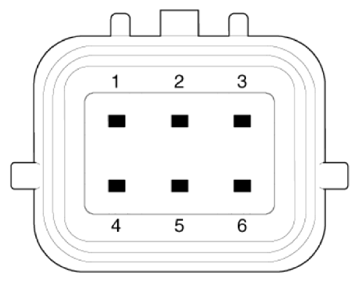

  7. Inspect a removed stop lamp switch along the below procedures.
    1. Confirm a normal connection with terminal part.
      • A confirmation can be made to see if the connector has been secured properly and if a connection mark is present.
G13143503Courtesy of KIA MOTORS AMERICA, INC.
