Home >> Kia >> 2020 >> K900 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Idle Stop & Go (ISG) System >> Components And Components Location >> Components Location

Components Location

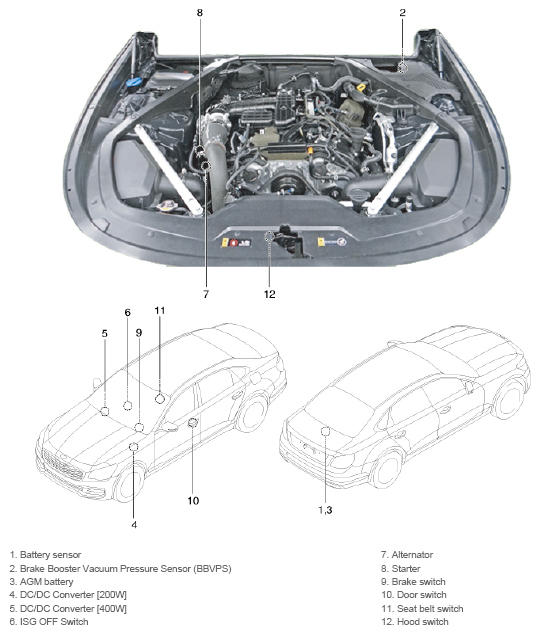

G13143409Courtesy of KIA MOTORS AMERICA, INC.

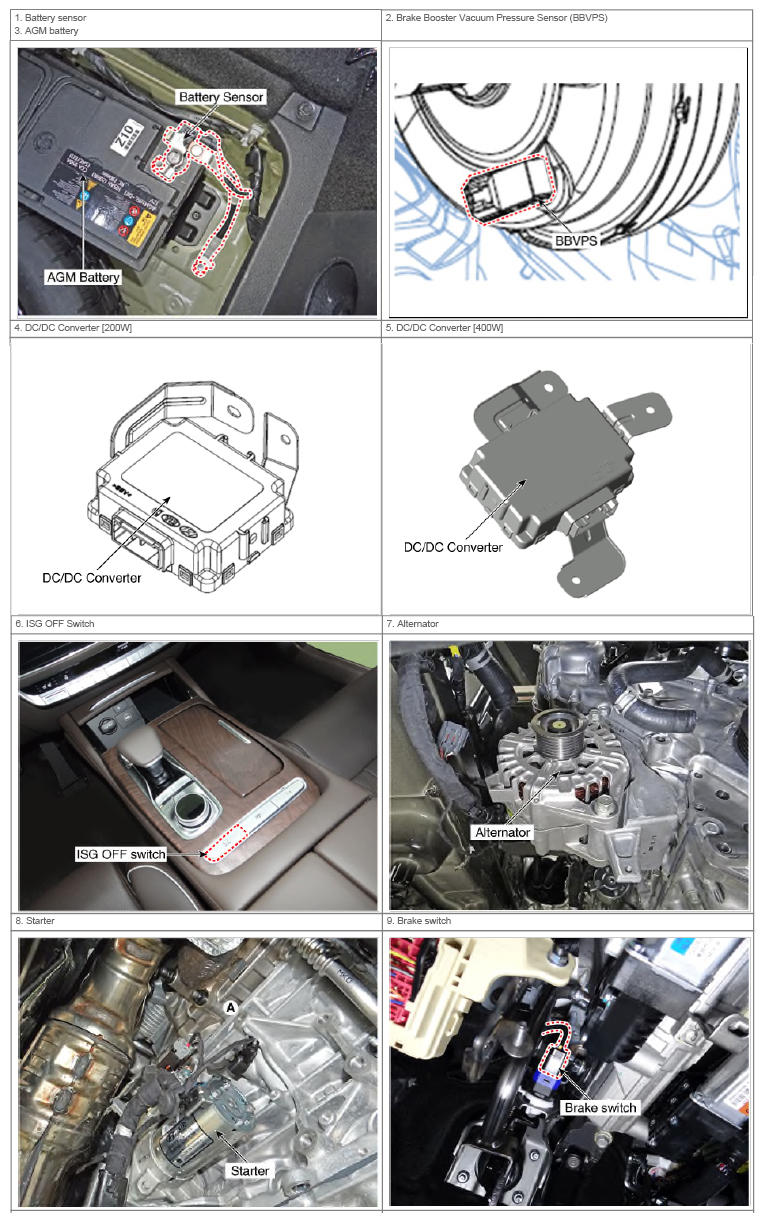

G13143410Courtesy of KIA MOTORS AMERICA, INC.

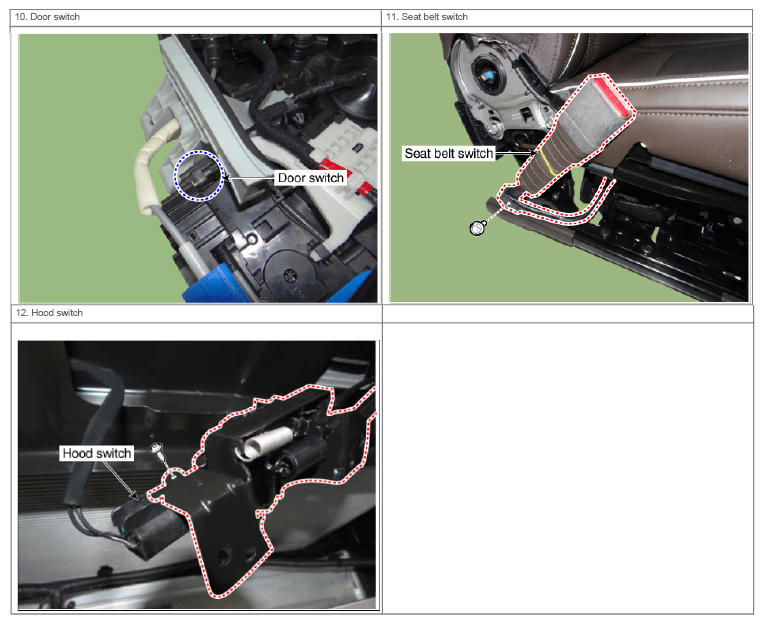

G13143411Courtesy of KIA MOTORS AMERICA, INC.
