Repair Procedures: Toe

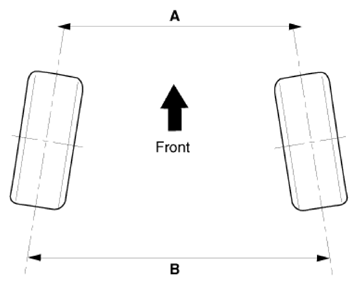

| Item | Description |
|---|---|
| A-B < 0 | Positive (+) toe (toe in) |
| A-B > 0 | Negative (-) toe (toe out) |
NOTE:
- Toe-in adjustment should be made by turning the right and left tie rods with the same torque.
- When adjusting toe-in, loosen the outer bellows clip to prevent the bellows clip from being twisted.
- After the adjustment, tighten the tie rod end lock nuts firmly and reinstall the bellows clip.
- Adjust each toe-in to be within the range of ±0.1°.
