Repair Procedures: Disassembly

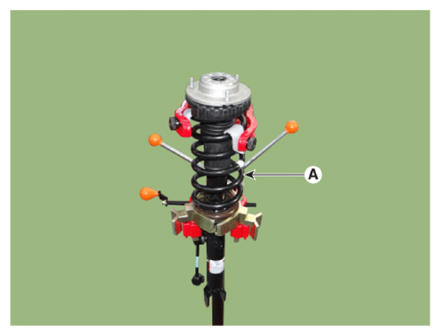

Compress the coil spring (A) with a strut spring compressor. Do not compress the spring excessively.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- To prevent peeling the paint of coil spring, cover the coil spring with a thin cloth or hose before installing strut spring compressor.
- Set the compression position of strut spring compressor correctly for coil spring not to slant when compressing the coil spring.

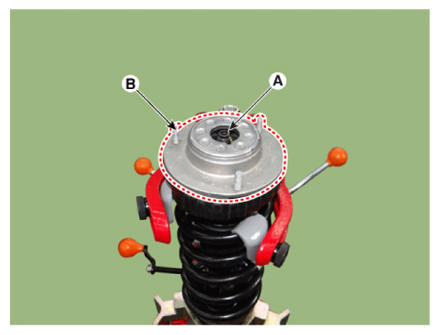

Remove the lock nut (A). Gradually turn the bolt on the spring compressor to slowly release the tension from the spring. Then, disconnect the components.
Tightening torque:

HPD: 24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 14.5 - 18.1 lb.ft)

ECS: 50.0 - 59.8 N.m (5.1 - 6.1 kgf.m, 36.9 - 44.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

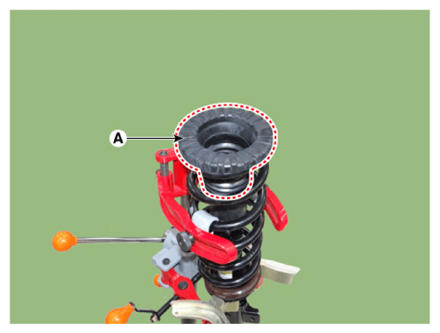

Remove the spring upper pad (A).

Courtesy of KIA MOTORS AMERICA, INC.

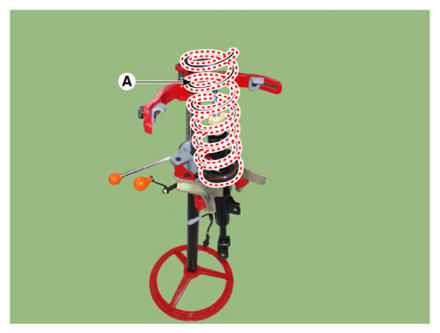

Remove the coil spring (A).

Courtesy of KIA MOTORS AMERICA, INC.

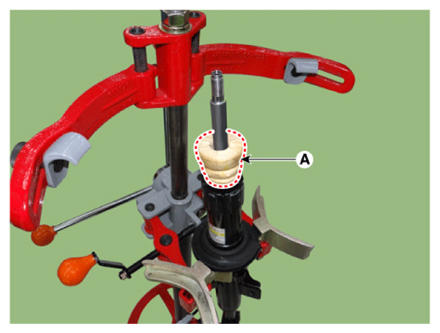

Remove the bump stopper (A).

Courtesy of KIA MOTORS AMERICA, INC.

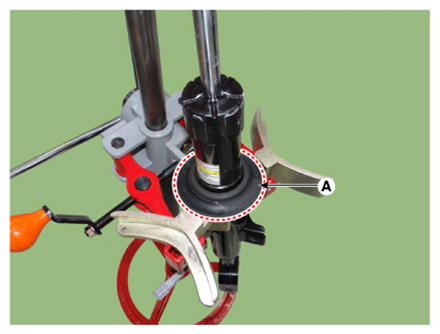

Remove the spring lower pad (A).

Courtesy of KIA MOTORS AMERICA, INC.
Reassembly in the reverse order of disassembly.
