Without ECS

Remove the front wheel and tire.
(Refer to Tires/Wheels - "WHEEL ")

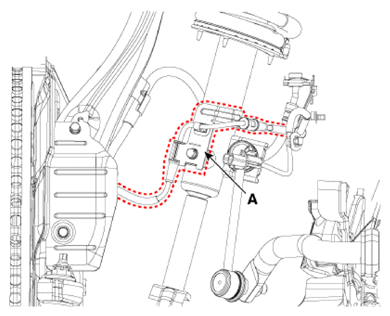

Disconnect the wheel speed sensor bracket (A).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

[2WD]

Courtesy of KIA MOTORS AMERICA, INC.

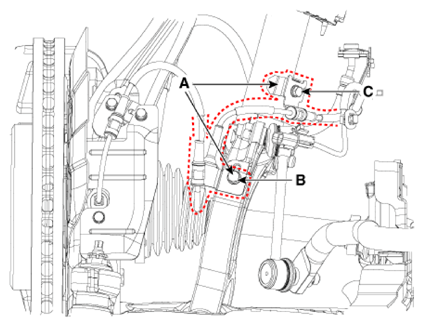

[AWD]

Tightening torque:

Bolt (B): 8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Bolt (C): 6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

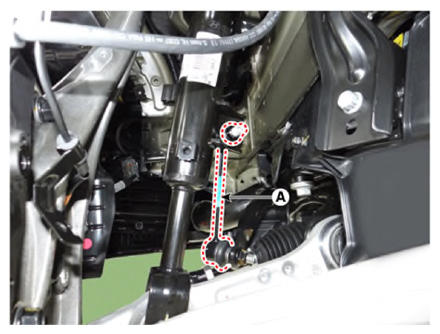

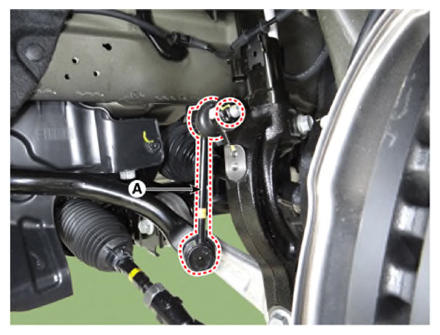

Separate the stabilizer link (A) from the front strut assembly.
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

[2WD]

Courtesy of KIA MOTORS AMERICA, INC.

[AWD]

Courtesy of KIA MOTORS AMERICA, INC.

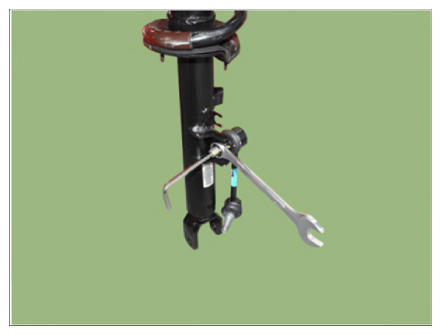

NOTE: Using a hex wrench, fix the end of stabilizer link when loosening the nut.

Courtesy of KIA MOTORS AMERICA, INC.

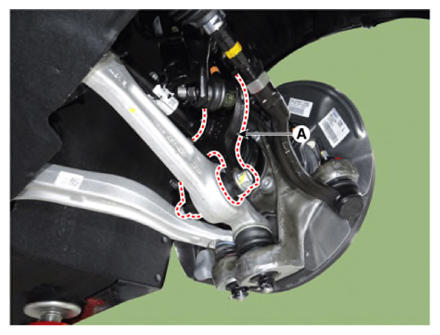

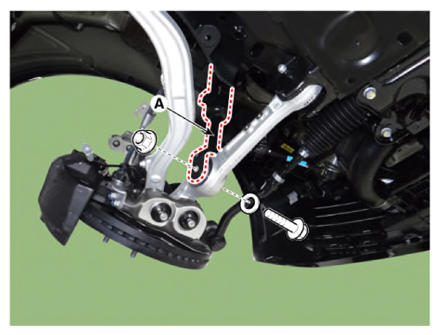

Separate the front strut assembly (A) from the lateral arm by loosening the bolt and nut.
Tightening torque:

156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb.ft)

[2WD]

Courtesy of KIA MOTORS AMERICA, INC.

[AWD]

Courtesy of KIA MOTORS AMERICA, INC.

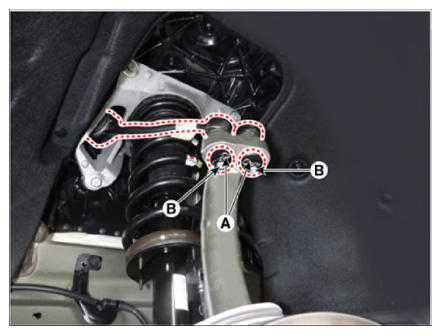

Separate the upper arm from the knuckle.

Remove the split pin (A).

Remove the castle nut (B).

Tightening torque:

78.5 - 88.3 N.m (8.0 - 9.0 kgf.m, 57.9 - 65.1 lb.ft)

G13144293

Courtesy of KIA MOTORS AMERICA, INC.

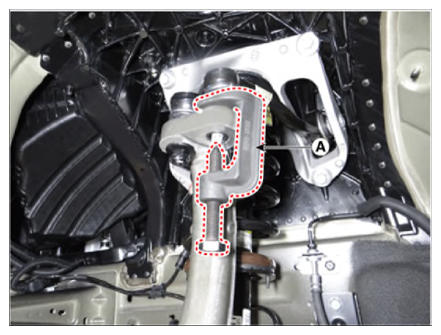

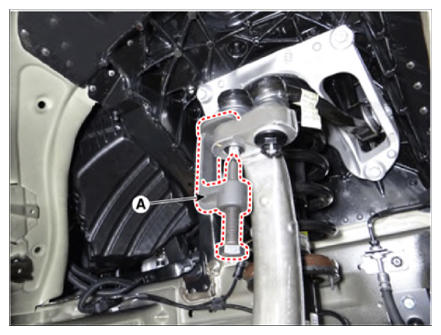

Separate the upper arm from knuckle using the ball joint puller (A).

G13144294

Courtesy of KIA MOTORS AMERICA, INC.

G13144295

Courtesy of KIA MOTORS AMERICA, INC.

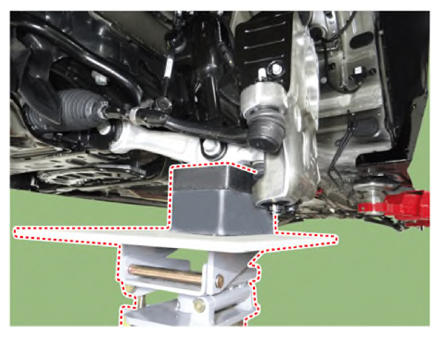

NOTE: Set up the jack under the knuckle in order to separate the upper arm in no-load condition.

G13144296

Courtesy of KIA MOTORS AMERICA, INC.

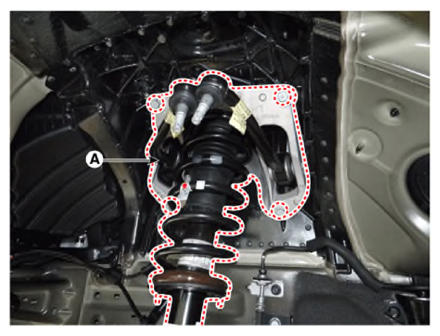

Remove the front strut assembly (A).
Tightening torque:

53.9 - 63.7 N.m (5.5 - 6.5 kgf.m, 39.8 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Loosen the nuts (A) and remove the bracket from the strut assembly.
Tightening torque:

24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
