Repair Procedures: Replacement

  1. Remove the front wheel and tire.

    (Refer to Tires/Wheels - "WHEEL ")

  2. Remove the engine room under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

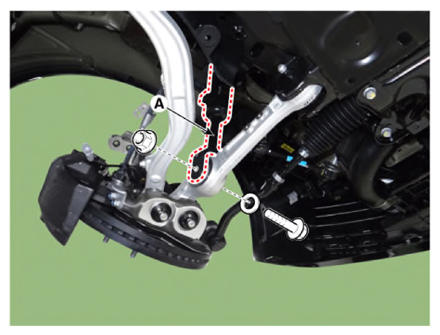

  3. Separate the front strut assembly (A) from the lateral arm by loosening the bolt and nut.

    Tightening torque:

    156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb.ft)

    [2WD]

    G13144347Courtesy of KIA MOTORS AMERICA, INC.

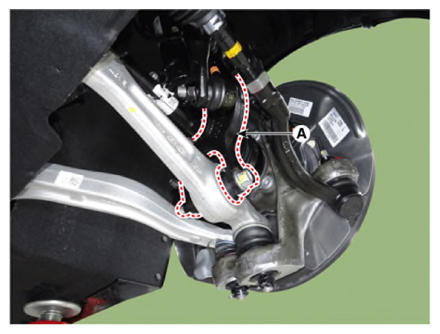

    [AWD]

    G13144348Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the front axle assembly.

    (Refer to Driveshaft and axle - "FRONT HUB/KNUCKLE/TONE WHEEL ")

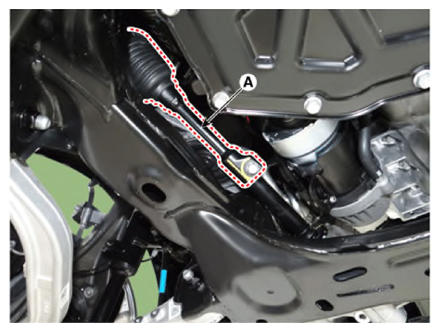

  5. Separate the universal joint (A) from the steering gear box.

    Tightening torque:

    32.4 - 37.3 N.m (3.3 - 3.8 kgf.m, 23.9 - 27.5 lb.ft)

    G13144349Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Do not reuse the universal joint bolt, Be sure to install a new one.
  6. Remove the sub frame stay (A).

    Tightening torque:

    53.9 - 63.7 N.m (5.5 - 6.5 kgf.m, 39.8 - 47.0 lb.ft)

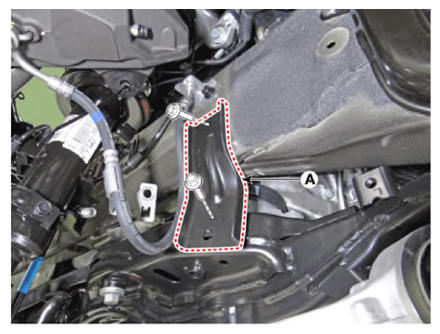

    [RH]

    G13144350Courtesy of KIA MOTORS AMERICA, INC.

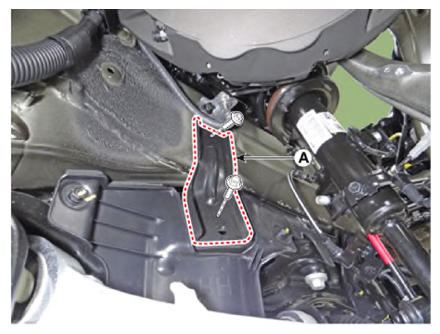

    [LH]

    G13144351Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the engine room side cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

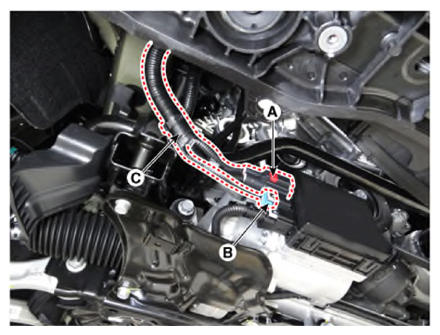

  8. Disconnect the R-MDPS motor connector (A), ECU connector (B) and wiring (C).
    G13144352Courtesy of KIA MOTORS AMERICA, INC.

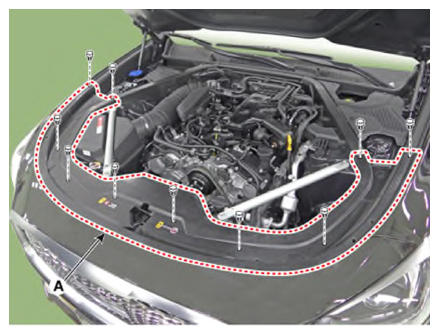

  9. Remove the radiator grill upper cover (A).
    G13144353Courtesy of KIA MOTORS AMERICA, INC.

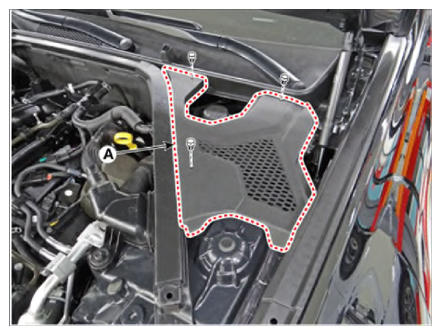

  10. Remove the engine room cover (A).
    G13144354Courtesy of KIA MOTORS AMERICA, INC.

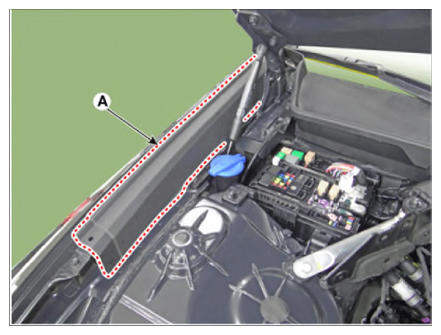

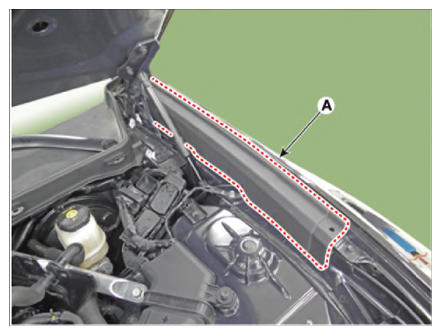

  11. Remove the fender side cover (A).

    [RH]

    G13144355Courtesy of KIA MOTORS AMERICA, INC.

    [LH]

    G13144356Courtesy of KIA MOTORS AMERICA, INC.
  12. Remove the cowl top cover.

    (Refer to Body (Interior and Exterior) - "COWL TOP COVER ")

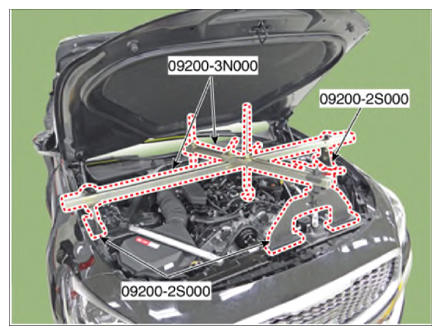

  13. Assemble the engine support fixture on the engine room by using a SST (09200-3N000, 09200-2S000).

    (Refer to SPECIAL SERVICE TOOLS .)

    G13144357Courtesy of KIA MOTORS AMERICA, INC.

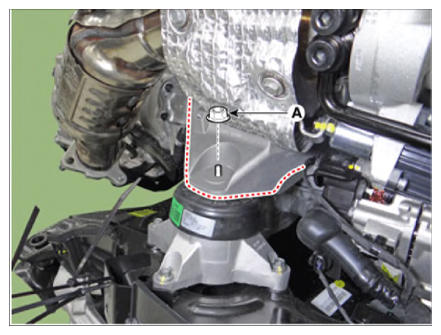

  14. Remove the RH/LH engine support bracket bolt (A).

    Tightening torque:

    63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb.ft)

    [RH]

    G13144358Courtesy of KIA MOTORS AMERICA, INC.

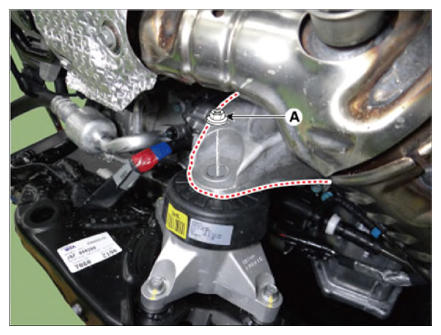

    [LH]

    G13144359Courtesy of KIA MOTORS AMERICA, INC.

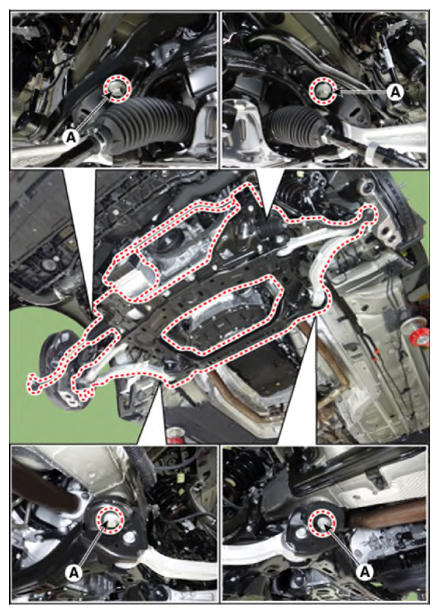

  15. Support the sub frame with a lift table and then loosen the sub frame mounting bolts (A).

    Tightening torque:

    196.1 - 215.7 N.m (20.0 - 22.0 kgf.m, 144.7 - 159.1 lb.ft)

    G13144360Courtesy of KIA MOTORS AMERICA, INC.

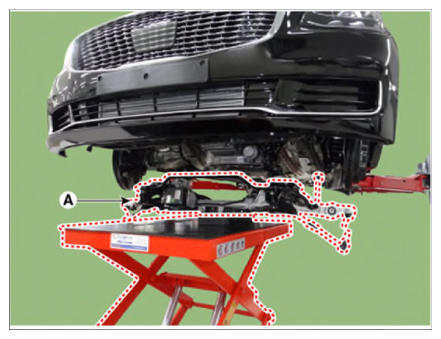

  16. Remove the sub frame (A) from the vehicle.
    G13144361Courtesy of KIA MOTORS AMERICA, INC.
  17. Install in the reverse order of removal.
  18. Check the front wheel alignment.

    (Refer to Front Suspension System - "FRONT ALIGNMENT ")
