Repair Procedures: Removal

NOTE: Prior to replacing the 4WD ECU, back up the 4WD ECU's clutch learning with the KDS tool.
(Refer to 4 Wheel Drive (AWD) System - "REPAIR PROCEDURES ")
  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the integrated central control unit (ICU).

    (Refer to Body Electrical System - "INTEGRATED CENTRAL CONTROL UNIT (ICU) ")

  3. Remove the knee airbag.

    (Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")

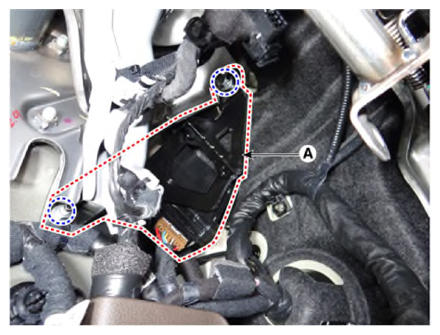

  4. Remove the AWD ECU (A) after loosening the mounting nuts.
    G13143977Courtesy of KIA MOTORS AMERICA, INC.

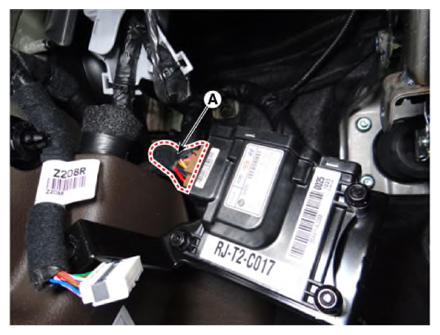

  5. Disconnect the AWD ECU connector (A).
G13143978Courtesy of KIA MOTORS AMERICA, INC.
