Repair Procedures: Installation

  1. Install in the reverse order of removal.
  2. Perform the oil pressure characteristics input procedure using the KDS when replacing with a new TCM.

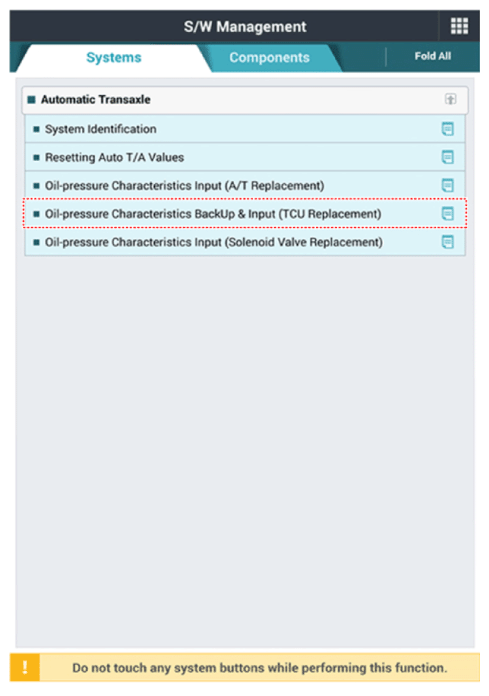

    1. Click the "Oil-pressure Characteristics BackUp & Input (TCU Replacement)".
      G13143625Courtesy of KIA MOTORS AMERICA, INC.

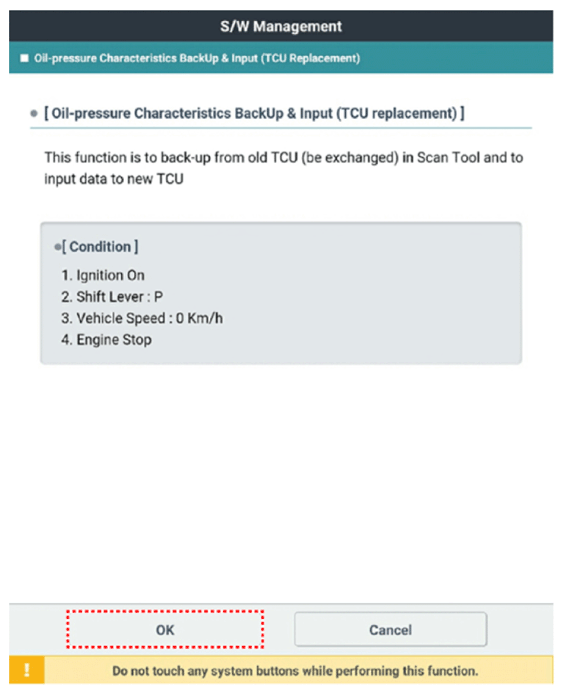

    2. Check the condition and then click the "OK".
      G13143626Courtesy of KIA MOTORS AMERICA, INC.

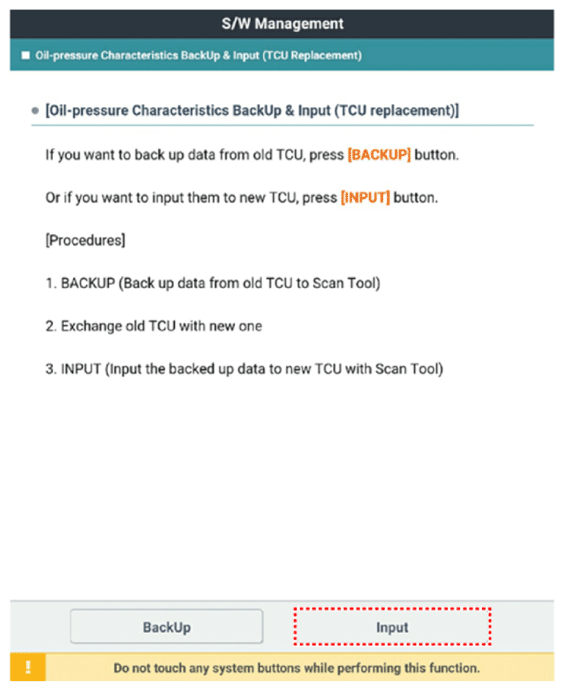

    3. Click the "Input".
      G13143627Courtesy of KIA MOTORS AMERICA, INC.

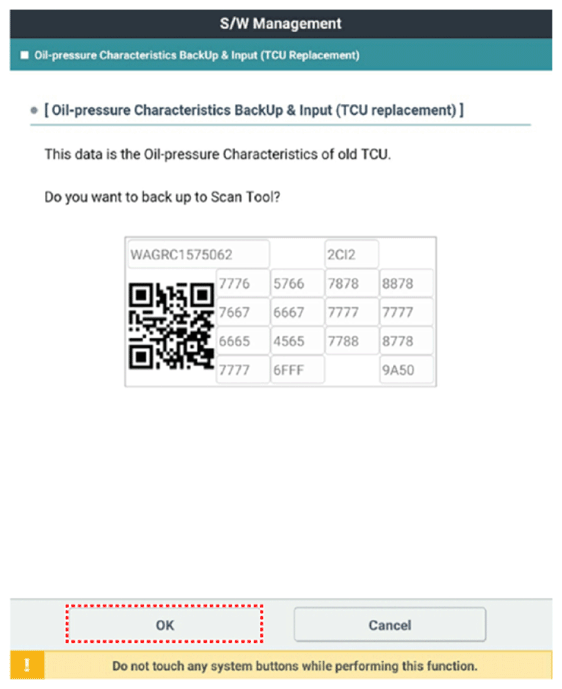

    4. Click the "OK".
    G13143628Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform the TCM adaptive values learning procedure.

    (Refer to "TCM Adaptive Values Learning ")
