Repair Procedures: Replacement

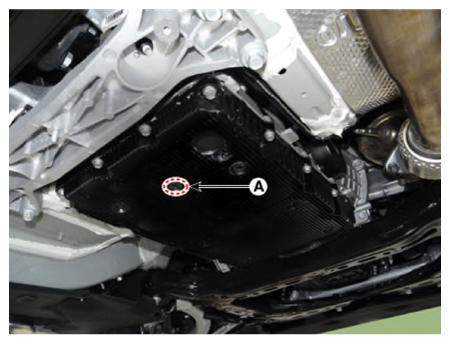

  1. Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.

    Tightening torque:

    22.6 - 24.5 N.m (2.3 - 2.5 kgf.m, 16.6 - 18.1 lb.ft)

    G13143718Courtesy of KIA MOTORS AMERICA, INC.

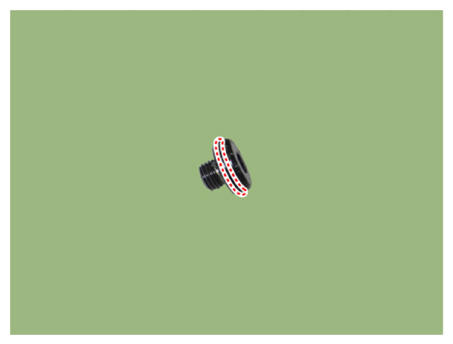

    NOTE: The existing ATF drain plug o-ring must be replaced with a new one. (Do not reuse it.)
    G13143719Courtesy of KIA MOTORS AMERICA, INC.
  2. Fill the automatic transmission with about 7.0 L of ATF SP-IV-RR through the ATF filler hole.
  3. Perform the ATF level check procedure.

    (Refer to Fluid - "Automatic Transmission Fluid (ATF) Level Check  ")
