Repair Procedures: Removal

  1. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

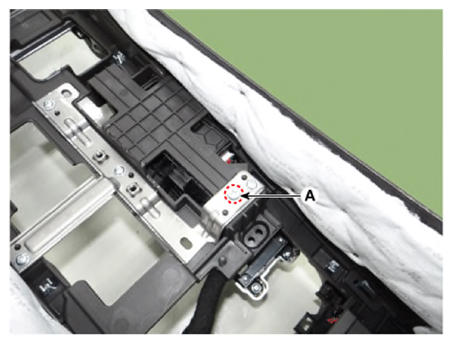

  2. Loosen the mounting bolt (A) from the lower side of floor console assembly.

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

    G13143666Courtesy of KIA MOTORS AMERICA, INC.

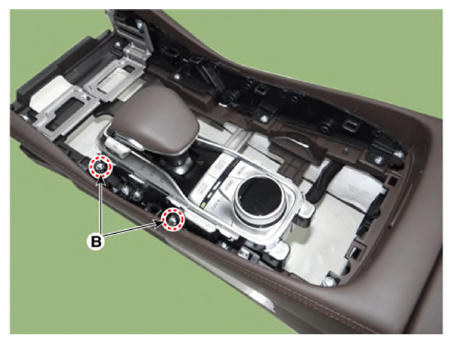

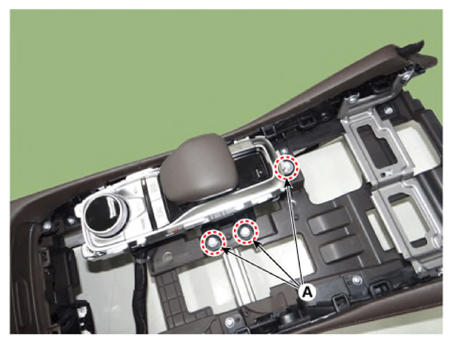

  3. Loosen the E-shifter mounting bolts (A) and screws (B).

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

    G13143667Courtesy of KIA MOTORS AMERICA, INC.
    G13143668Courtesy of KIA MOTORS AMERICA, INC.

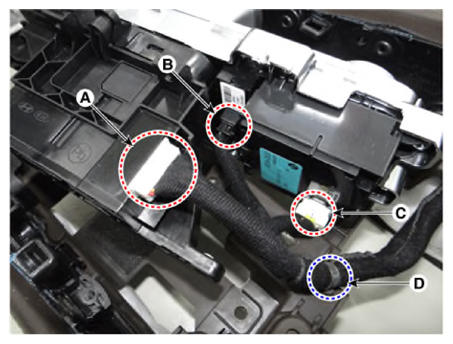

  4. Remove the E-shifter after disconnecting the connector.
    1. E-shifter connector
    2. Drive mode switch connector
    3. AVN keyboard assembly connector
    4. Wiring fixing clip
    G13143669Courtesy of KIA MOTORS AMERICA, INC.

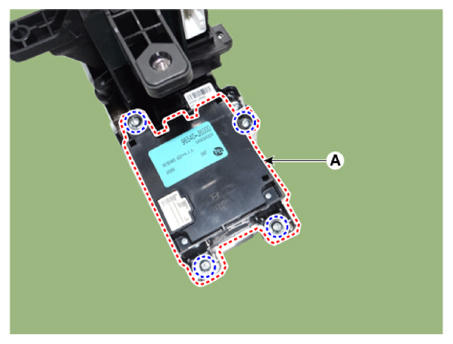

  5. Remove the AVN keyboard assembly (A) after loosening the mounting screws.
    G13143670Courtesy of KIA MOTORS AMERICA, INC.

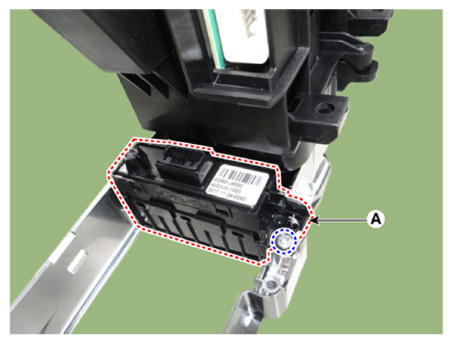

  6. Remove the drive mode switch (A) after loosening the mounting screws.
G13143671Courtesy of KIA MOTORS AMERICA, INC.
