Repair Procedures: Removal

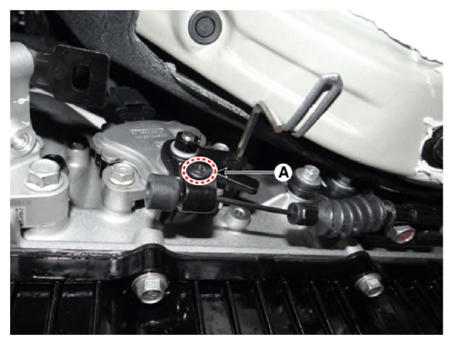

  1. Remove the parking release cable after loosening the fastener (A).
    G13143645Courtesy of KIA MOTORS AMERICA, INC.

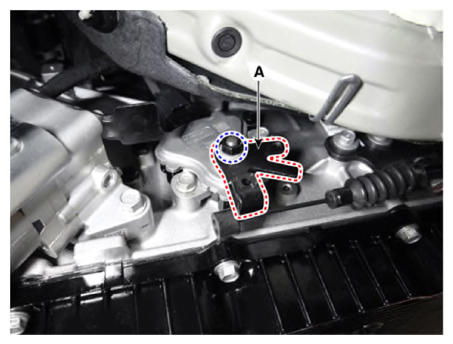

  2. Remove the parking release lever (A) after loosening the nut.
    G13143646Courtesy of KIA MOTORS AMERICA, INC.

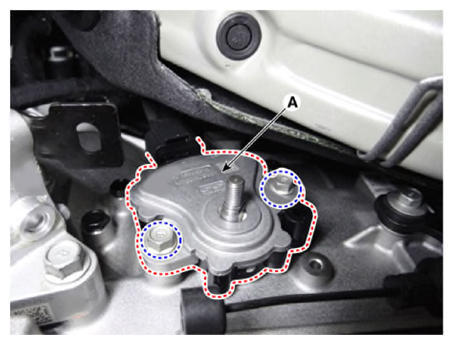

  3. Remove the parking switch (A) after loosening the bolts.
    G13143647Courtesy of KIA MOTORS AMERICA, INC.

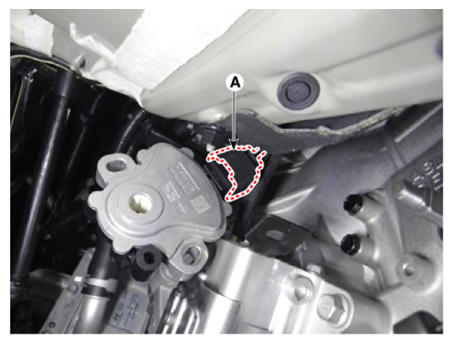

  4. Disconnect the parking switch connector (A).
G13143648Courtesy of KIA MOTORS AMERICA, INC.
