Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

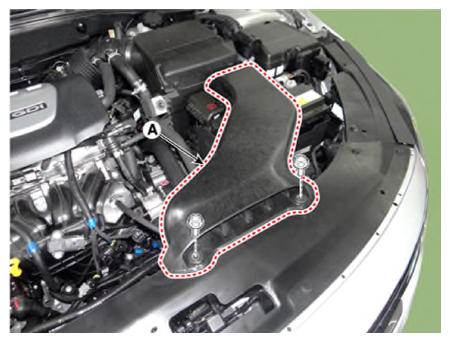

  2. Remove the air duct (A).
    G12915500Courtesy of KIA MOTORS AMERICA, INC.

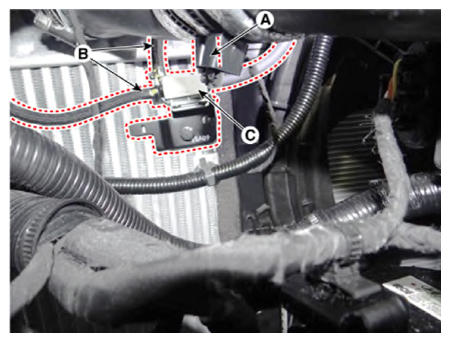

  3. Disconnect the RCV control solenoid valve connector (A) and vapor hoses (C).
  4. Remove the RCV control solenoid valve (C) after loosening the mounting bolt.
    G12915501Courtesy of KIA MOTORS AMERICA, INC.
