Home >> Kia >> 2020 >> Optima LX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.4L (Except HEV) >> Components And Components Location >> Components Location

Components Location

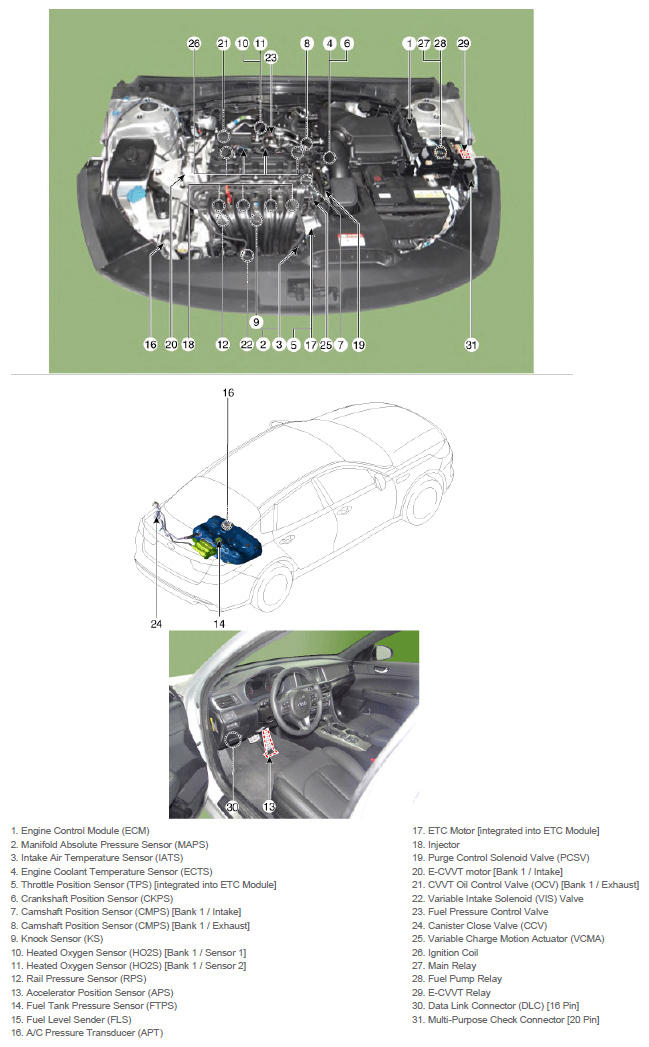

G12932721Courtesy of KIA MOTORS AMERICA, INC.

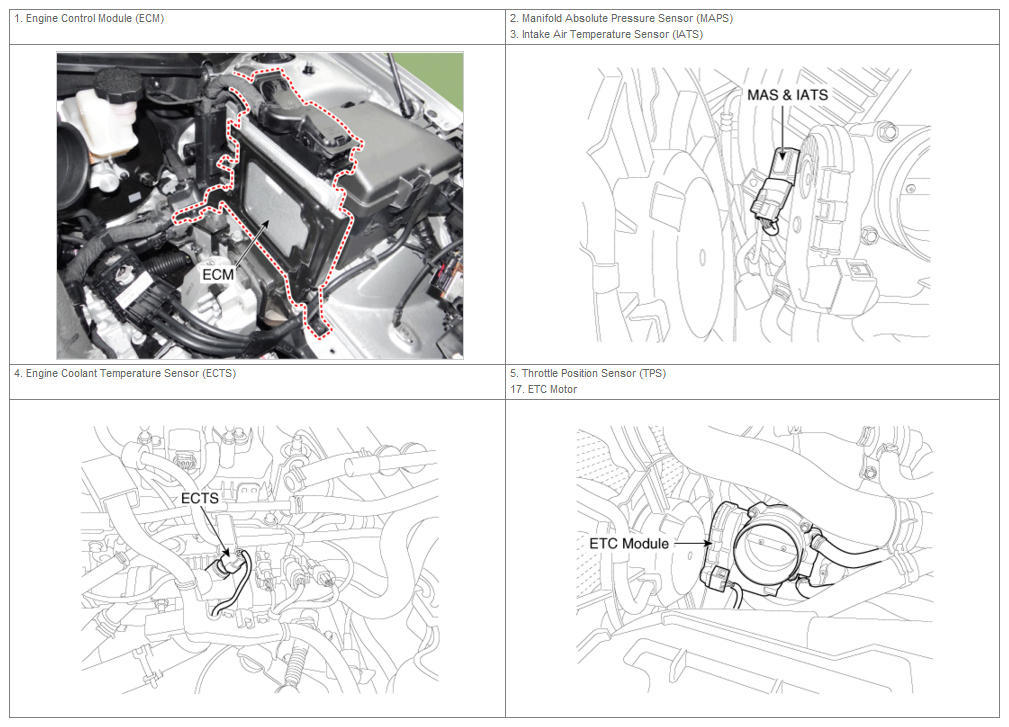

G12932722Courtesy of KIA MOTORS AMERICA, INC.

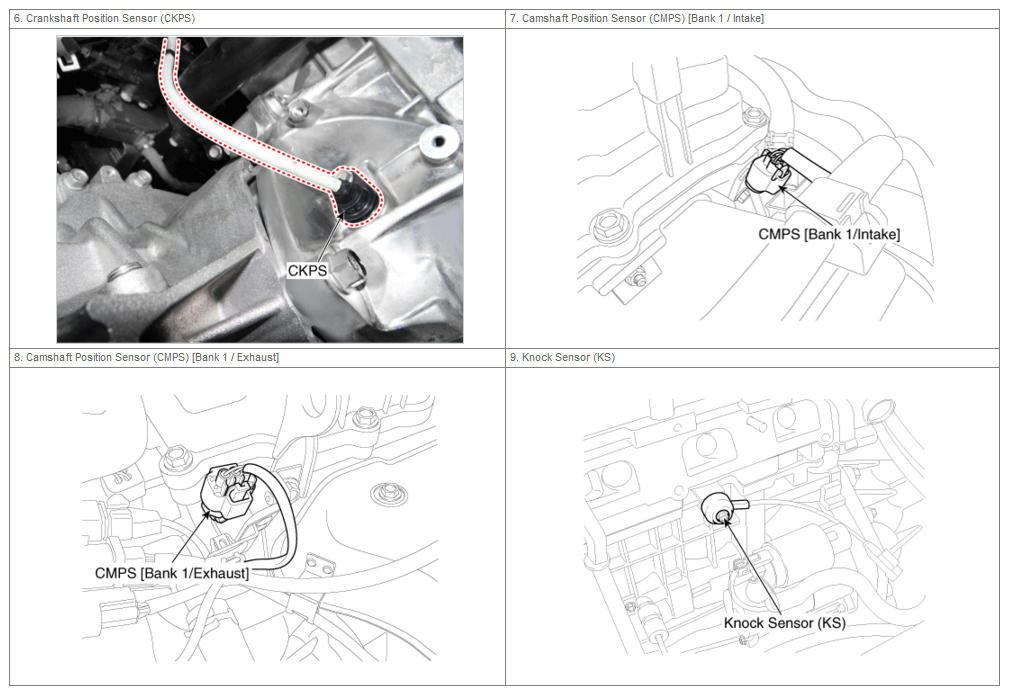

G12932723Courtesy of KIA MOTORS AMERICA, INC.

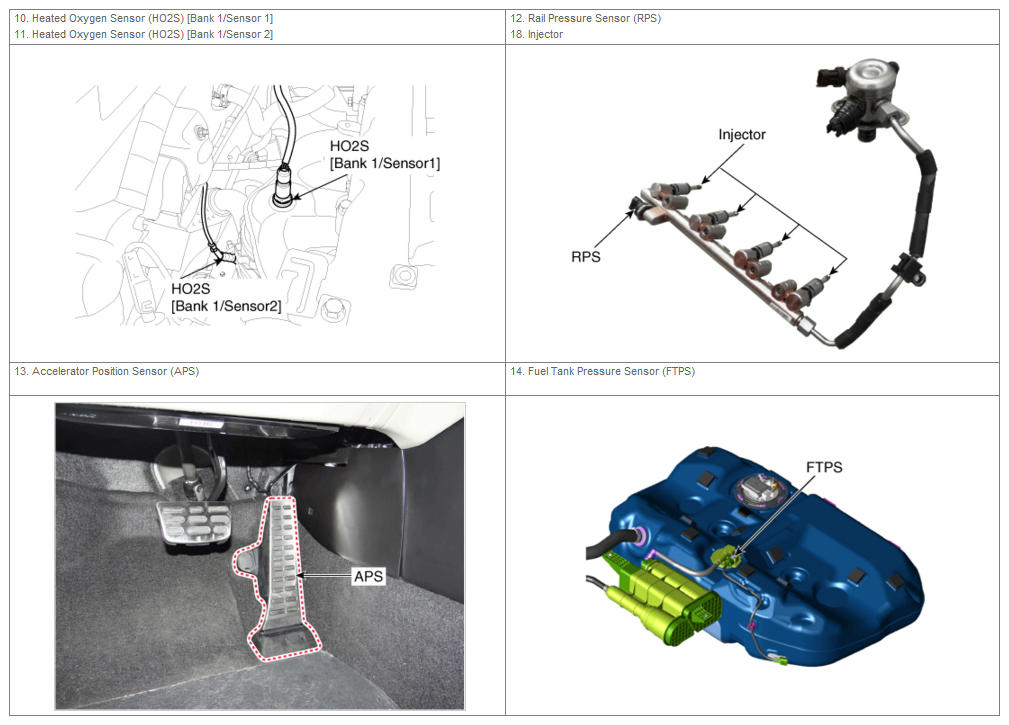

G12932724Courtesy of KIA MOTORS AMERICA, INC.

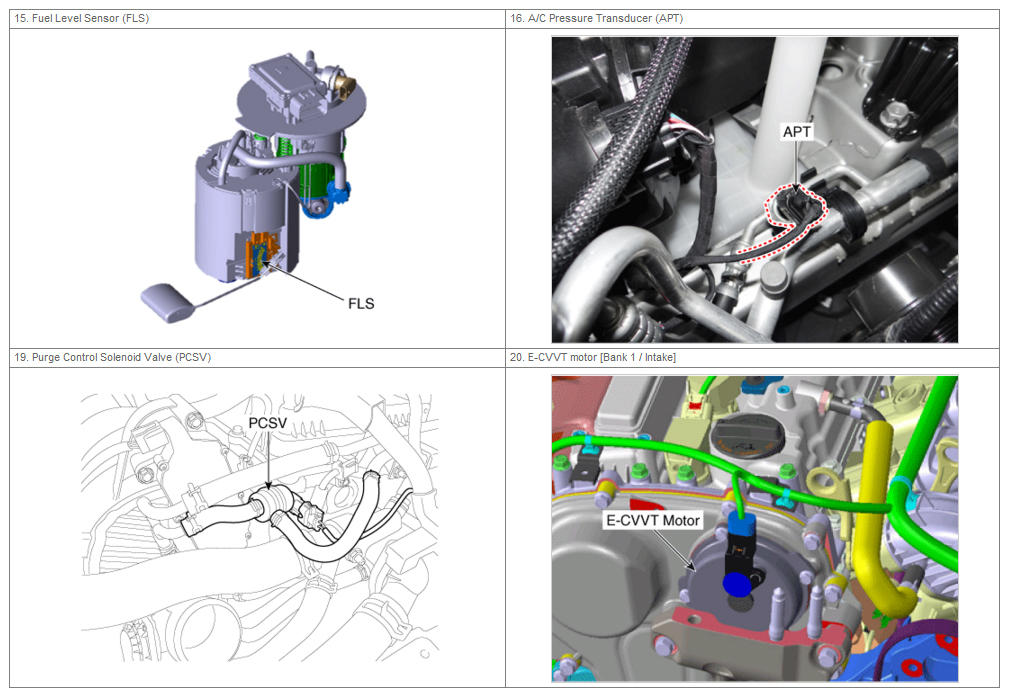

G12932725Courtesy of KIA MOTORS AMERICA, INC.

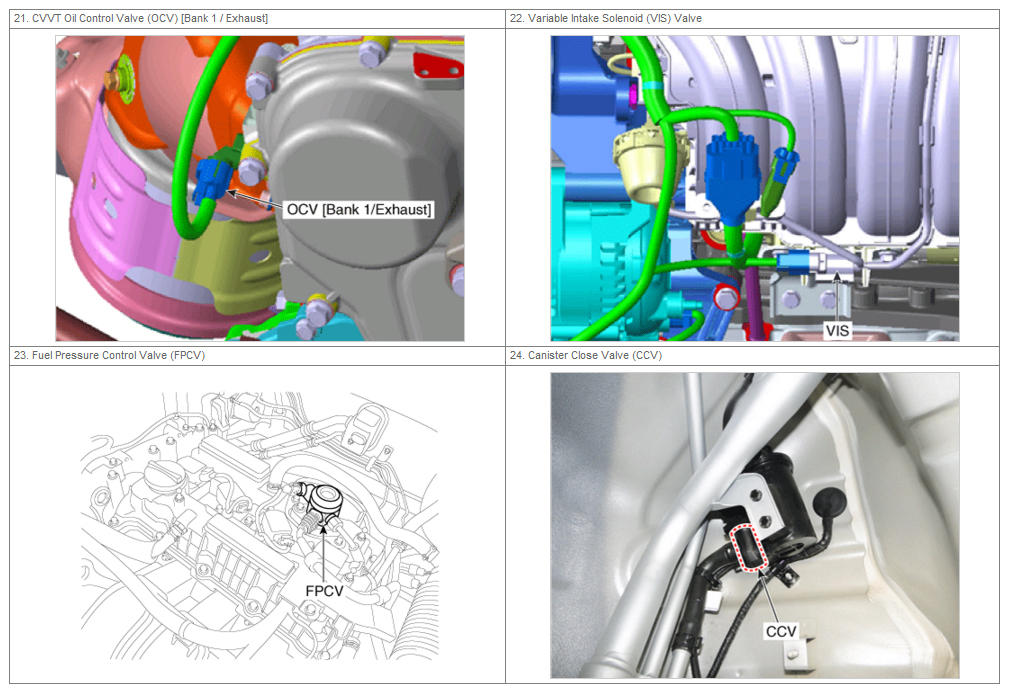

G12932726Courtesy of KIA MOTORS AMERICA, INC.

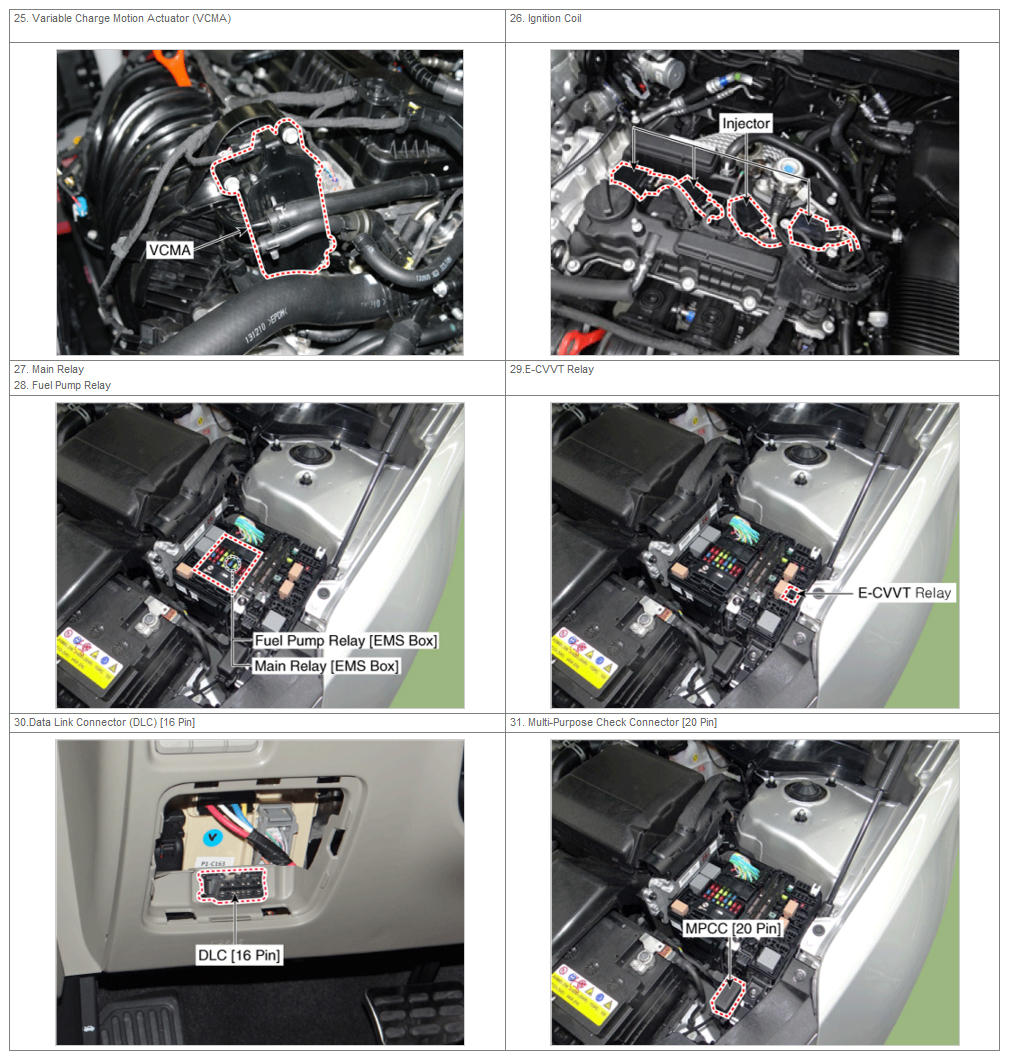

G12932727Courtesy of KIA MOTORS AMERICA, INC.
