Engine Control System - 2.4L (Except HEV)
>>
E-CVVT Motor
>>
Troubleshooting
>>
Signal Waveform
Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.

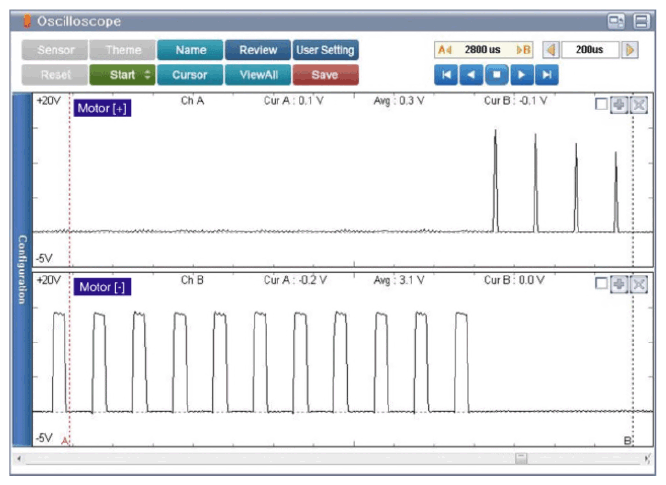

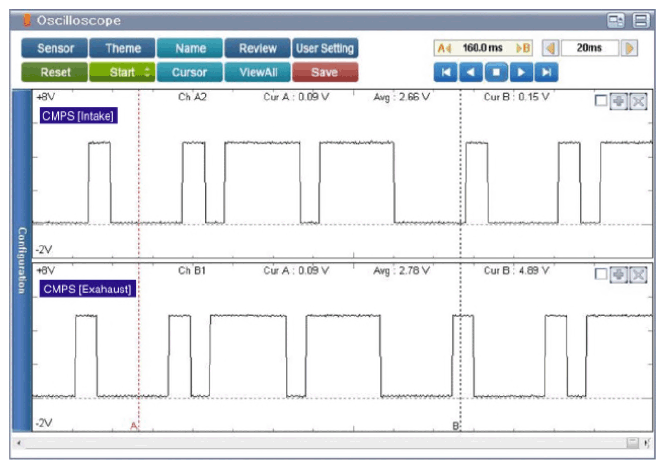

There is no separate sensor inside E-CVVT. Exhaust side 4-flank type target wheel is applied in order to compare CKPS and CMPS and calculate the valve timing.
