Tailgate Open Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the back view camera assembly.

    (Refer to Body Electrical System - "BACK VIEW CAMERA SYSTEM ")

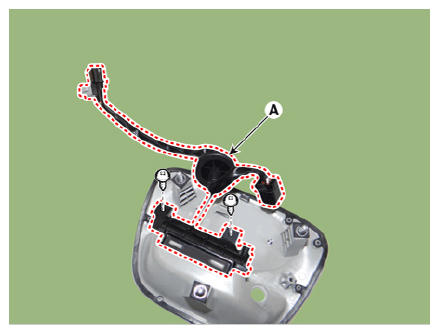

  3. Remove the tailgate open switch assembly (A) after loosening the mounting screws.
    G13417732Courtesy of KIA MOTORS AMERICA, INC.
