Repair Procedures: Disassembly

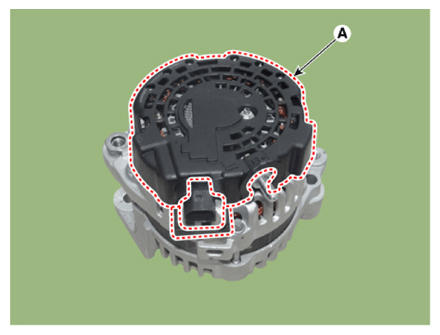

  1. Remove The Rear Cover (A).
    G13412141Courtesy of KIA MOTORS AMERICA, INC.
    G13412142Courtesy of KIA MOTORS AMERICA, INC.

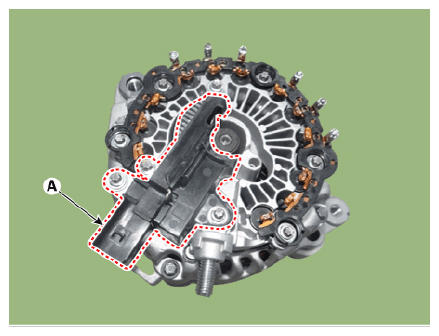

  2. Remove The Mounting Bolts (A) And The Regulator Assembly.
    NOTE:
    • When Installing, Replace With New Oap Cap.
    G13412143Courtesy of KIA MOTORS AMERICA, INC.

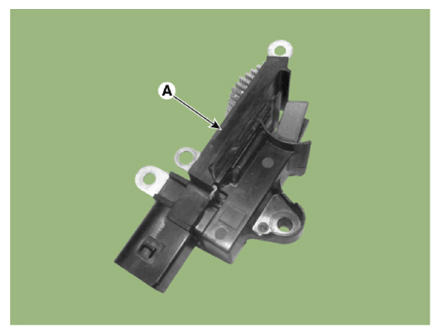

    G13412144Courtesy of KIA MOTORS AMERICA, INC.

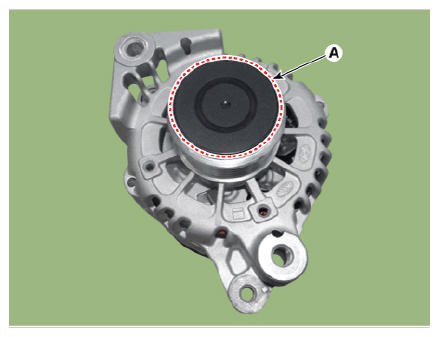

  3. Remove The Oap Cap.
    G13412145Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • When Installing, Replace With New Oap Cap.

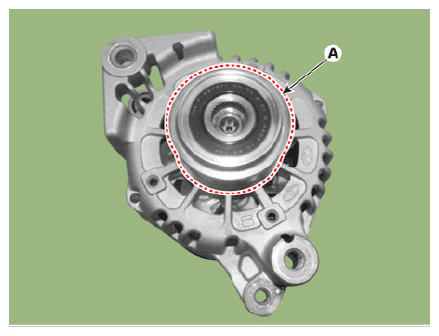

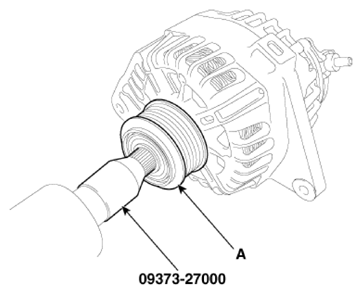

  4. Remove The Oap Pulley (A) Using The Special Tool (09373-27000).
    G13412146Courtesy of KIA MOTORS AMERICA, INC.
    G13412147Courtesy of KIA MOTORS AMERICA, INC.

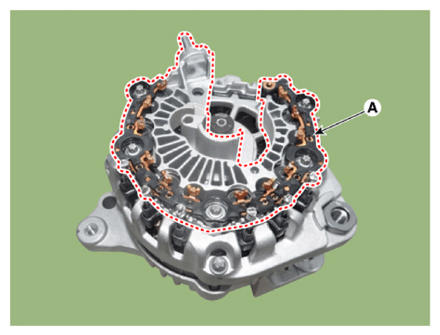

  5. Remove The Rectifier Assembly (A) After Disconnecting The Stator Leads.
    G13412148Courtesy of KIA MOTORS AMERICA, INC.

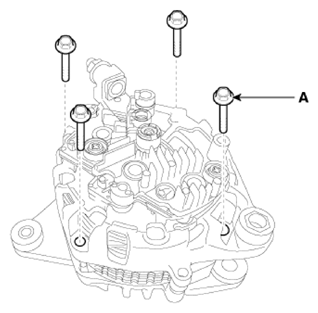

  6. Remove The 4 Through Bolts (A).
    G13412149Courtesy of KIA MOTORS AMERICA, INC.

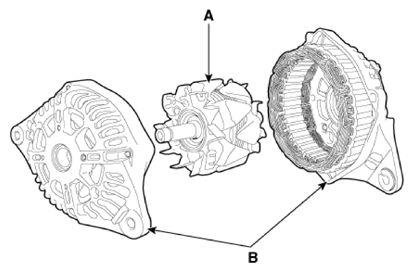

  7. Disconnect The Rotor (A) And Bracket (B).
    G13412150Courtesy of KIA MOTORS AMERICA, INC.
  8. Install In The Reverse Order Of Removal.
