Home >> Kia >> 2020 >> Sorento EX, 4WD >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer Assembly >> Front Wheel Transfer Assembly >> Components And Components Location >> Components Location

Components Location

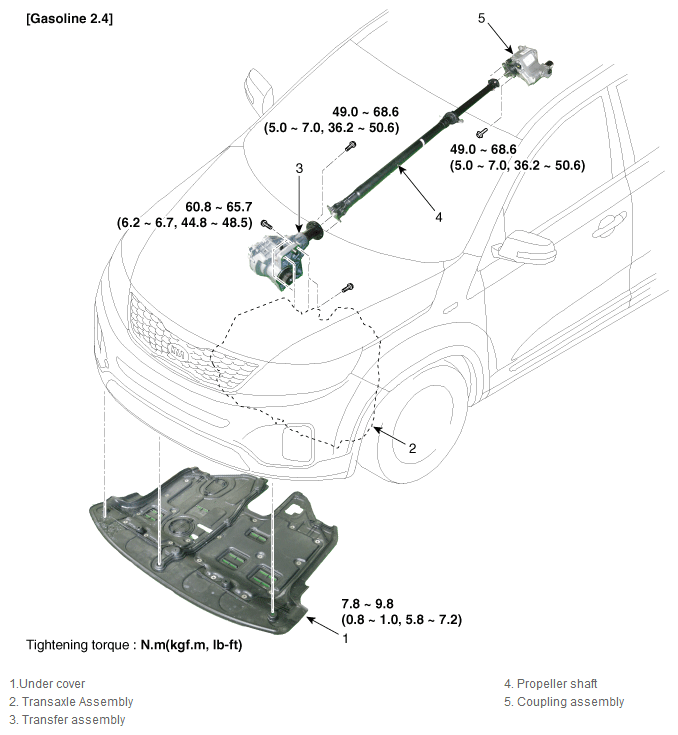

Fig 1: Front Wheel Transfer Assembly Components With Torque Specification (1 Of 2)
G12850346Courtesy of KIA MOTORS AMERICA, INC.

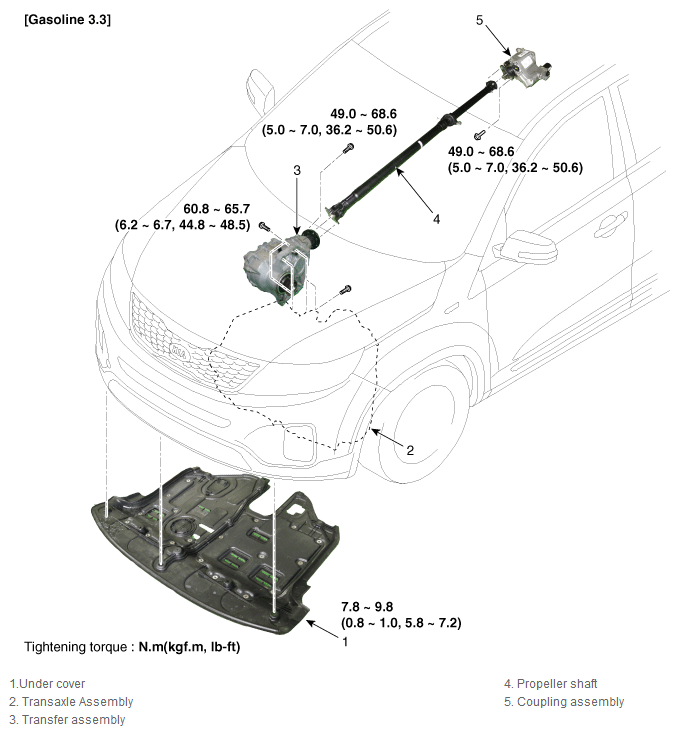

Fig 2: Front Wheel Transfer Assembly Components With Torque Specification (2 Of 2)
G12850347Courtesy of KIA MOTORS AMERICA, INC.
