Neutralization Status Check

Connect the cable of KDS to the data link connector in driver side crash pad lower panel.

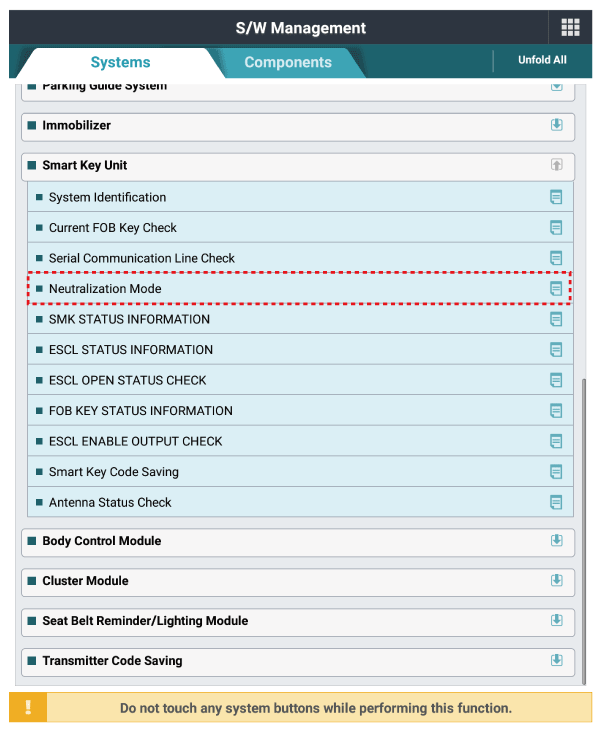

After IG ON, select the "Neutralization mode".

G12884890

Courtesy of KIA MOTORS AMERICA, INC.

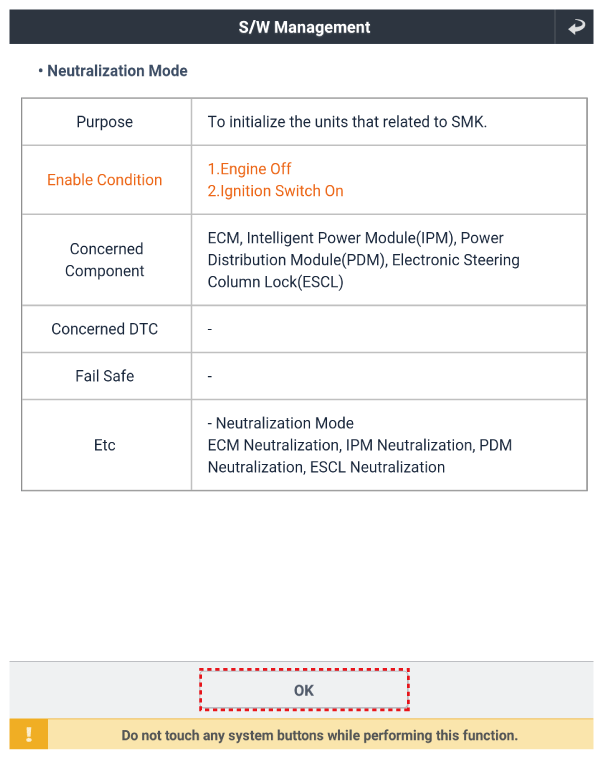

G12884891

Courtesy of KIA MOTORS AMERICA, INC.

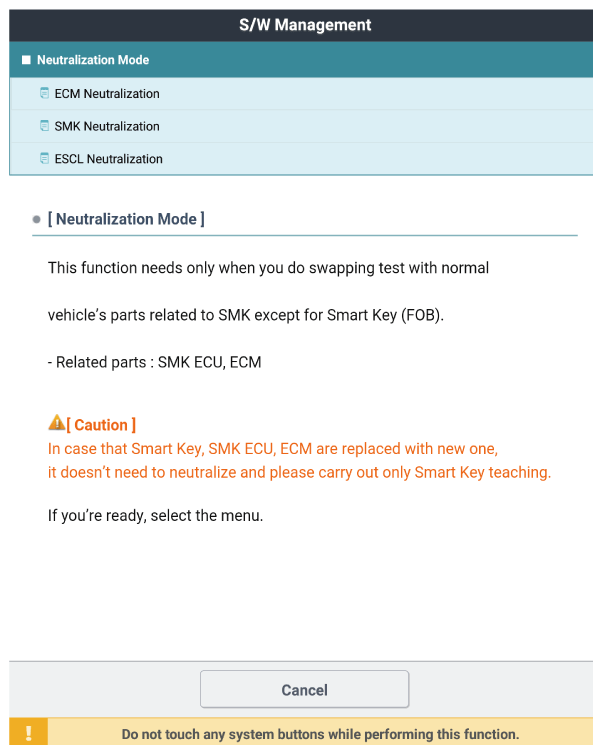

G12884892

Courtesy of KIA MOTORS AMERICA, INC.

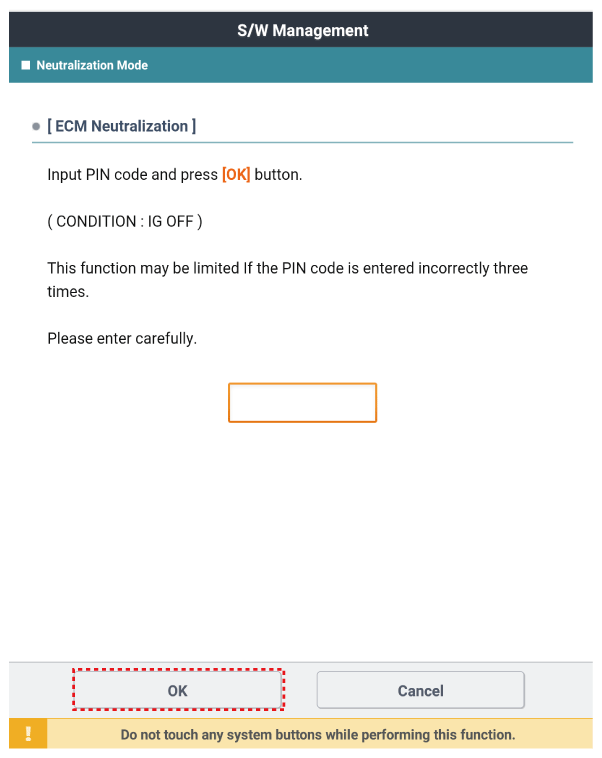

G12884893

Courtesy of KIA MOTORS AMERICA, INC.

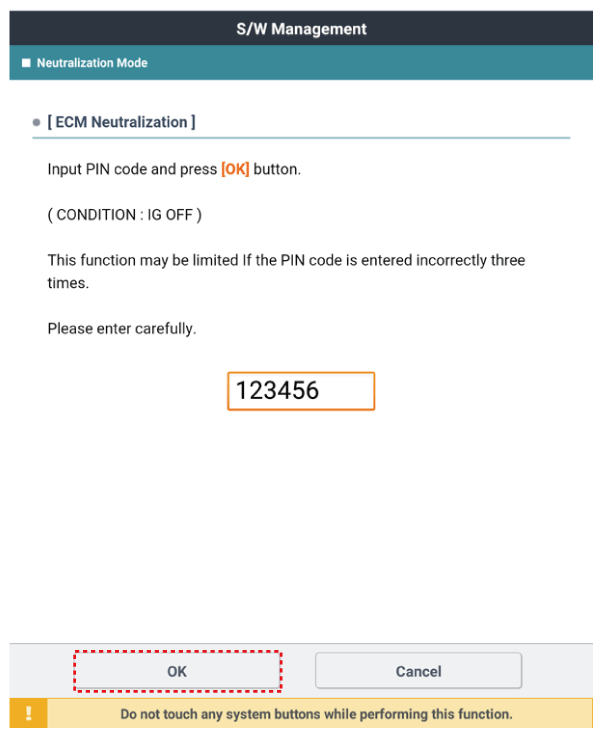

G12884894

Courtesy of KIA MOTORS AMERICA, INC.

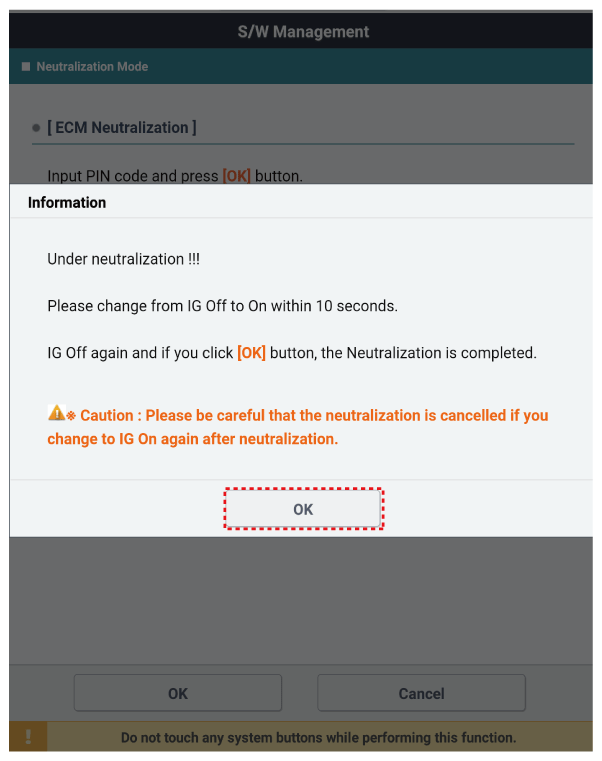

G12884895

Courtesy of KIA MOTORS AMERICA, INC.

G12884896

Courtesy of KIA MOTORS AMERICA, INC.

G12884897

Courtesy of KIA MOTORS AMERICA, INC.

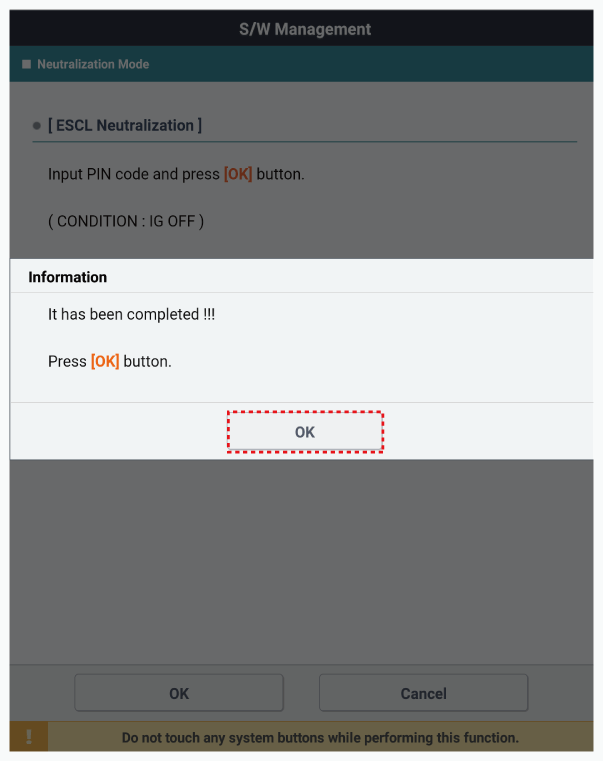

G12884898

Courtesy of KIA MOTORS AMERICA, INC.

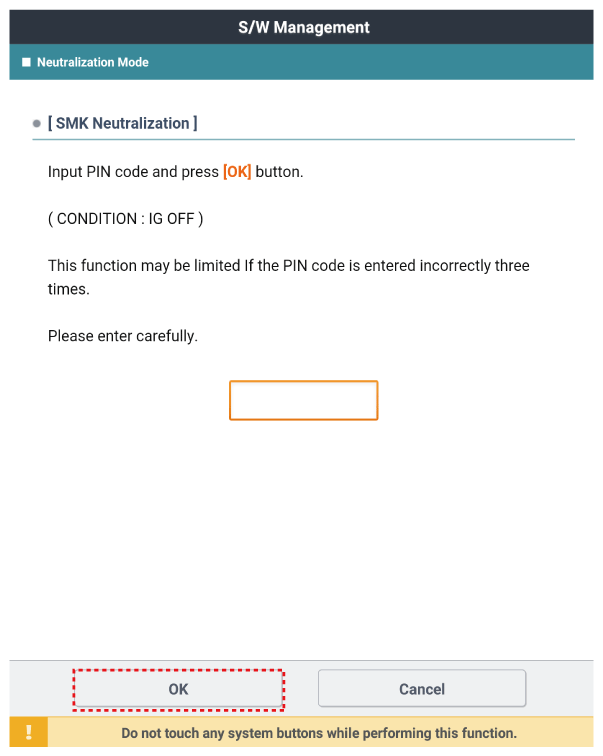

G12884899

Courtesy of KIA MOTORS AMERICA, INC.

G12884900

Courtesy of KIA MOTORS AMERICA, INC.

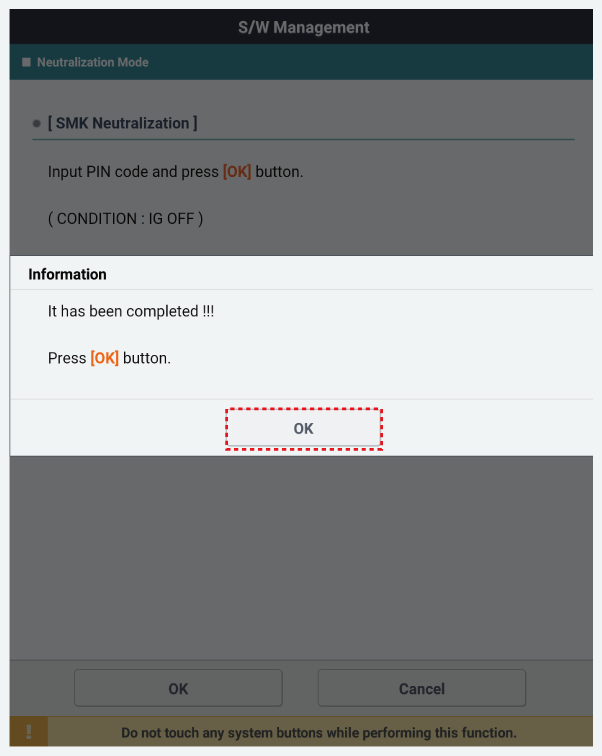

G12884901

Courtesy of KIA MOTORS AMERICA, INC.
