Smart Key Code Saving

  1. Connect the DLC cable of KDS to the data link connector (16 pins) in driver side crash pad lower panel, and then turn the power on KDS.
    G12884902Courtesy of KIA MOTORS AMERICA, INC.
  2. Select the vehicle model and then do "Smart key code saving".

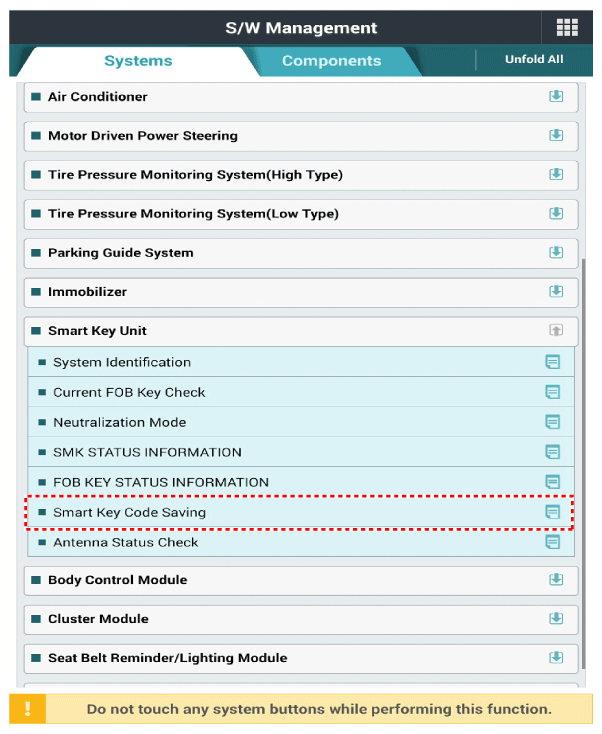

    G12884903Courtesy of KIA MOTORS AMERICA, INC.

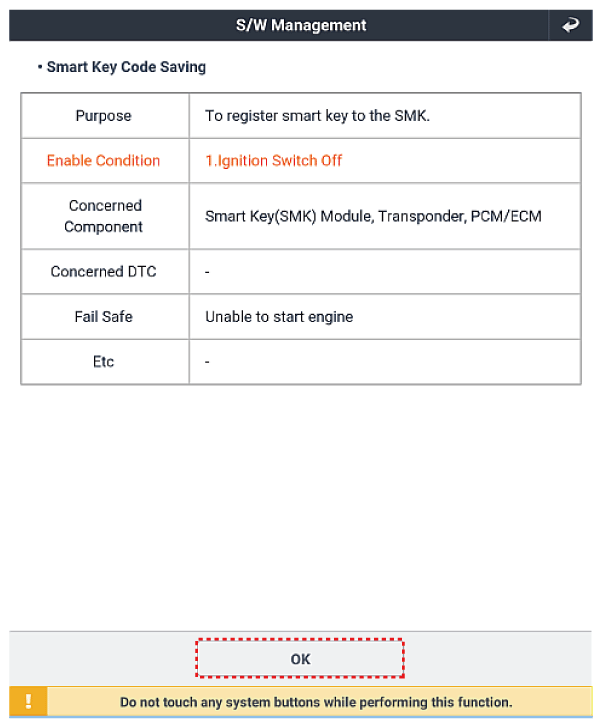

    G12884904Courtesy of KIA MOTORS AMERICA, INC.

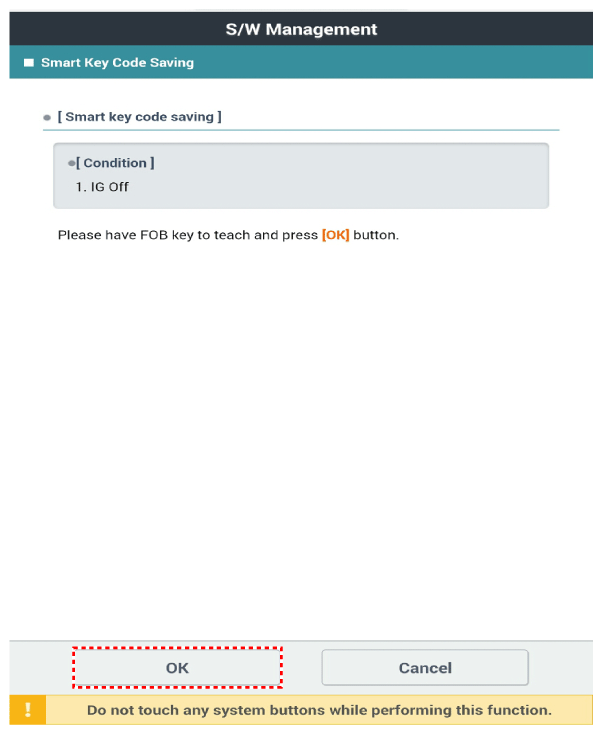

  3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be as shown in the illustration below.
    G12884905Courtesy of KIA MOTORS AMERICA, INC.
  4. After having the teaching smart key, push "ENTER" key.

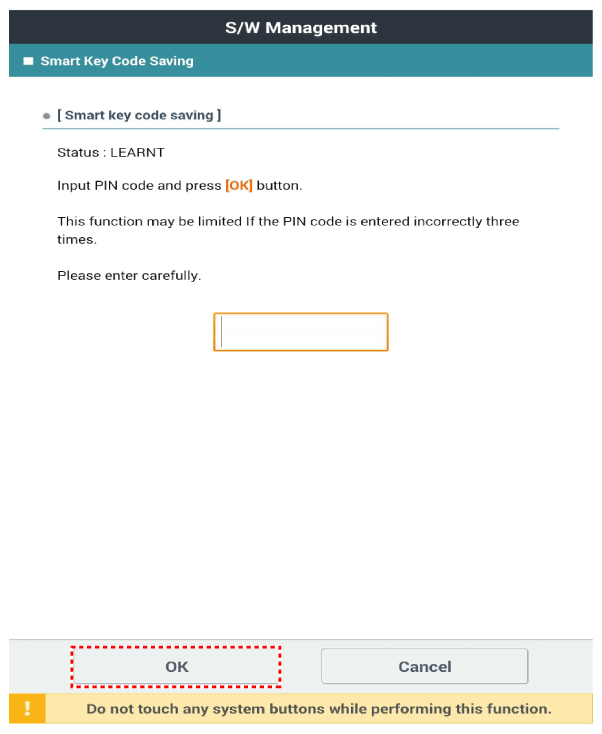

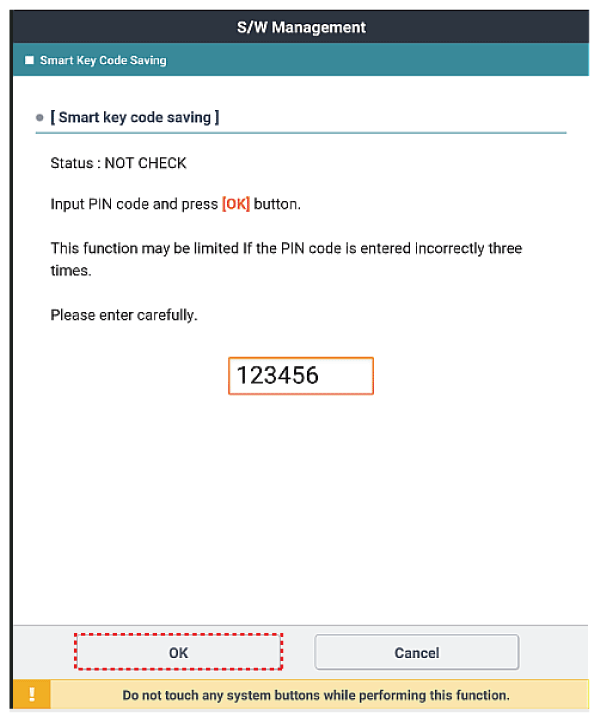

  5. Input the "Pin code" for first key teaching.
    G12884906Courtesy of KIA MOTORS AMERICA, INC.
    G12884907Courtesy of KIA MOTORS AMERICA, INC.

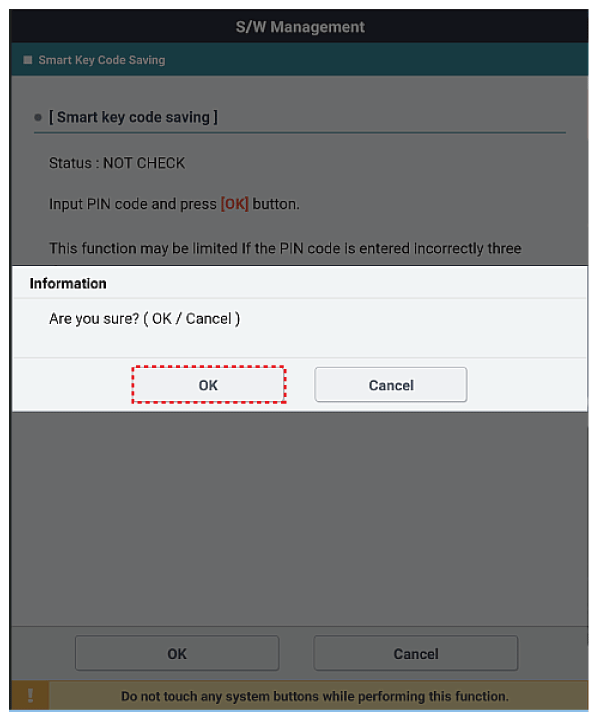

    G12884908Courtesy of KIA MOTORS AMERICA, INC.

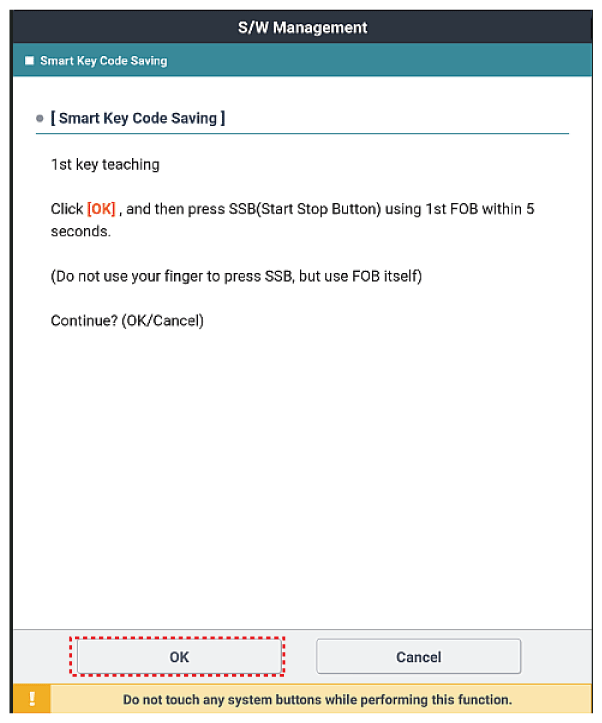

  6. Confirm the message "First key teaching completed".
    G12884909Courtesy of KIA MOTORS AMERICA, INC.

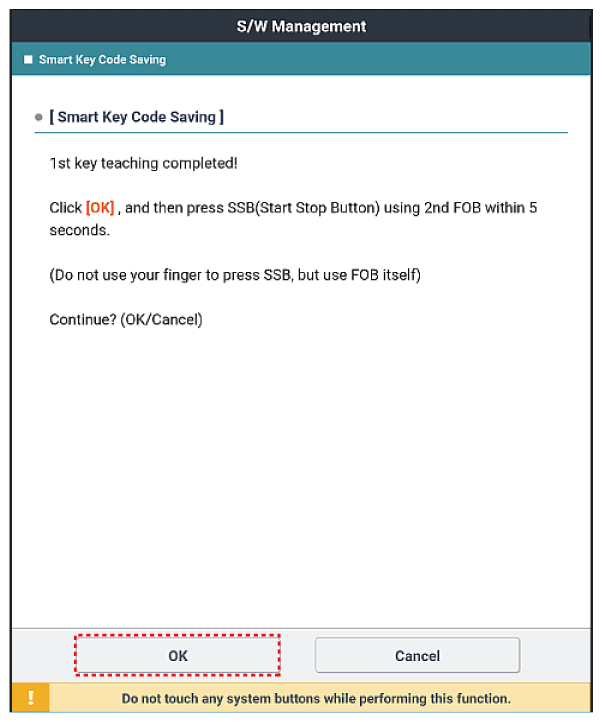

  7. Press the SSB with smart key within 5 sec after pressing "OK".
    G12884910Courtesy of KIA MOTORS AMERICA, INC.

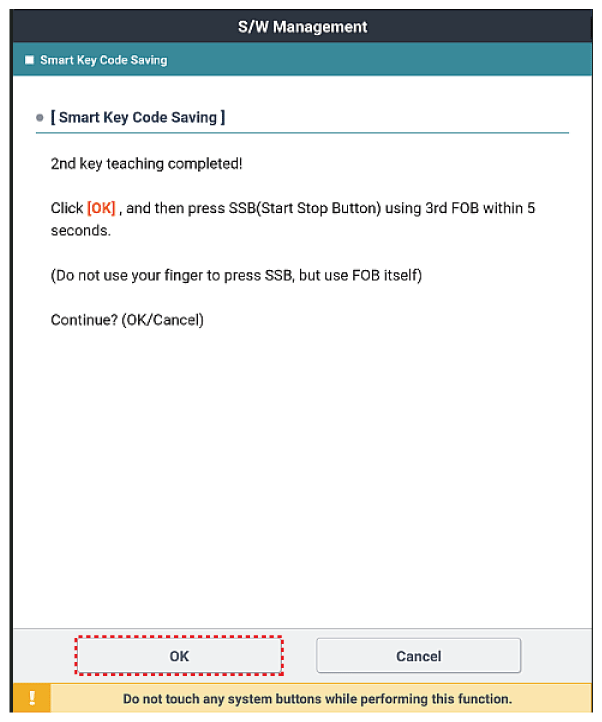

  8. Confirm the message "Second key teaching completed".
    G12884911Courtesy of KIA MOTORS AMERICA, INC.
    G12884912Courtesy of KIA MOTORS AMERICA, INC.

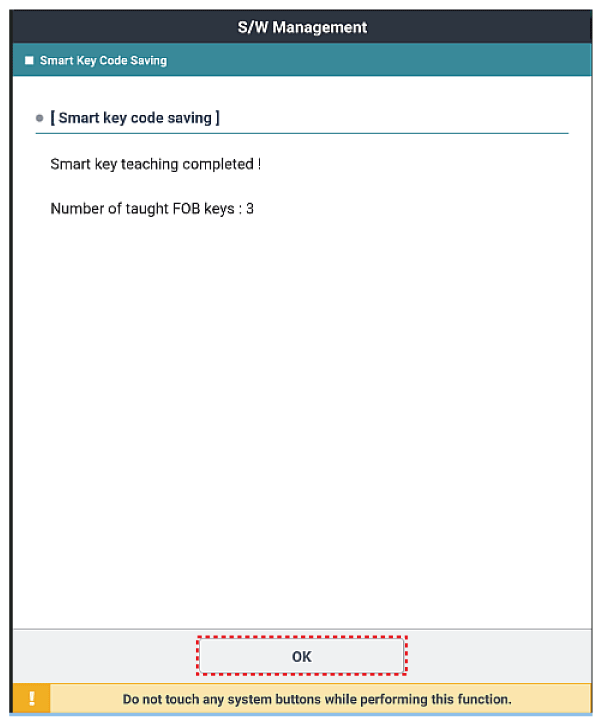

  9. Then the screen will be as shown in the illustration below when key teaching process is completed.
G12884913Courtesy of KIA MOTORS AMERICA, INC.
