Home >> Kia >> 2021 >> Forte EX >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart Key Unit >> Repair Procedures >> Inspection >> Smart Key Neutralization

Smart Key Neutralization

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "Neutralization mode".

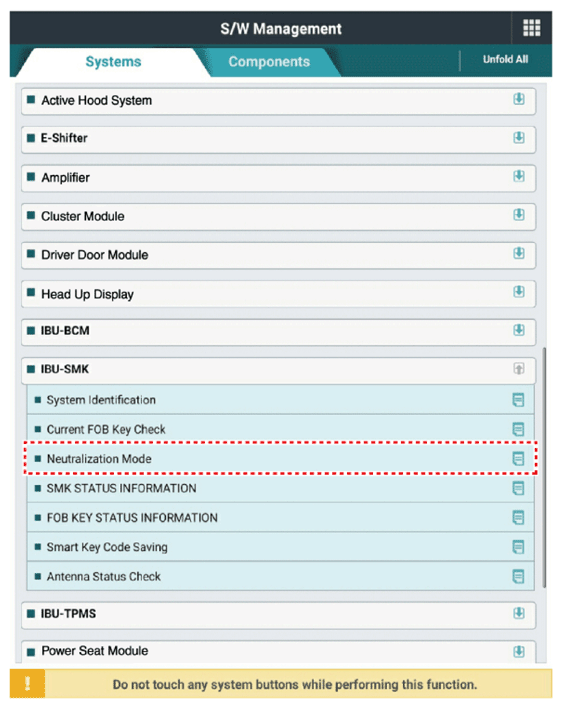

    G13306299Courtesy of KIA MOTORS AMERICA, INC.

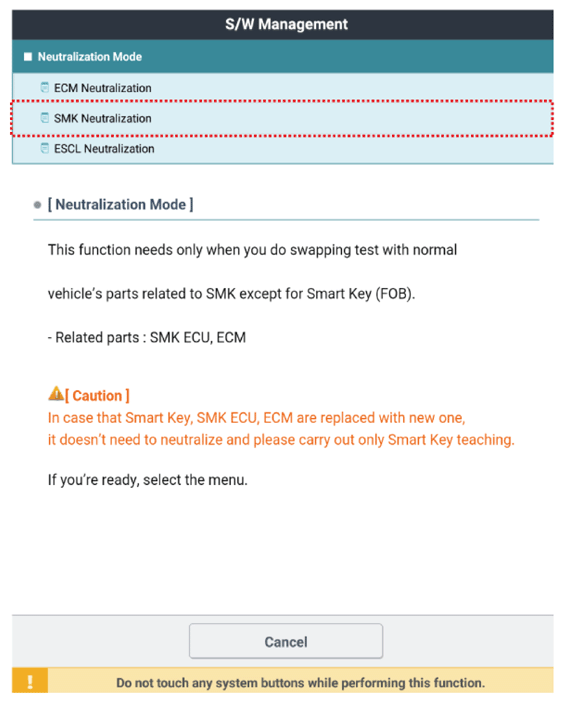

    G13306300Courtesy of KIA MOTORS AMERICA, INC.

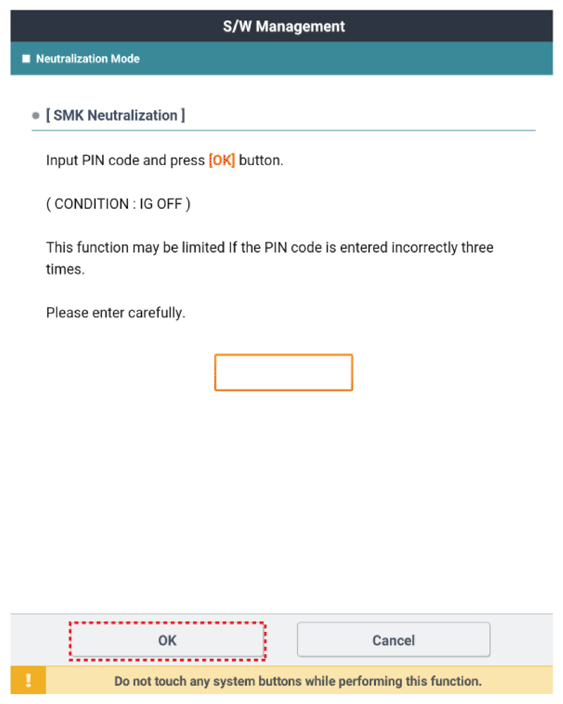

    G13306301Courtesy of KIA MOTORS AMERICA, INC.

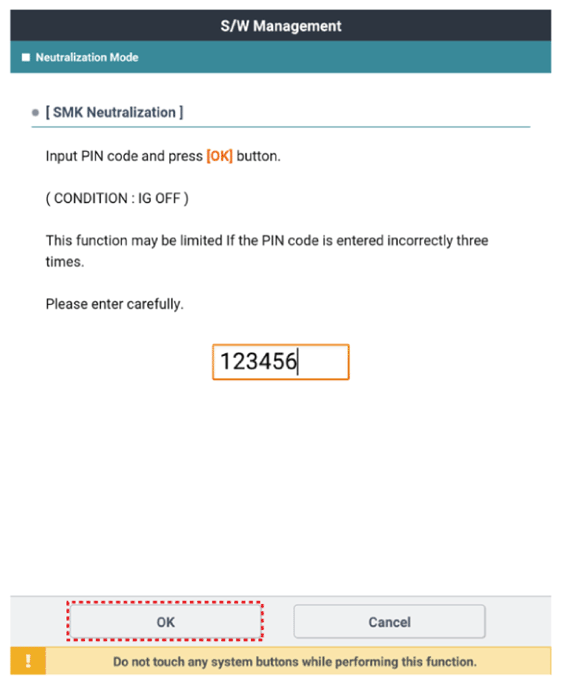

    G13306302Courtesy of KIA MOTORS AMERICA, INC.

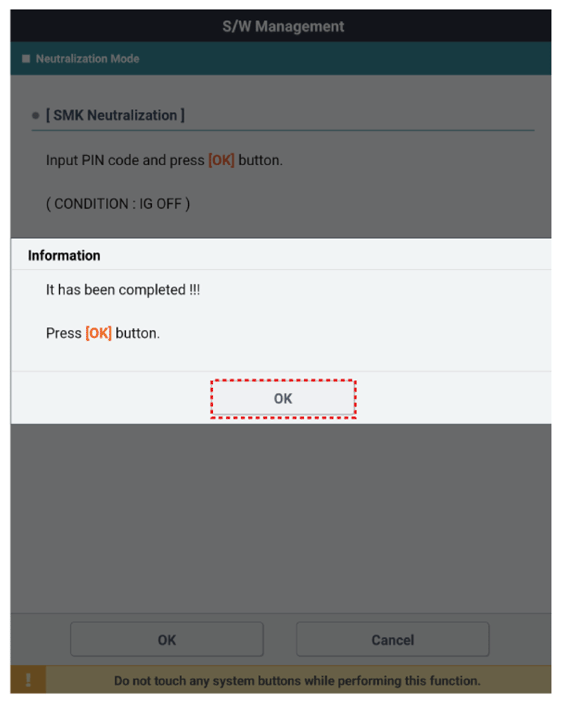

    G13306303Courtesy of KIA MOTORS AMERICA, INC.
