Home >> Kia >> 2021 >> Forte EX >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Ignition Switch Assembly >> Ignition Switch >> Repair Procedures >> Inspection

Repair Procedures: Inspection

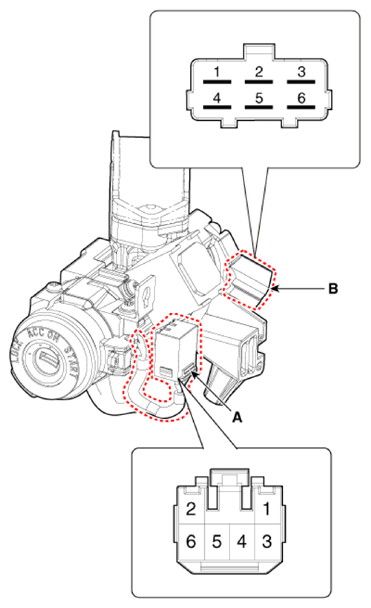

  1. Disconnect the ignition switch connector (A) and key warning switch connector (B) from under the steering column.
    G13305944Courtesy of KIA MOTORS AMERICA, INC.

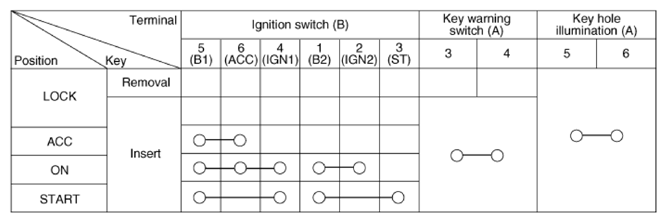

  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.
    G13305945Courtesy of KIA MOTORS AMERICA, INC.
