Repair Procedures: Disassembly

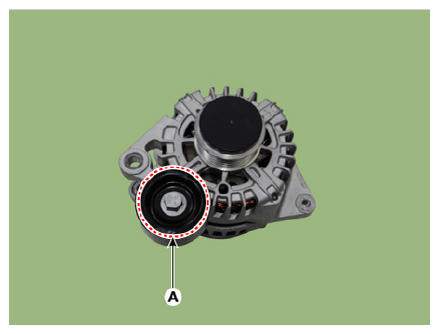

  1. Remove the pulley (A) after loosening the mounting bolt.
    G13306906Courtesy of KIA MOTORS AMERICA, INC.

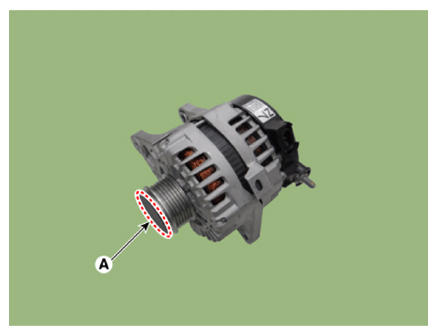

  2. Remove the OAP cap (A).
    G13306907Courtesy of KIA MOTORS AMERICA, INC.

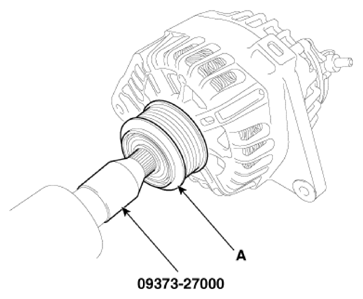

  3. Using the SST (09373-27000), remove the OAP pulley (A).
    G13306908Courtesy of KIA MOTORS AMERICA, INC.

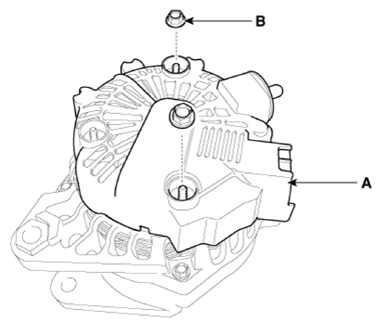

  4. Remove the rear cover (A) after removing nuts (B).
    G13306909Courtesy of KIA MOTORS AMERICA, INC.

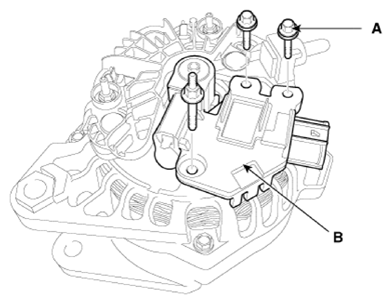

  5. Remove the mounting bolts (A) and the regulator assembly (B).
    G13306910Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the slip ring guide (A) after pulling it.
    G13306911Courtesy of KIA MOTORS AMERICA, INC.
  7. Unsolder the 3 stator leads (A).
    G13306912Courtesy of KIA MOTORS AMERICA, INC.

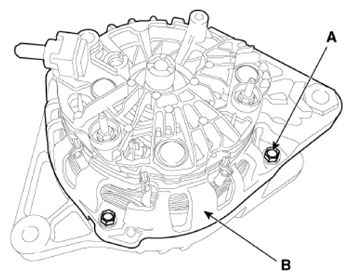

  8. Remove the 4 through bolts (A).
    G13306913Courtesy of KIA MOTORS AMERICA, INC.

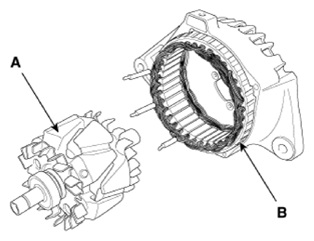

  9. Disconnect the rotor (A) and housing (B).
    G13306914Courtesy of KIA MOTORS AMERICA, INC.
