Home >> Kia >> 2021 >> Forte EX >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Timing System - 2.0L >> Timing Chain >> Components And Components Location >> Components

Components And Components Location: Components

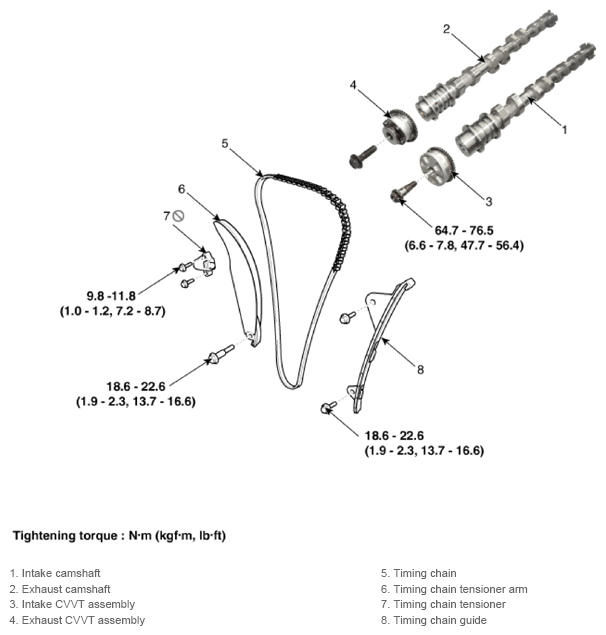

Fig 1: Timing Chain Components With Torque Specification

G13306854

Courtesy of KIA MOTORS AMERICA, INC.
