Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

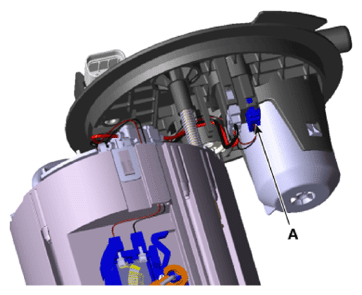

  2. Disconnect the fuel sender connector (A).
    G13307246Courtesy of KIA MOTORS AMERICA, INC.

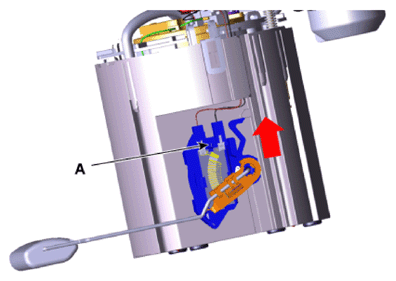

  3. Remove the fuel sender (A) in the direction of an arrow.
    G13307247Courtesy of KIA MOTORS AMERICA, INC.

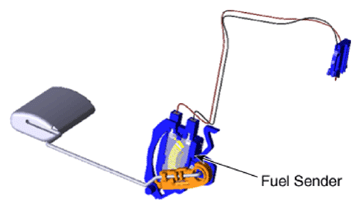

    G13307248Courtesy of KIA MOTORS AMERICA, INC.
