Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Wear gloves to protect hands from injury.

Information

When removing and installing the tailgate, an assistant is necessary.

Remove the tailgate upper trim.
(Refer to Tailgate - "TAILGATE TRIM ")

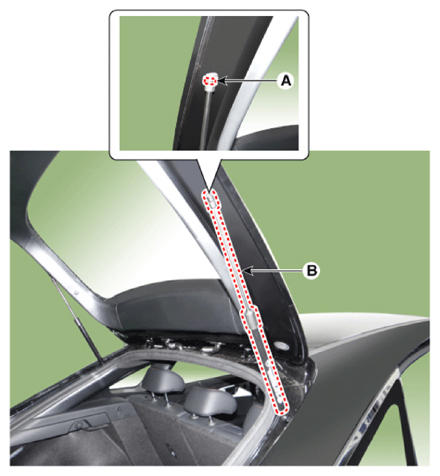

Using a screwdriver, lift the socket clips (A) up slightly on both ends of the liftgate lifter (B).

Courtesy of KIA MOTORS AMERICA, INC.

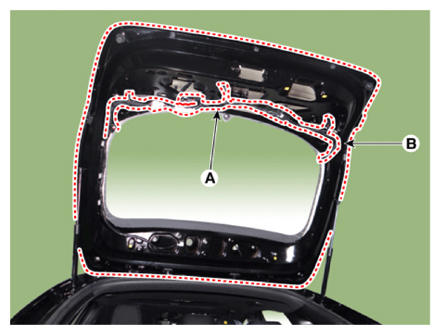

Disconnect the connectors and liftgate wiring harness (A).
After loosening the mounting bolts, then remove the liftgate assembly (B).
Tightening torque:

21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.
Information
- Replace any damaged clips (or retainers or fasteners)
- Make sure the hood latch release cable is connected properly.
- Make sure the hood locks/unlocks and opens/closes properly.
- Adjust the latch alignment.
