Multifunction Switch Inspection

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

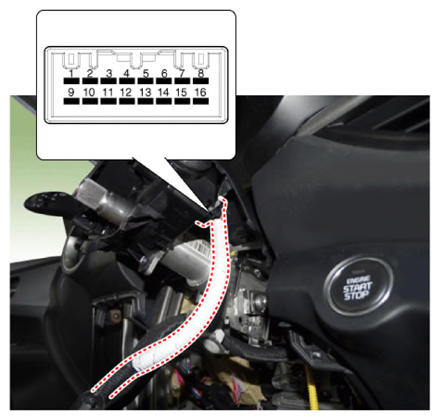

Check for continuity between the terminals in each switch position according to the table.

Courtesy of KIA MOTORS AMERICA, INC.

Switch	Switch position	Switch terminal	Resistance (Ω, ±3.5%)
Wiper switch	MIST	1-9	330
	OFF		∞
	INT (AUTO)		800
	LOW		1800
	HIGH		5700
Wiper intermittent volume	Volume 1	7-9	330
	Volume 2		690
	Volume 3		1310
	Volume 4		2610
	Volume 5		7310
Fog lamp switch	OFF	9-10	∞
	Front		910
	Rear		2910
Turn signal switch	OFF	9-12	∞
	Left		910
	Right		2910
Dimmer & Passing switch	OFF	9-13	∞
	Passing		910
	Dimmer		2910
Light switch	OFF	9-14	680
	AUTO		∞
	Tail lamp		1680
	Low beam		5580
