Components & Components Location: Components

WARNING: This page is about a different variant/trim than selected.

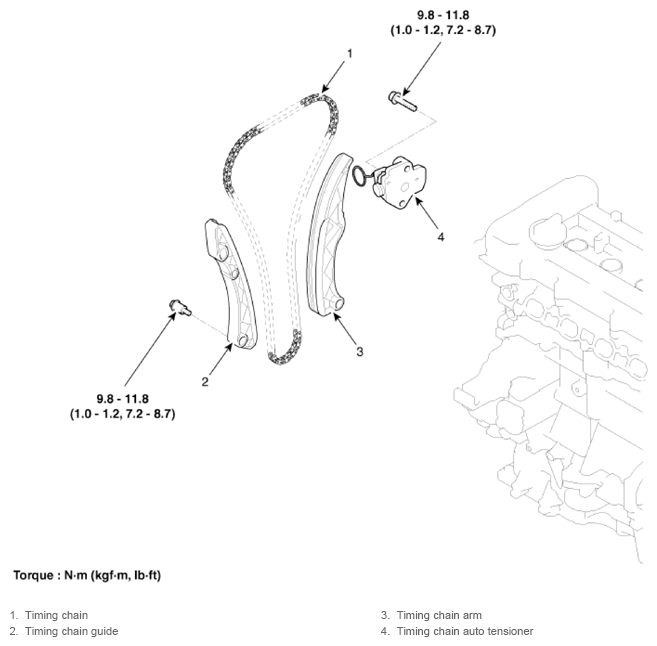

Fig 1: Timing Chain Components With Torque Specification
G13303482Courtesy of KIA MOTORS AMERICA, INC.
