Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

Install using the procedure as follows.

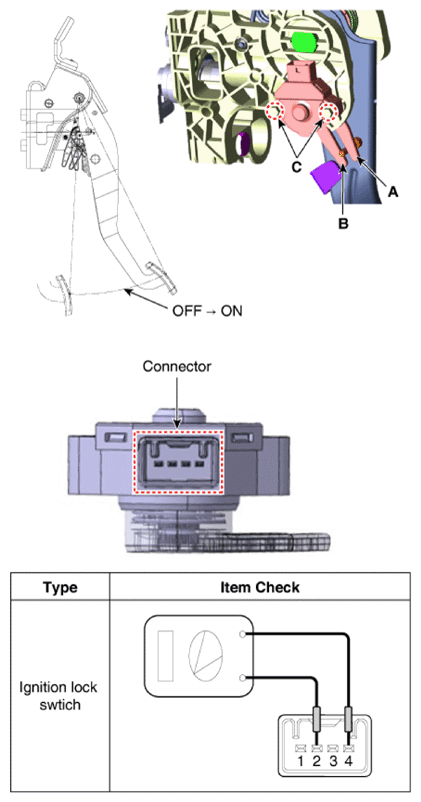

* How to install the ignition lock & clutch switch
1. After inserting the switch lever (A) into the clutch pedal pin (B), pre-tighten the switch mounting bolt (C).
2. Set the clutch switches so as to confirm that the electric current is applied to the pins (2) and (4).
3. Fix the clutch pedal to the ignition lock switch OFF→ON strokes (D).
4. With the pedal fixed, rotate the switch clockwise and counter-clockwise to set it to a position at the transition from OFF to ON. Then, tighten the mounting bolt (C) to the specified torque.
5. Once completing the assembly, check again that the switch is correctly operating.
OFF → ON Position (D)

127.5 ± 7.7 mm (5.0197 ± 0.3031 in.)

Tightening torque:

2.0 - 5.9 N.m (0.2 - 0.6 kgf.m, 1.4 - 4.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
