Home >> Kia >> 2021 >> Forte FE, Standard Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Manual Transaxle Control System - 2.0L >> Shift Lever >> Components And Components Location >> Components

Components And Components Location: Components

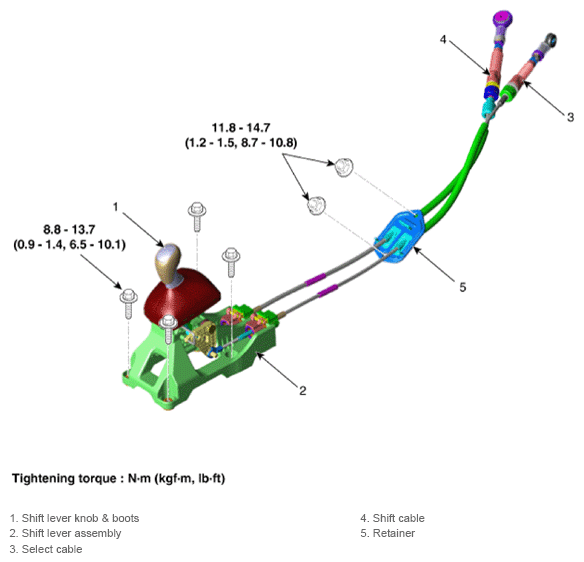

Fig 1: Shift Lever Components Location With Torque Specification

G13307279

Courtesy of KIA MOTORS AMERICA, INC.
