Home >> Kia >> 2021 >> Forte GT Line >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Button Engine Start System >> Start-Stop Button >> Schematic Diagrams >> Connector And Terminal Function

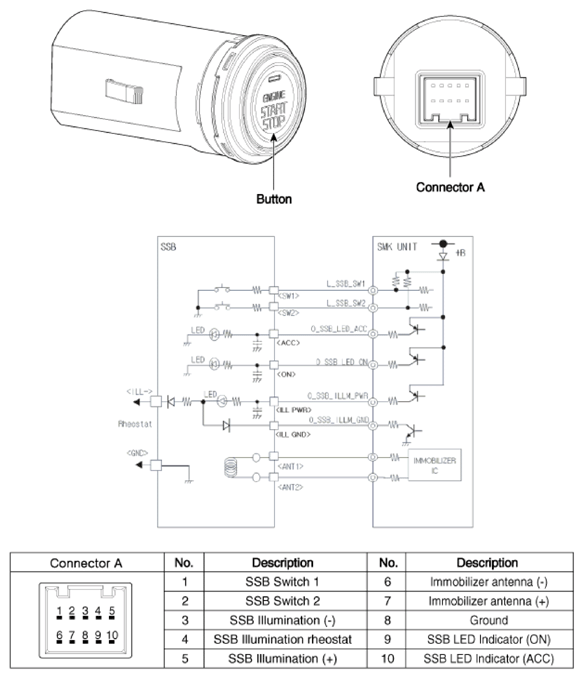

Connector And Terminal Function

G13305829Courtesy of KIA MOTORS AMERICA, INC.
