Home >> Kia >> 2021 >> Forte GT, Standard Trans >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System - 1.6L >> Alternator >> Components & Components Location >> Components

Components & Components Location: Components

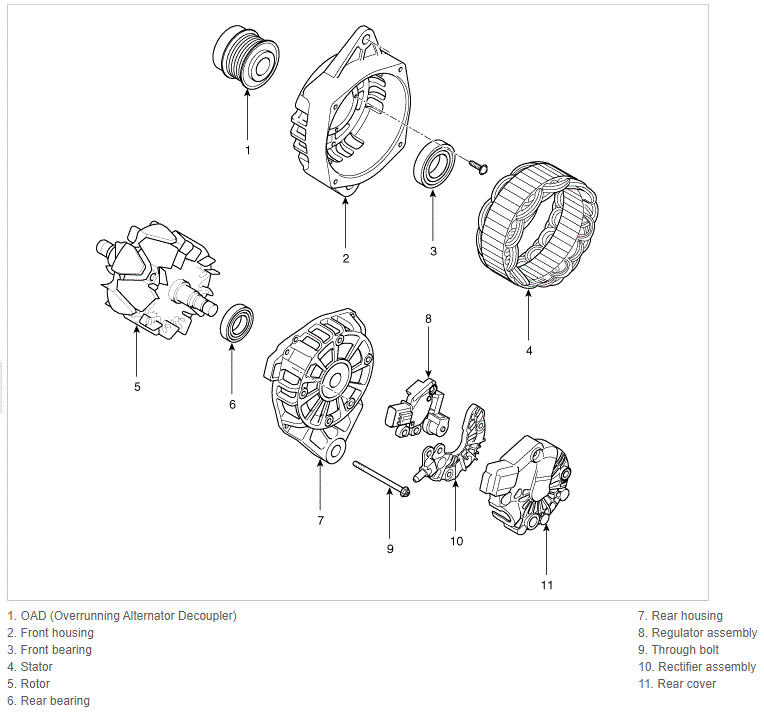

Fig 1: Alternator Exploded View
G13303527Courtesy of KIA MOTORS AMERICA, INC.
