Rear Power Window Motor

1. Disconnect the negative battery terminal.
2. Remove the rear door trim.

   (Refer to " Replacement  ")

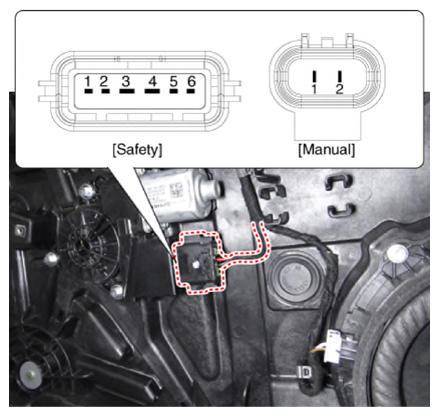

3. Disconnect the connector from the motor.

   Courtesy of KIA MOTORS AMERICA, INC.

4. Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.

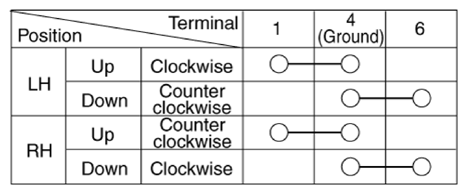

[Safety window motor]

Courtesy of KIA MOTORS AMERICA, INC.

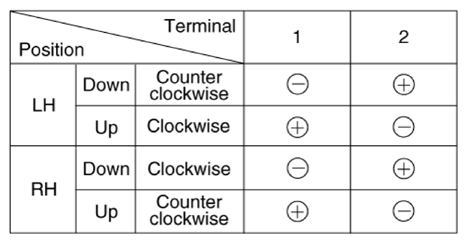

[Standard window motor]

Courtesy of KIA MOTORS AMERICA, INC.
