Home >> Kia >> 2021 >> K5 EX >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Switch >> Repair Procedures >> Removal >> Power Window Main Switch

Power Window Main Switch

  1. Disconnect the negative battery terminal.
  2. Remove the driver side front door trim.

    (Refer to " Replacement  ")

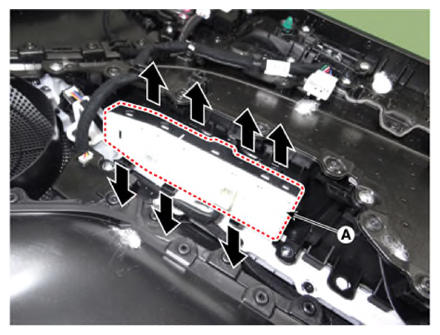

  3. Remove the power window main switch (A) by pushing the holders in the direction of arrow.
G13836235Courtesy of KIA MOTORS AMERICA, INC.
