Repair Procedures: Installation

CAUTION: Put on gloves to prevent hand injuries.

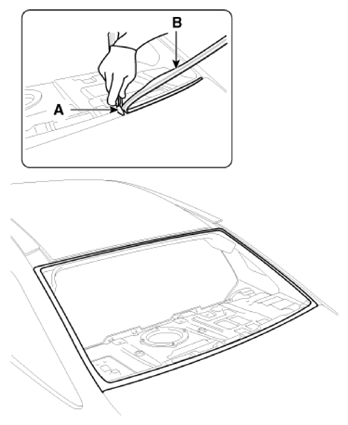

Using a cutting knife (A), remove the remaining sealant (B) on the body panel.

Courtesy of KIA MOTORS AMERICA, INC.

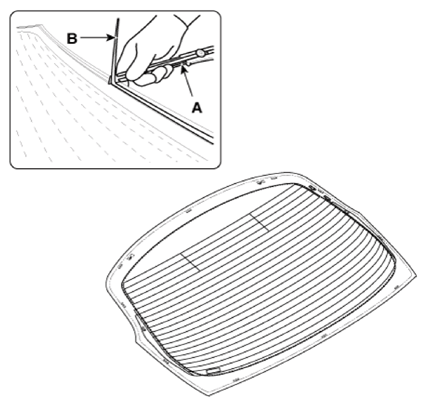

Using a cutting knife (A), remove the remaining sealant (B) on the rear window glass.

Courtesy of KIA MOTORS AMERICA, INC.

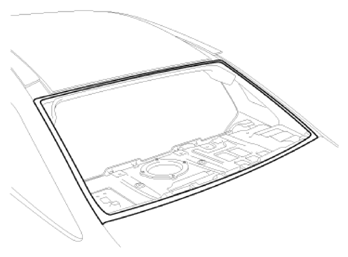

Apply a body primer to the edge of the body panel.
Information
- Be careful not to touch the surface covered with the primer because touching it may lead to water leaks after installing the windshield glass.
- Do not apply the body primer to the glass.
- Remove any foreign materials from the primer-covered surface.
Courtesy of KIA MOTORS AMERICA, INC.

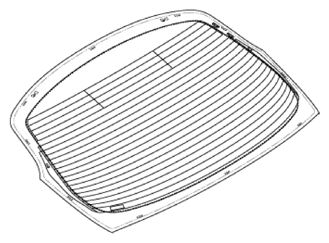

Apply the glass primer to the outer edge of rear window glass.
Information
- Do not apply the body primer to the glass.
- Remove any foreign materials from the primer-covered surface.
Courtesy of KIA MOTORS AMERICA, INC.

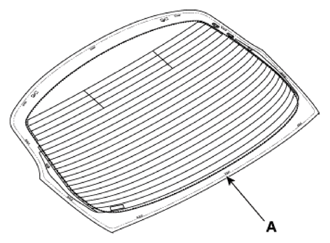

Install the rear window glass molding (A).

Courtesy of KIA MOTORS AMERICA, INC.

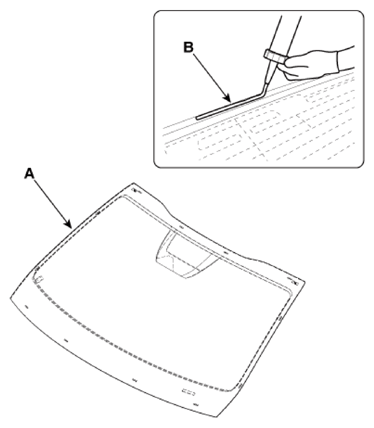

Using a sealant gun, apply the sealant (B) to the edge of rear window glass (A).

Courtesy of KIA MOTORS AMERICA, INC.

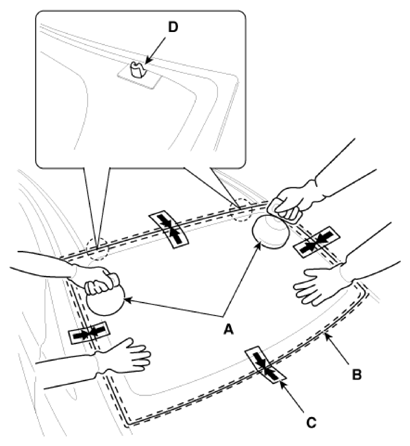

Using the glass holder (A), adjust the rear window glass (B) to fit the alignment marks (C) on the body and lightly push the windshield glass to make the edges fully seated on the bonding surface of body
Information

When installing the rear window glass (B), be sure to fit the protruding part (D) on the reverse side of the glass into the groove on the body frame.

Courtesy of KIA MOTORS AMERICA, INC.
Conduct a leak test
NOTE:
- Do not directly spray the high-pressure water to the joint area.
- If driving the car is inevitable, drive at a low speed for at least 8 hours.
- Advise the driver to avoid aggressive driving or driving on rough roads for 2-3 days after installing the rear window glass.
Courtesy of KIA MOTORS AMERICA, INC.
If a leak occurs, apply the sealant to the area where the leak occurs.

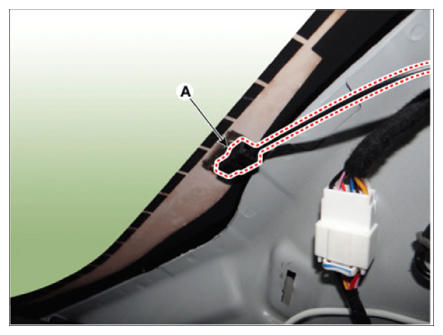

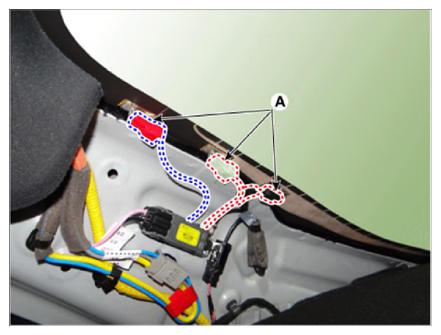

Install the hot wire connectors (A).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.
Install the roof side molding.
(Refer to " Replacement ")
Install the rear package tray trim.
(Refer to " Replacement ")
