Repair Procedures: Removal

CAUTION: Put on gloves to prevent hand injuries.

NOTE: Be careful not to damage the paintwork.

Remove the roof side molding.
(Refer to " Replacement ")
Remove the rear package tray trim.
(Refer to " Replacement ")

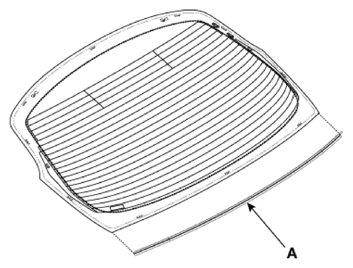

Using a cutting knife, remove the rear window glass molding (A).

Courtesy of KIA MOTORS AMERICA, INC.

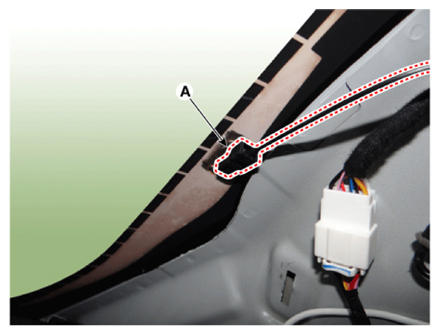

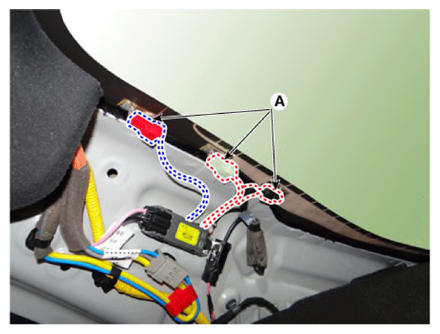

Separate the hot wire connectors (A).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.
Spread WD-40 on the outer edges of rear window glass.
Cut off the sealant on the edge (B) while pulling the piano wire (A) to the left and right.
CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
Courtesy of KIA MOTORS AMERICA, INC.
Put in a piano wire (A) through the corner of the windshield glass and insert wire grips into both ends of the wire.

Courtesy of KIA MOTORS AMERICA, INC.

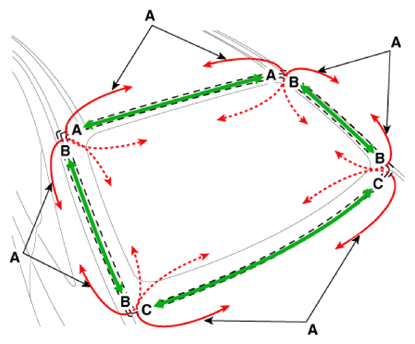

Cut off the sealant on (A-A), (B-B), (C-C), while pulling a piano wire (A) to the left and right.
CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
Courtesy of KIA MOTORS AMERICA, INC.

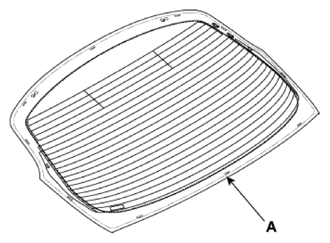

Carefully remove the rear window glass (A).

Courtesy of KIA MOTORS AMERICA, INC.
