Home >> Kia >> 2021 >> K5 EX >> Repair and Diagnosis >> Brakes >> Traction Control >> Electronic Stability Control (ESC) System >> Rear Wheel Speed Sensor >> Components And Components Location >> Components >> [AWD]

Components And Components Location: Components: [AWD]

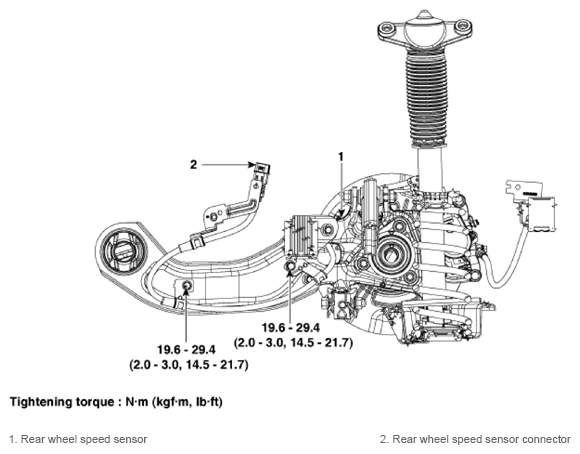

Fig 1: Rear Wheel Speed Sensor Components Location With Torque Specification (AWD)

G13835300

Courtesy of KIA MOTORS AMERICA, INC.
